i1046 (17AF9BKH056) - Cub Cadet 46" Zero-Turn Mower (2008 & After) Kohler SV710-0019 Engine Controls Parts Diagram

46" Zero-Turn Mower

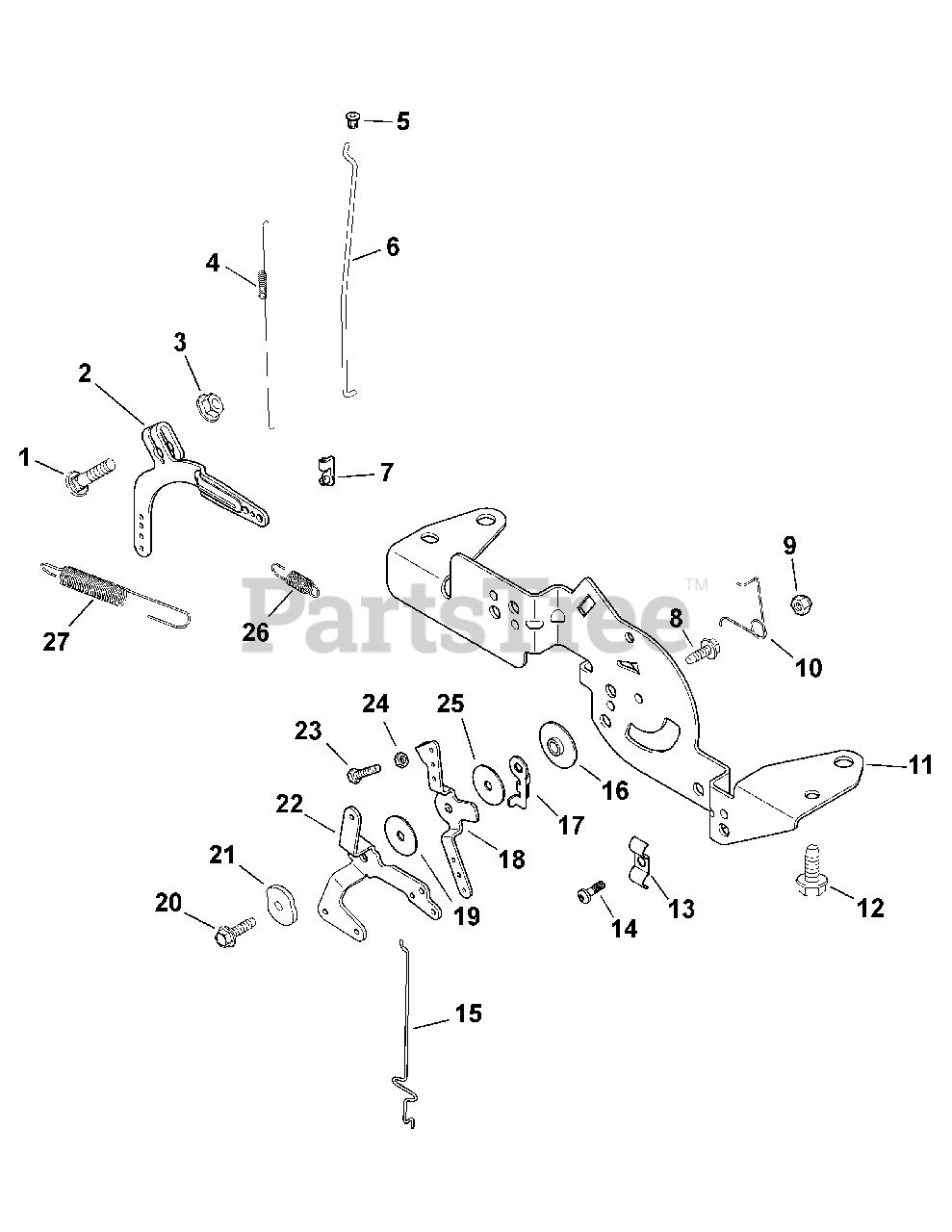

Kohler SV710-0019 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-24-211-03-S

Bolt, Carriage, M6 X 1.0 X 25

$2.99

$

In Stock, Qty 12

0

2

Cub Cadet KH-24-090-33-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-641060-S

Nut, Flange, M6 x 1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retainer

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-M-545016-S

Screw, Flng. Thrd. Frmng, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-M-547050-S

Nut, Lock, M5 x 0.8

$2.49

$

In Stock, Qty 16

0

10

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

11

KH24-126-161-S

Bracket, Control

$

$

Not available

12

Cub Cadet KH-M-645016-S

Screw, Flnge Thrd. Frmng M6 x 1.0 x 16

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet KH-47-237-02

Clamp, Dual Conduit
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-086-43-S

Screw, Torx Hd. Ctsk, M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-079-22-S

Linkage, Choke

$6.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-24-112-27-S

Spacer, Control Assembly

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-090-47-S

Lever, Throttle Actuator

$2.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-090-13

Lever, Throttle Control

$

$

Not available

19

Cub Cadet KH-24-468-01

Washer, Flat, 5.5mm

$

$

Not available

20

Cub Cadet KH-M-545020-S

Screw, Flng. Thrd. Frmng, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet KH-41-468-03

Washer, Spring, 1/4

$

$

Not available

22

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

23

Cub Cadet KH-M-403025

Screw, Hex Cap, M4 x 0.7 x 25

$

$

Not available

24

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-468-20-S

Washer, Flat, 5mm

$2.99

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-089-55-S

Spring, Governor

$2.49

$

In Stock, Qty 6

0

27

Cub Cadet KH-24-089-18

Spring, Governor, Model i1046 ONLY

$

$

Not available

27

Cub Cadet KH-24-089-25-S

Spring, Governor, Model i1050 ONLY

$15.99

$

Usually ships in 2-5 days

0
