i1050 (17AF9BKP756) - Cub Cadet 50" Zero-Turn Mower (2007 & Before) Steering Control & Front Axle Parts Diagram

50" Zero-Turn Mower

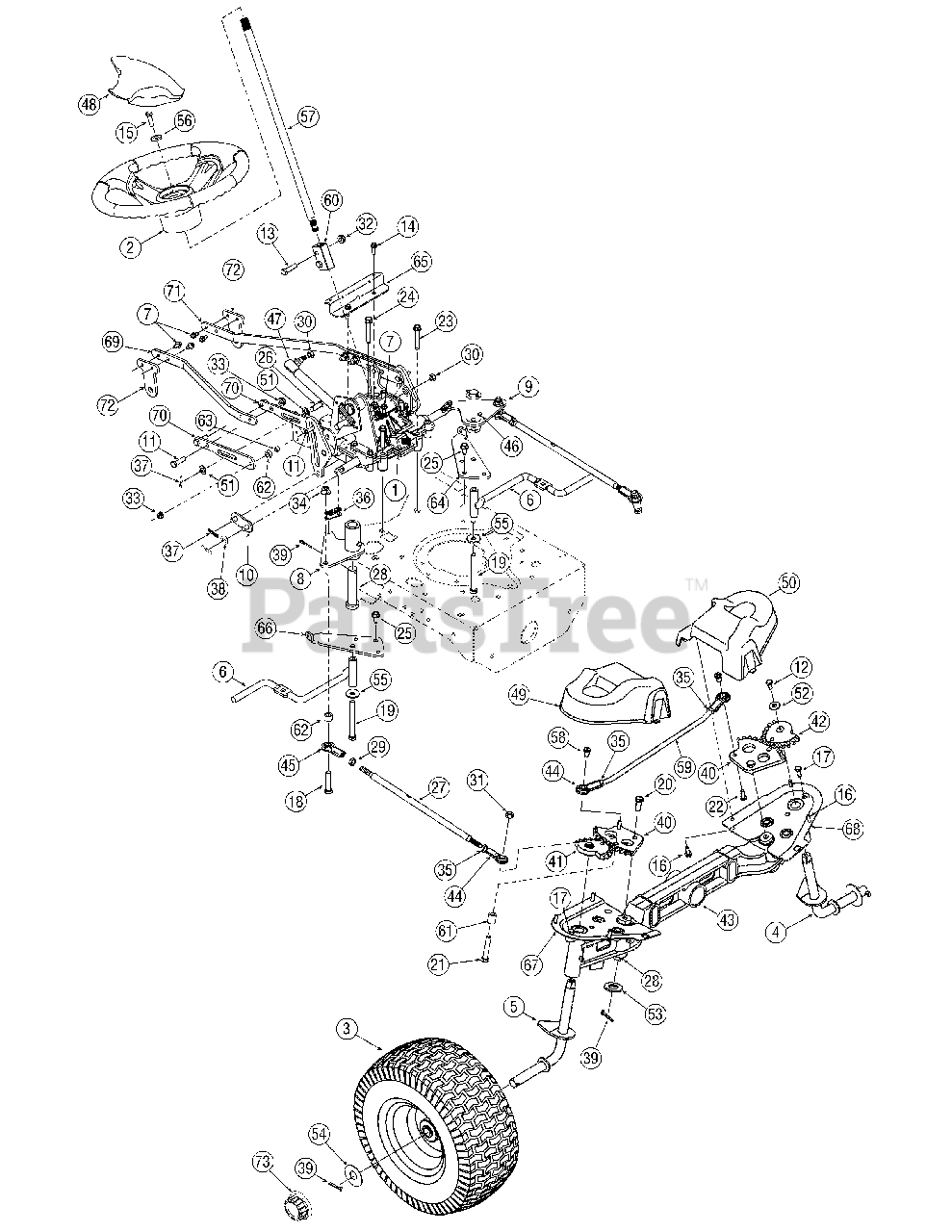

Steering Control & Front Axle Parts Diagram

  • Title

1

Cub Cadet 618-04430

Steering Assembly, Steering/Hydro
(Superseded to 918-04634A)

$1041.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 759-04284

Kit, Replacment Steering Gear Box

Note: (Incl. LH & RH Cams, 1 Tube,2 Pins & 2 Washers)

$134.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04008A

Wheel, Steering
(Superseded to 631-04008B)

$100.99

$

In Stock, only 2 left!

0

3

Cub Cadet N/A

Wheel Assembly

$

$

Currently unavailable

3

Cub Cadet 734-1731

Tire, 15 x 6 x 6

Note: Not shown

Variations

Cub Cadet 734-1731-0902

Turf Tire - Dico (0902)

$47.99

$

In Stock, Qty 12

0

Cub Cadet 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$52.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-04104A

Rim Assembly
(Superseded to 934-04104A)

Note: Not shown

Variations

Cub Cadet 634-04104A-0499

Front Rim Assembly - CUB BEIGE (0499)

$192.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04104A-0662

USE 934-04104A-0662 RIM ASM-F - OYSTER GRAY (0662)

$156.99

$

In Stock, only 1 left!

0

Cub Cadet 634-04104A-0729

USE 934-04104A-0729 RIM ASM-F - STORM GRAY (0729)

$192.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04104A-4042

USE 934-04104A-4042 RIM ASM-F - CRAFTSMAN GRAY (4042)

$156.99

$

In Stock, only 1 left!

0

$156.99

$

In Stock, only 1 left!

0

3

Cub Cadet 737-0224

Grease Fitting

Note: Not shown

$7.99

$

In Stock, Qty 6

0

3

Cub Cadet 941-04137

Bearing, Ball
(Superseded to 941-04137A)

Note: Not shown

$32.99

$

In Stock, only 3 left!

0

3

Cub Cadet 934-0255

Valve, Tubeless Air

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 647-04062

Axle Assembly, LH
(Superseded to 647-04062-0637)

Variations

Cub Cadet 647-04062-0637

Axle Assembly, LH - POWDER BLACK (0637)

$302.99

$

Usually ships in 3-6 days

0

$302.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 647-04063

Axle Assembly, RH
(Superseded to 647-04063-0637)

Variations

Cub Cadet 647-04063-0637

AXLE ASSY-RH - POWDER BLACK (0637)

$302.99

$

Usually ships in 3-6 days

0

$302.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 647-04080A

Rod, Fender Support
(Superseded to 647-04080A-0637)

Variations

Cub Cadet 647-04080A-0637

ROD ASM-FENDER SUP - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 683-04282A

Arm, Steering, RH
(Superseded to 759-04220)

$

$

Not available

8

Cub Cadet 759-04220

Service Kit RH

$

$

Not available

9

Cub Cadet 683-04284A

Arm, Steering, LH
(Superseded to 759-04221)

$

$

Not available

9

Cub Cadet 759-04221

Service Kit LH

$

$

Not available

10

Cub Cadet 683-04332

Link, Steering Box/Hydro

$

$

Not available

11

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Gr5

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 710-0195

Screw, Hex Cap, 1/4-28 x .625 Gr5
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 Gr5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0642

Screw, Hex Wash Hd. Tapp, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0650

Screw, Hex Wash Hd. Tapp, 5/16-18 x .875

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04187

Screw, Hex Wash Hd. Hi/Lo, 1/4-15 x .5
(Superseded to 710-04187A)

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 Gr5

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3085

Screw, Hex Cap, 3/8-16 x 3.5 Gr5

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 Gr5

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 Gr5

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3296

Screw, Hex Cap Lock, 1/4-20 x .75 Gr5

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-04006

Screw, Hex Wash Hd. Tapp, 5/16-18 x 2.0

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-04389

Screw, Hex Wash Hd. Tapp, 5/16-18 x 2.25

$7.49

$

In Stock, only 2 left!

0

25

Cub Cadet 710-04484

Screw, TT, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 711-04722

Pin, Clevis, .375 x .969 HT

$7.49

$

In Stock, only 3 left!

0

27

Cub Cadet 711-04472

Link, Drag

$

$

Not available

28

Cub Cadet 711-04562

Shaft, Steering Pivot Gear

$17.99

$

In Stock, only 3 left!

0

29

Cub Cadet 712-0312A

Nut, Jam, 3/8-24 LH Thrd

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-0365

Nut, Hex Lock, M8 x 1.25 Gr9

$

$

Not available

31

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock, 1/4-20 GrF

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/16-16 GrF

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 Gr2
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 16

0

36

Cub Cadet 713-04037

Link, Connnecting
(Superseded to 913-04037)

$7.49

$

In Stock, Qty 10

0

37

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

38

Cub Cadet 736-0286

Washer, Sping, .39 x .75 x .010
(Superseded to 936-0286)

$7.49

$

In Stock, only 2 left!

0

39

Cub Cadet 714-04039

Pin, Cotter, 5/32 x 1.25
(Superseded to 714-0162)

$5.49

$

In Stock, Qty 20+

0

40

Cub Cadet 717-04274

Gear, Spur, 12T
(Superseded to 717-04274A)

$216.99

$

In Stock, only 1 left!

0

41

Cub Cadet 717-04275

Gear, Spur, RH 13T
(Superseded to 717-04275A)

$37.99

$

In Stock, only 2 left!

0

42

Cub Cadet 717-04282

Gear, Spur, LH 13T
(Superseded to 717-04282A)

$37.99

$

In Stock, only 2 left!

0

43

Cub Cadet 719-04170A

Axle, Pivot Bar

$291.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 723-04035

End, Ball Joint Rod

$38.99

$

In Stock, Qty 19

0

45

Cub Cadet 723-04036

End, Ball Joint Rod, LH Thrd.

$39.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 727-0626A

Cylinder, Damper
(Superseded to 927-0626A)

$162.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 731-04532A

Cover, Steering Wheel
(Superseded to 731-04532B)

$25.99

$

In Stock, Qty 9

0

49

Cub Cadet 731-05476

Cover, Steering Gear, RH

$

$

Not available

50

Cub Cadet 731-05618

Cover, Steering Gear, LH

$24.99

$

In Stock, only 2 left!

0

51

Cub Cadet 736-0185

Washer, Flat, .375 x .738.063

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0315

Washer, Flat, .76 x 1.5 x .12

$7.49

$

In Stock, only 2 left!

0

54

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0452

Washer, Bell, .396 x 1.14 x .095

$4.99

$

In Stock, only 4 left!

0

56

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 14

0

57

Cub Cadet 738-04189

Shaft, Steering, .625 x 17.281

$

$

Not available

58

Cub Cadet 738-04240

Nut, Shoulder, .375 x .5

$7.49

$

In Stock, Qty 6

0

59

Cub Cadet 747-04496

Rod, 3/8-24 x 14.4 Lg

$

$

Not available

60

Cub Cadet 748-04139

Block, Steering Shaft

$43.99

$

In Stock, Qty 8

0

61

Cub Cadet 750-04676

Spacer, .385 x .63 x .75

$22.99

$

In Stock, only 2 left!

0

62

Cub Cadet 750-04776

Spacer, .380 x .625 x .265

$5.99

$

In Stock, only 3 left!

0

63

Cub Cadet 750-04777

Spacer, .26 x .372 x .33

$7.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 783-04798

Bracket, Steering Support, LH
(Superseded to 783-04798-0637)

Variations

Cub Cadet 783-04798-0637

BRACKET-STEERING S - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 783-04799

Bracket, Steering Support, Upper
(Superseded to 783-04799-0637)

Variations

Cub Cadet 783-04799-0637

BRACKET-SUPPORT:ST - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 783-05140

Bracket, Steering Support, RH
(Superseded to 783-05140-0637)

Variations

Cub Cadet 783-05140-0637

BRACKET-STEERING S - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 783-05184

Plate, Base Cover, RH
(Superseded to 783-05184-0637)

Variations

Cub Cadet 783-05184-0637

Base Cover Plate, RH - POWDER BLACK (0637)

$

$

Not available

$

$

68

Cub Cadet 783-05185

Plate, Base Cover, LH
(Superseded to 783-05185-0637)

Variations

Cub Cadet 783-05185-0637

Base Cover Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

69

Cub Cadet 783-05380

Link, Steering/Hydro RH
(Superseded to 783-05380-0637)

Variations

Cub Cadet 783-05380-0637

LINK-STEERING:HYDR - POWDER BLACK (0637)

$25.99

$

In Stock, only 2 left!

0

$25.99

$

In Stock, only 2 left!

0

70

Cub Cadet 783-05381

Bracket, Hydro/Steering Adjustment

$48.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 783-05404

Link, Steering/Hydro LH
(Superseded to 783-05404-0637)

Variations

Cub Cadet 783-05404-0637

LINK-STEERING:HYDR - POWDER BLACK (0637)

$32.99

$

In Stock, only 1 left!

0

$32.99

$

In Stock, only 1 left!

0

72

Cub Cadet 783-05446

Bracket, Steering Link
(Superseded to 783-05446A)

Variations

Cub Cadet 783-05446-0637

Steering Bracket, LH - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

73

Cub Cadet 731-3020

Hub Cap
(Superseded to 931-3020)

$9.49

$

In Stock, Qty 20+

0

74

Cub Cadet 736-0222

Washer, Lock

$6.49

$

In Stock, only 3 left!

0

Cub Cadet 490-900-0005

Grease Gun with one tube of grease

Note: Not shown

$

$

Not available

Cub Cadet 490-900-0006

Replacement tubes of grease (3 pack)
(Superseded to 937-04049)

Note: Not shown

$

$

Not available
