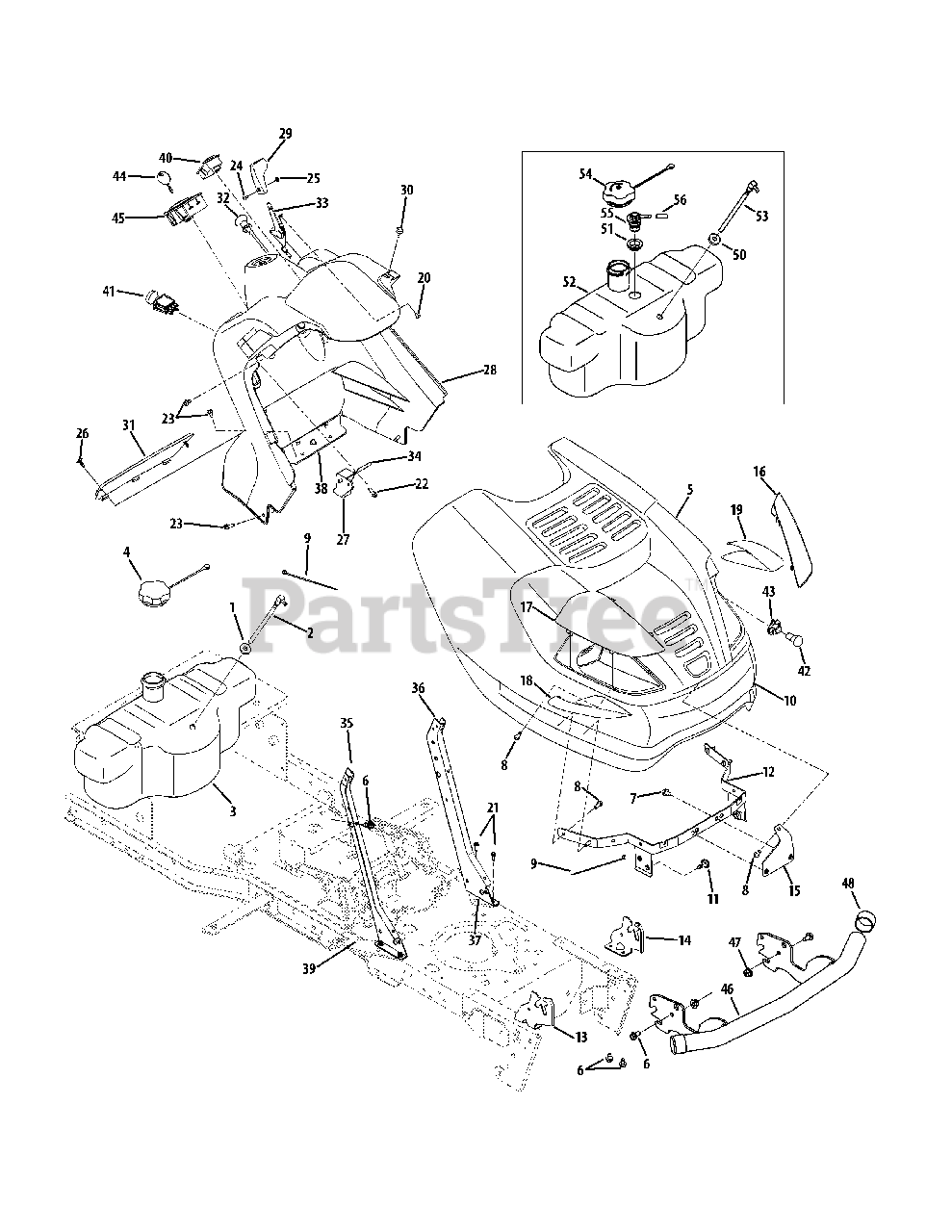

i1050 (17WF9BKP010) - Cub Cadet 50" Zero-Turn Mower (2011) Hood, Dash Panel & Fuel Tank Parts Diagram

50" Zero-Turn Mower

Hood, Dash Panel & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

2

Cub Cadet 751-10442

Fuel Pick-Up Fitting

$32.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751-10692

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

4

Cub Cadet 751-10703A

Fuel Cap
(Superseded to 951-12428)

$43.99

$

In Stock, Qty 15

0

5

Cub Cadet 731-05435

Hood Plenum
(Superseded to 931-05435)

$90.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05108

Hex Washer Screw, 1/4 Dia. x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 731-05434

Hood

$240.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 8

0

12

Cub Cadet 783-04606C-0637

Hood Pivot Bracket

$48.99

$

In Stock, only 1 left!

0

13

Cub Cadet 783-04840-0637

RH Hood Pivot Bracket

$19.99

$

In Stock, only 2 left!

0

14

Cub Cadet 783-04841-0637

LH Hood Pivot Bracket

$

$

Not available

15

Cub Cadet 783-05162-0637

Hood Support Bracket

$

$

Not available

16

Cub Cadet 731-05525

LH Lens

$13.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-05526

RH Lens

$16.99

$

In Stock, only 1 left!

0

18

Cub Cadet 777X42426

RH Lens Label

$

$

Not available

19

Cub Cadet 777X42427

LH Lens Label

$

$

Not available

20

Cub Cadet 710-0192

Machine Screw, #10-24 x .375

$3.99

$

In Stock, Qty 12

0

21

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 7

0

23

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 15

0

24

Cub Cadet 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

25

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

26

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 731-04213

Brake Lever

$12.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-05406

Dash

$141.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 931-3161A

Throttle Control Knob

$19.99

$

In Stock, only 1 left!

0

30

Cub Cadet 735-0271A

Bumper, .62 x .3

$8.99

$

In Stock, Qty 9

0

31

Cub Cadet 735-04076

Accessory Net

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 746-04120

Choke Control (50")
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

32

Cub Cadet 746-04121

Choke Control (42")

$30.99

$

In Stock, only 1 left!

0

33

Cub Cadet 946-1100

Throttle Cable (50")

$34.99

$

In Stock, Qty 9

0

33

Cub Cadet 946-1087

Throttle Cable (42")

$35.99

$

In Stock, only 1 left!

0

34

Cub Cadet 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 783-04285F-0637

RH Dash Support Plate

$

$

Not available

36

Cub Cadet 783-04323F-0637

LH Dash Support Plate

$34.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783-04798-0637

LH Steering Support Bracket

$14.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783-04799-0637

Upper Steering Support Bracket

$

$

Not available

39

Cub Cadet 783-05140-0637

RH Steering Support Bracket

$16.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 925-04022B

Hour Meter/Service Indicator

$146.99

$

In Stock, only 1 left!

0

41

Cub Cadet 725-04258

PTO Switch
(Superseded to 925-04258A)

$56.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 925-0963

Bulb

$7.49

$

In Stock, Qty 16

0

43

Cub Cadet 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 16

0

44

Cub Cadet 925-2054A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

45

Cub Cadet 925-04227B

Key Switch Module (U.S.)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 7

0

45

Cub Cadet 925-04230B

Key Switch Module (Export)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 7

0

46

Cub Cadet 683-04219B-0637

Bumper

Note: If Equipped

$60.99

$

In Stock, only 2 left!

0

47

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 731-05368

Bumper Cap

Note: If Equipped

$5.99

$

In Stock, Qty 11

0

49

Cub Cadet 738-0143

Shoulder Bolt

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 935-0149

Fuel Tank Bushing

Note: If Equipped

$2.99

$

In Stock, Qty 20+

0

51

Cub Cadet 735-04081

Rubber Grommet

Note: If Equipped

$4.99

$

In Stock, only 1 left!

0

52

Cub Cadet 951-04209A

Fuel Tank, 2.82 Gallon
(Superseded to 951-05138)

Note: If Equipped

$

$

Not available

53

Cub Cadet 751-10442

Fuel Pick-Up Fitting

Note: If Equipped

$32.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 751-10447A

Fuel Cap
(Superseded to 951-12429)

Note: If Equipped

$45.99

$

In Stock, Qty 6

0

55

Cub Cadet 751-12118

Fuel Rollover Valve

Note: If Equipped

$35.99

$

In Stock, only 2 left!

0

56

Cub Cadet 751-12089-51

Vent Hose

Note: If Equipped

$16.99

$

In Stock, only 1 left!

0

Cub Cadet 720-3025

Plug

Note: Not shown

$

$

Not available

Cub Cadet 725-2003

12v Power Receptacle

Note: Not shown

$42.99

$

Usually ships in 3-6 days

0
