ICT 13 (954130027) - Jonsered Lawn Tractor (1999-03) STEERING Parts Diagram

Lawn Tractor

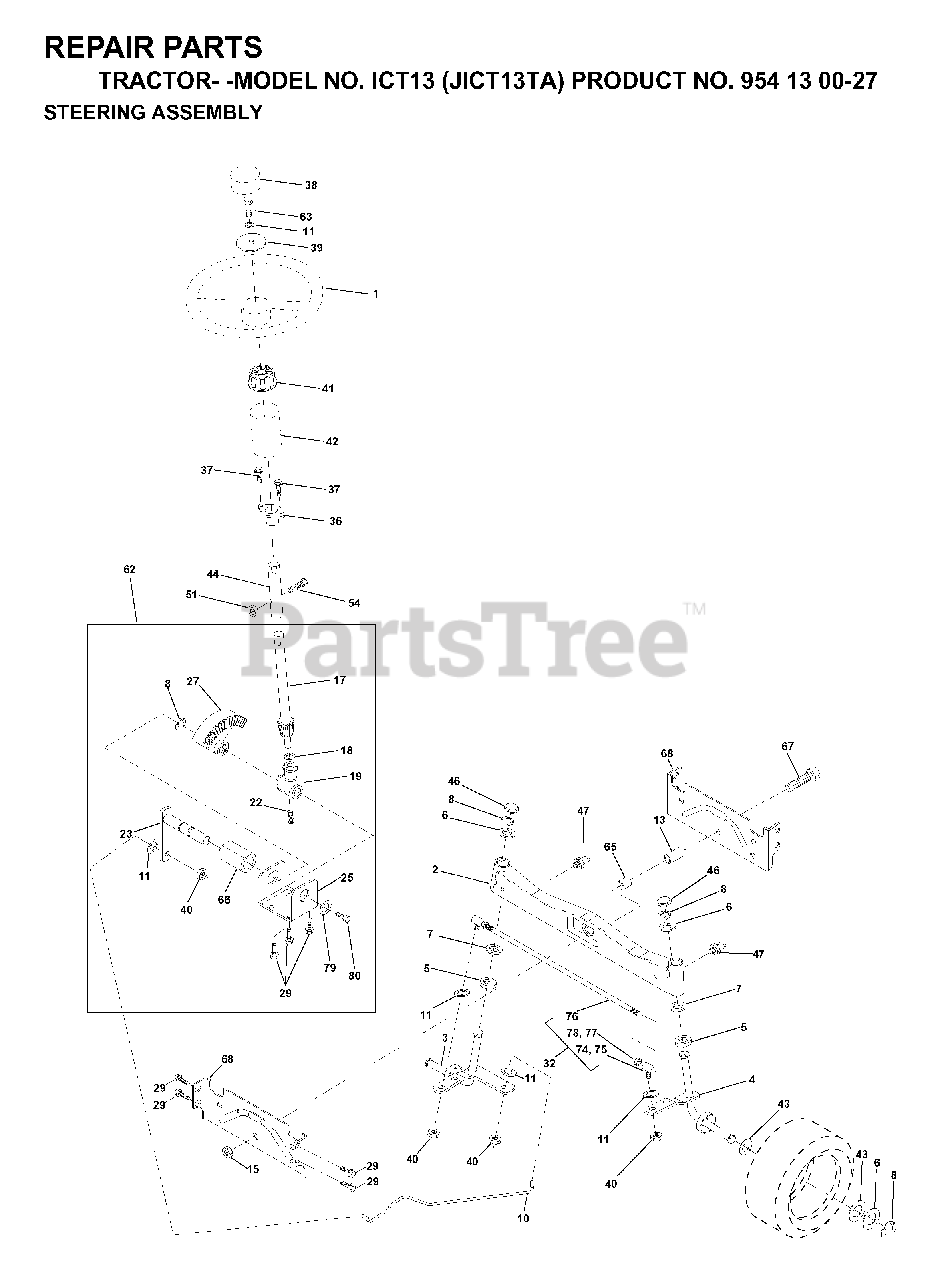

STEERING Parts Diagram

  • Title

1

Jonsered 532140044

No Description Available

$

$

Not available

2

Jonsered 532137094

FRONT AXLE ASSY
(Superseded to 532178557)

$

$

Not available

3

Jonsered 532157479

SPINDLE ASM LH

$

$

Not available

4

Jonsered 532157478

SPINDLE ASM RH

$

$

Not available

5

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Jonsered 819272016

WASHER

$6.49

$

In Stock, only 4 left!

0

8

Jonsered 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

10

Jonsered 532154432

LINK.DRAG.DROPPED.LT

$93.99

$

In Stock, Qty 5

0

11

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 532167118

SPACER, FRT AXLE BRNG

$

$

Not available

15

Jonsered 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

17

Jonsered 532156546

SHAFT ASM STEERING

$35.99

$

Usually ships in 3-10 days

0

18

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 532160395

STEERING SHAFT SUPPORT

$9.99

$

In Stock, Qty 20+

0

22

Jonsered 532165857

SCREW.HX.WSH.HD

$6.49

$

In Stock, only 4 left!

0

23

Jonsered 532165851

SHAFT ASSY PITTMAN

$

$

Not available

25

Jonsered 532154406

BRACKET STEERING

$8.99

$

Usually ships in 3-10 days

0

27

Jonsered 532136874

GEAR.SECTOR

$80.99

$

In Stock, Qty 7

0

29

Jonsered 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

32

Jonsered 532137347

ROD ASSY/TIE BALL
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

36

Jonsered 532155099

BUSHING, STEERING
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Jonsered 532152927

SCREW

$7.49

$

In Stock, Qty 19

0

38

Jonsered 532140045

RP INSERT
(Superseded to 532175905)

$6.99

$

Usually ships in 3-10 days

0

39

Jonsered 819133808

WASHER T
(Superseded to 583789501)

$

$

Not available

40

Jonsered 532124701

GRIPCO NUT
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 532100711

ADAPTER LT
(Superseded to 532186737)

$7.99

$

In Stock, Qty 20+

0

42

Jonsered 532145054

STEERING BOOT, GRAY
(Superseded to 532169633)

$8.99

$

In Stock, only 1 left!

0

43

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

44

Jonsered 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

46

Jonsered 532121232

CAP.SPINDLE

$3.99

$

In Stock, Qty 20+

0

47

Jonsered 532124836

ZERK M
(Superseded to 532006855)

$7.49

$

In Stock, only 3 left!

0

51

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

54

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Jonsered 532167902

STEERING KIT
(Superseded to 584371701)

$133.99

$

In Stock, only 1 left!

0

63

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 532154780

SPACER AXLE

$9.99

$

Usually ships in 3-10 days

0

66

Jonsered 532154404

BEARING ARM

$6.49

$

In Stock, Qty 5

0

67

Jonsered 874781044

BOLT.HEX.FINISHED.5/8

$

$

Not available

68

Jonsered 532154429

AXLE, BRACE

$21.99

$

Usually ships in 3-10 days

0

74

Jonsered 532109850

JOINT
(Superseded to 532121160)

$24.99

$

In Stock, only 2 left!

0

75

Jonsered 532109851

JOINT.LH

$31.99

$

Usually ships in 3-10 days

0

76

Jonsered 532137156

TIE ROD
(Superseded to 532137347)

$87.99

$

In Stock, only 2 left!

0

77

Jonsered 873700600

NUT

$6.49

$

Usually ships in 3-10 days

0

78

Jonsered 873360600

NUT

$6.49

$

Usually ships in 3-10 days

0

79

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

80

Jonsered 874950612

BOLT.HX.NYLON3/8-16X

$6.49

$

In Stock, only 3 left!

0
