ICT 13 A (954130040-C) - Jonsered Lawn Tractor (2001-02)

Lawn Tractor

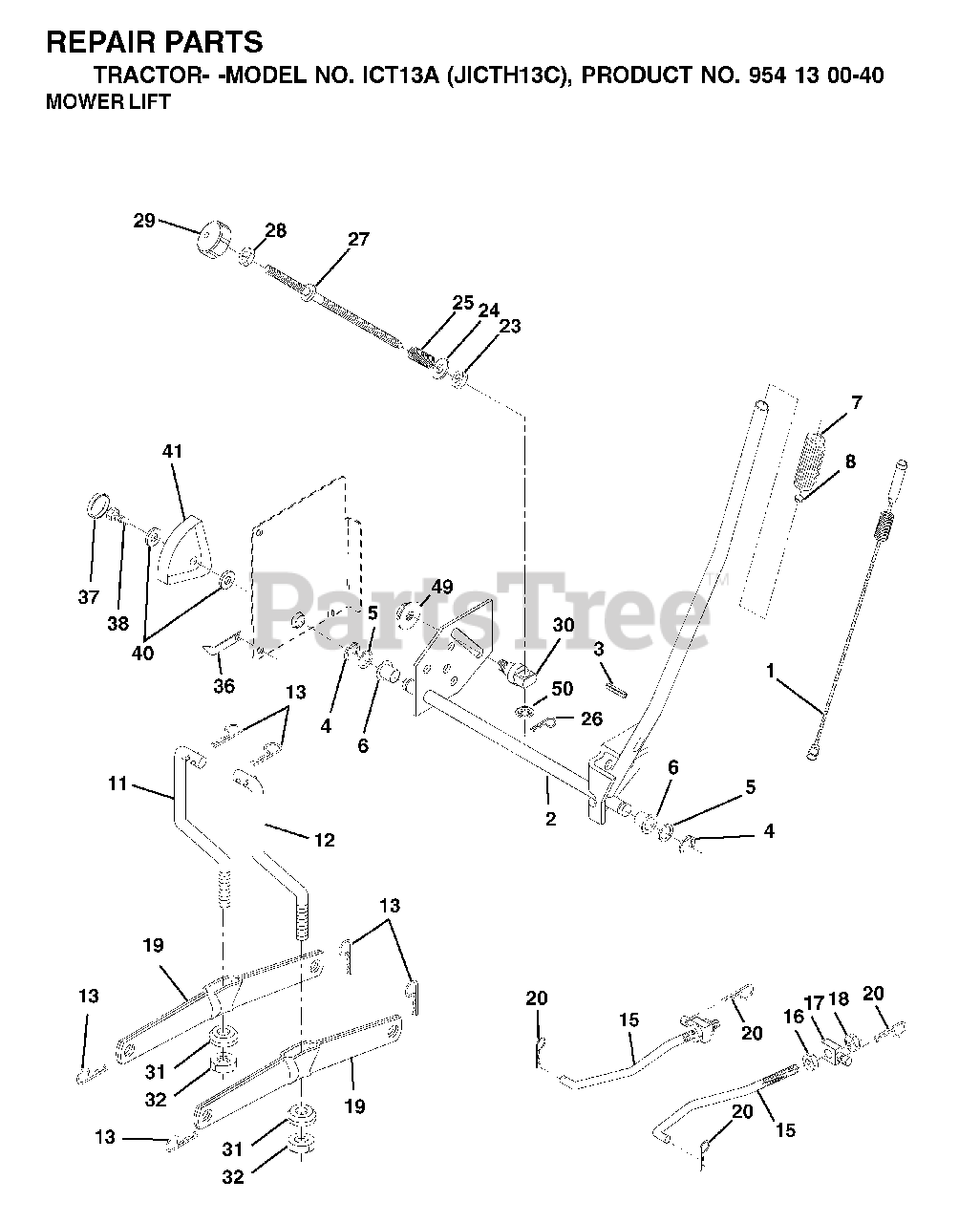

ICT 13 A (954130040-C) - Jonsered Lawn Tractor (2001-02) > Parts Diagrams (11) > MOWER LIFT / DECK LIFT

  • Title
532159460

1

WIRE ASM INNER W/ PLUNGER LT

Part# 532159460

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $10.05

532159471

2

SHAFT ASM R HANDLE

Part# 532159471

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $60.82

532105767

3

PIN GROOVE

Part# 532105767

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

812000002

4

RETAINING RING LT

Part# 812000002

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

819211621

5

WASHER

Part# 819211621

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532120183

6

BEARING.NYLON

Part# 532120183

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532125631

7

GRIP HANDLE

Part# 532125631

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532124526

8

PLUNGER BUT KIT

Part# 532124526 (Superseded to 532125925)

OEM Warranty Repair Part for Jonsered

Not available

532165829

11

LINK

Part# 532165829 (Superseded to 532165828)

OEM Warranty Repair Part for Jonsered

Not available

532165831

12

LINK

Part# 532165831 (Superseded to 532165830)

OEM Warranty Repair Part for Jonsered

Not available

532124670

13

RETAINER-SPRNG RB

Part# 532124670 (Superseded to 532085902)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.76

532173288

15

LINK.SUSPENSION.FRONT

Part# 532173288

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $10.05

873350800

16

NUT

Part# 873350800

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.75

532130171

17

TRUNION

Part# 532130171 (Superseded to 532175689)

OEM Warranty Repair Part for Jonsered

Not available

873800800

18

NUT

Part# 873800800

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.23

532139868

19

ARM.REAR.SUSPENSION

Part# 532139868

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $13.41

532163552

20

SPRING RETAINER

Part# 532163552 (Superseded to 532003146)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.76

532110807

23

NUT T

Part# 532110807

OEM Warranty Repair Part for Jonsered

Not available

819131016

24

WASHER

Part# 819131016

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532124874

25

SPRING**

Part# 532124874 (Superseded to 532002876)

OEM Warranty Repair Part for Jonsered

Not available

532169484

26

RETAINER CLIP

Part# 532169484

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $5.58

532126971

27

ROD ADJ LIFT

Part# 532126971

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

873350600

28

NUT

Part# 873350600

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532138057

29

KNOB INF 3/8-16

Part# 532138057

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

532150233

30

TRUNNION

Part# 532150233

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

532169865

31

BEARING.PIVOT.LIFT

Part# 532169865

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

873540600

32

NUT CROWNLOCK 3/8-24

Part# 873540600

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $1.67

532155097

36

POINTER, HEIGHT INDICATOR

Part# 532155097

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532123935

37

PLUG,HOLE

Part# 532123935

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

817060516

38

SCREW 5/16-18X1

Part# 817060516

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

819112410

40

WASHER

Part# 819112410

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532123934

41

HEIGHT INDICATOR

Part# 532123934

OEM Warranty Repair Part for Jonsered

Not available

532145212

49

NUT

Part# 532145212 (Superseded to 532409149)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.78

532110452

50

NUT PUSH M

Part# 532110452

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.76
