ICT 14 A (954130065-B) - Jonsered Lawn Tractor (2002-02)

Lawn Tractor

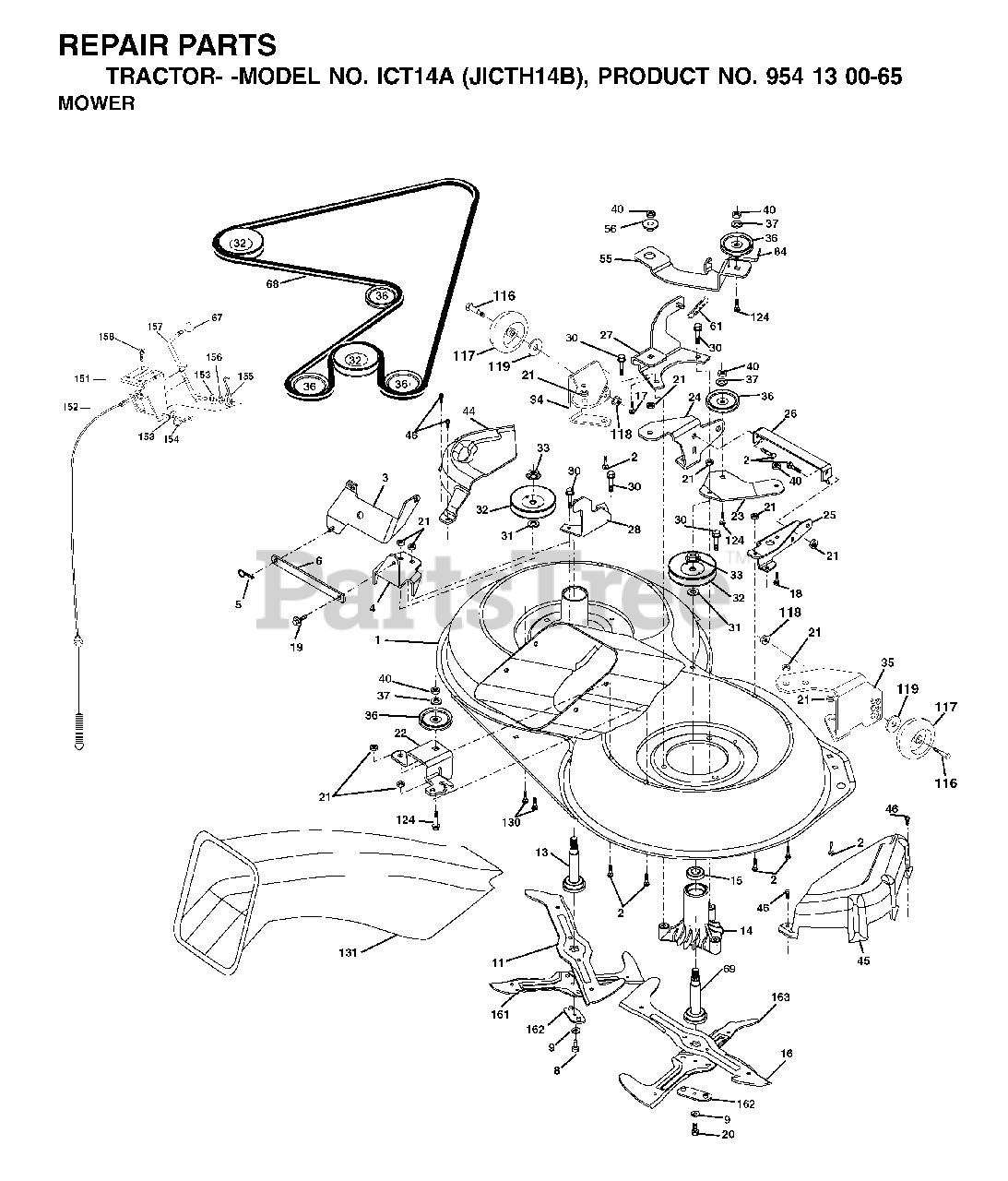

ICT 14 A (954130065-B) - Jonsered Lawn Tractor (2002-02) > Parts Diagrams (11) > MOWER DECK / CUTTING DECK

  • Title
532165552

1

MOWER HOUSING, DECK

Part# 532165552 (Superseded to 532176029)

OEM Warranty Repair Part for Jonsered

Not available

872140506

2

BOLT

Part# 872140506

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $1.67

532165569

3

BRACKET

Part# 532165569

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $26.82

532165558

4

BRACKET

Part# 532165558

OEM Warranty Repair Part for Jonsered

Not available

532124670

5

RETAINER-SPRNG RB

Part# 532124670 (Superseded to 532085902)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.76

532165557

6

BAR SWAY

Part# 532165557

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

532181712

8

No Description Available

Part# 532181712

OEM Warranty Repair Part for Jonsered

Not available

810030600

9

LOCKWASHER

Part# 810030600

OEM Warranty Repair Part for Jonsered

Not available

532140296

10

WASHER.BLADE

Part# 532140296

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532170037

11

BLADE-LH 5PT STAR(CTH130)

Part# 532170037 (Superseded to 532426323)

OEM Warranty Repair Part for Jonsered

Not available

532137645

13

SHAFT ASM VENT

Part# 532137645 (Superseded to 532133172)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $20.11

532128774

14

HSG MANDREL

Part# 532128774

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $25.70

532110485

15

BEARING

Part# 532110485

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $8.93

532170038

16

BLADE RH 6PT STAR(CTH130)

Part# 532170038 (Superseded to 532426322)

OEM Warranty Repair Part for Jonsered

Not available

872140610

17

BOLT.3/8-14X1.25

Part# 872140610

OEM Warranty Repair Part for Jonsered

Not available

872110608

18

BOLT D

Part# 872110608

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532132827

19

BOLT SHD 5/16-18

Part# 532132827

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532181713

20

No Description Available

Part# 532181713

OEM Warranty Repair Part for Jonsered

Not available

873680500

21

LOCKNUT

Part# 873680500

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.01

532165243

22

BRACKET

Part# 532165243

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $20.11

532165446

23

BRACKET

Part# 532165446

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

532165242

24

BRACKET

Part# 532165242

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

532165244

25

BRACKET

Part# 532165244

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.35

532165237

26

BRACE

Part# 532165237

OEM Warranty Repair Part for Jonsered

Not available

532165568

27

BRACKET

Part# 532165568

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $20.11

532165567

28

BRACKET

Part# 532165567

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $15.64

532173984

30

SCREW, WASHER HEAD

Part# 532173984

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.23

532129963

31

WASHER

Part# 532129963 (Superseded to 532187690)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.75

532153531

32

PULLEY, MANDREL

Part# 532153531 (Superseded to 532173434)

OEM Warranty Repair Part for Jonsered

Not available

532178342

33

NUT, FLG TOPLOCK 9/16"

Part# 532178342 (Superseded to 532400234)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

532165239

34

BRACKET

Part# 532165239

OEM Warranty Repair Part for Jonsered

Not available

532165238

35

BRACKET

Part# 532165238

OEM Warranty Repair Part for Jonsered

Not available

532146763

36

PULLEY.IDLER.4.25

Part# 532146763

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $16.76

819131316

37

WASHER

Part# 819131316

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

873680600

40

LOCKNUT

Part# 873680600

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

532175538

44

No Description Available

Part# 532175538

OEM Warranty Repair Part for Jonsered

Not available

532175539

45

MANDREL COVER

Part# 532175539

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

532137729

46

SCREW.1/4-20X5/8

Part# 532137729

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.78

532165445

55

ARM IDLER

Part# 532165445

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

532165723

56

SPACER.RETAINER.MOWER

Part# 532165723

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532165945

61

SPRING.TENSION.BELT

Part# 532165945

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

532106932

67

KNOB T (3/8 HOLE)

Part# 532106932

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

532180217

68

HEX-BELT

Part# 532180217 (Superseded to 532402008)

OEM Warranty Repair Part for Jonsered

Not available

532165482

69

SHAFT.ASM.W/LWR.BRG.RH.THREAD

Part# 532165482

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $40.24

532156085

84

KEEPER, BELT IDLER

Part# 532156085 (Superseded to 532173968)

OEM Warranty Repair Part for Jonsered

Not available

532137644

116

BOLT, SHOULDER

Part# 532137644 (Superseded to 532184219)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.52

532133957

117

WHEEL GAGE DONUT

Part# 532133957

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $11.17

873930600

118

LOCKNUT

Part# 873930600

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

819121414

119

WASHER

Part# 819121414

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.03

872110612

124

BOLT.3/8-16X1.50

Part# 872110612

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

872110506

130

BOLT

Part# 872110506

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532165661

131

CHUTE BAGGER

Part# 532165661

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $64.83

532169670

151

BRACKET, CLUTCH CABLE

Part# 532169670

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $16.76

532176074

152

No Description Available

Part# 532176074

OEM Warranty Repair Part for Jonsered

Not available

532169674

153

WASHER FLAT 3/8"

Part# 532169674

OEM Warranty Repair Part for Jonsered

Not available

532169675

154

SPRING RETAINER

Part# 532169675

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532169671

155

SPRING RETENTION LEVER

Part# 532169671

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532169672

156

SPACER CLUTCH CABLE

Part# 532169672

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532169669

157

ROD CLUTCH CABLE 3/8"

Part# 532169669

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $29.06

817720408

158

SCREW

Part# 817720408 (Superseded to 874780408)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.23

532180418

161

BLADE

Part# 532180418

OEM Warranty Repair Part for Jonsered

Not available

532180420

162

No Description Available

Part# 532180420

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

532180419

163

No Description Available

Part# 532180419

OEM Warranty Repair Part for Jonsered

Not available

532181857

--

No Description Available

Part# 532181857

OEM Warranty Repair Part for Jonsered

Not available

532181858

--

No Description Available

Part# 532181858

OEM Warranty Repair Part for Jonsered

Not available

532181765

--

No Description Available

Part# 532181765

OEM Warranty Repair Part for Jonsered

Not available
