ICT 15 A (954130049-A) - Jonsered Lawn Tractor (2001-02)

Lawn Tractor

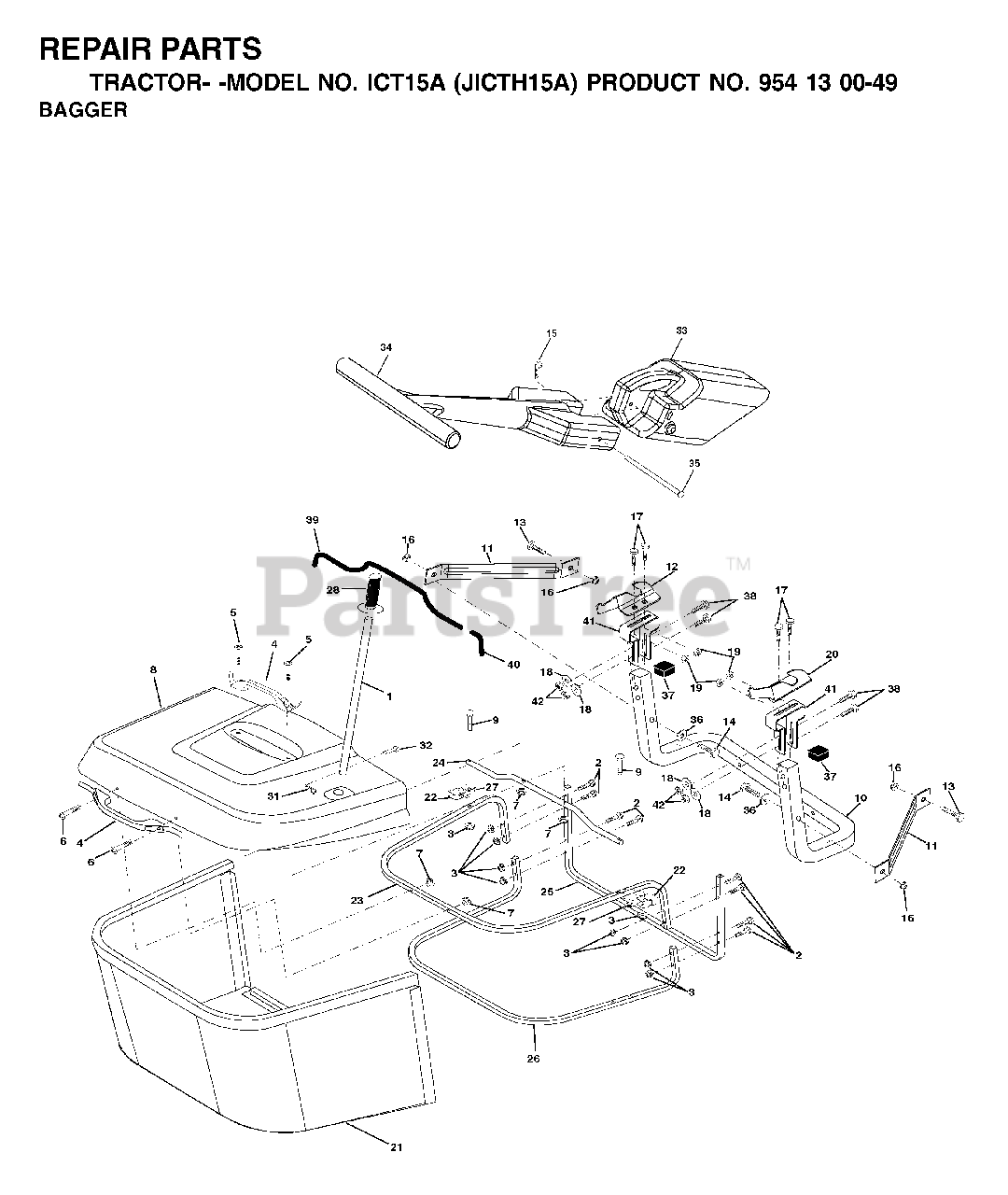

ICT 15 A (954130049-A) - Jonsered Lawn Tractor (2001-02) > Parts Diagrams (12) > BAGGER

  • Title
532170690

1

TUBE HANDLE BAGGER

Part# 532170690

OEM Warranty Repair Part for Jonsered

Not available

872140416

2

No Description Available

Part# 872140416

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532123976

3

NUT T

Part# 532123976 (Superseded to 873900400)

OEM Warranty Repair Part for Jonsered

Not available

532169916

4

HANDLE

Part# 532169916

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

874981024

5

SCREW.PAN.HEAD

Part# 874981024

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $6.70

874981032

6

No Description Available

Part# 874981032

OEM Warranty Repair Part for Jonsered

Not available

873401000

7

NUT

Part# 873401000

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

532168871

8

No Description Available

Part# 532168871

OEM Warranty Repair Part for Jonsered

Not available

872140418

9

No Description Available

Part# 872140418

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

532169688

10

TUBE

Part# 532169688

OEM Warranty Repair Part for Jonsered

Not available

532165719

11

BRACKET

Part# 532165719

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

532169685

12

BRACKET

Part# 532169685

OEM Warranty Repair Part for Jonsered

Not available

872110606

13

BOLT

Part# 872110606

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

874520640

14

No Description Available

Part# 874520640

OEM Warranty Repair Part for Jonsered

Not available

532124670

15

RETAINER-SPRNG RB

Part# 532124670 (Superseded to 532085902)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.76

873900600

16

NUT LOCK FLG 3/8-16 UNC

Part# 873900600

OEM Warranty Repair Part for Jonsered

Not available

872140506

17

BOLT

Part# 872140506

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $1.67

819111216

18

WASHER M

Part# 819111216

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $5.81

873900500

19

NUT LOCK HEX FLANGE 5/16-18

Part# 873900500

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532169684

20

BRACKET

Part# 532169684 (Superseded to 532188847)

OEM Warranty Repair Part for Jonsered

Not available

532165780

21

BAG

Part# 532165780 (Superseded to 532180880)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $146.45

532165781

22

BRACKET

Part# 532165781

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

532165782

23

TUBE

Part# 532165782

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $262.72

532165783

24

TUBE

Part# 532165783

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

532165784

25

TUBE

Part# 532165784

OEM Warranty Repair Part for Jonsered

Not available

532165785

26

TUBE

Part# 532165785

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $36.88

532169692

27

BUSHING

Part# 532169692

OEM Warranty Repair Part for Jonsered

Not available

532170696

28

No Description Available

Part# 532170696

OEM Warranty Repair Part for Jonsered

Not available

532124788

31

RETAINER M

Part# 532124788 (Superseded to 532004497)

OEM Warranty Repair Part for Jonsered

Not available

532126875

32

RIVET,DRILLED

Part# 532126875

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532165571

33

PLUG

Part# 532165571

OEM Warranty Repair Part for Jonsered

Not available

532165570

34

HANDLE

Part# 532165570

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $41.36

532165572

35

PIN

Part# 532165572

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.41

819132016

36

WASHER

Part# 819132016

OEM Warranty Repair Part for Jonsered

Not available

532175401

37

No Description Available

Part# 532175401

OEM Warranty Repair Part for Jonsered

Not available

872010520

38

BOLT.5/16-18X2.5

Part# 872010520

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532169999

39

TRIM

Part# 532169999 (Superseded to 532169997)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $30.18

532170000

40

TRIM

Part# 532170000 (Superseded to 532169997)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $30.18

532169683

41

BRKT, BAGGER

Part# 532169683

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

873800500

42

NUT.71038.31-18.HEX.NYLOCK

Part# 873800500

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.01
