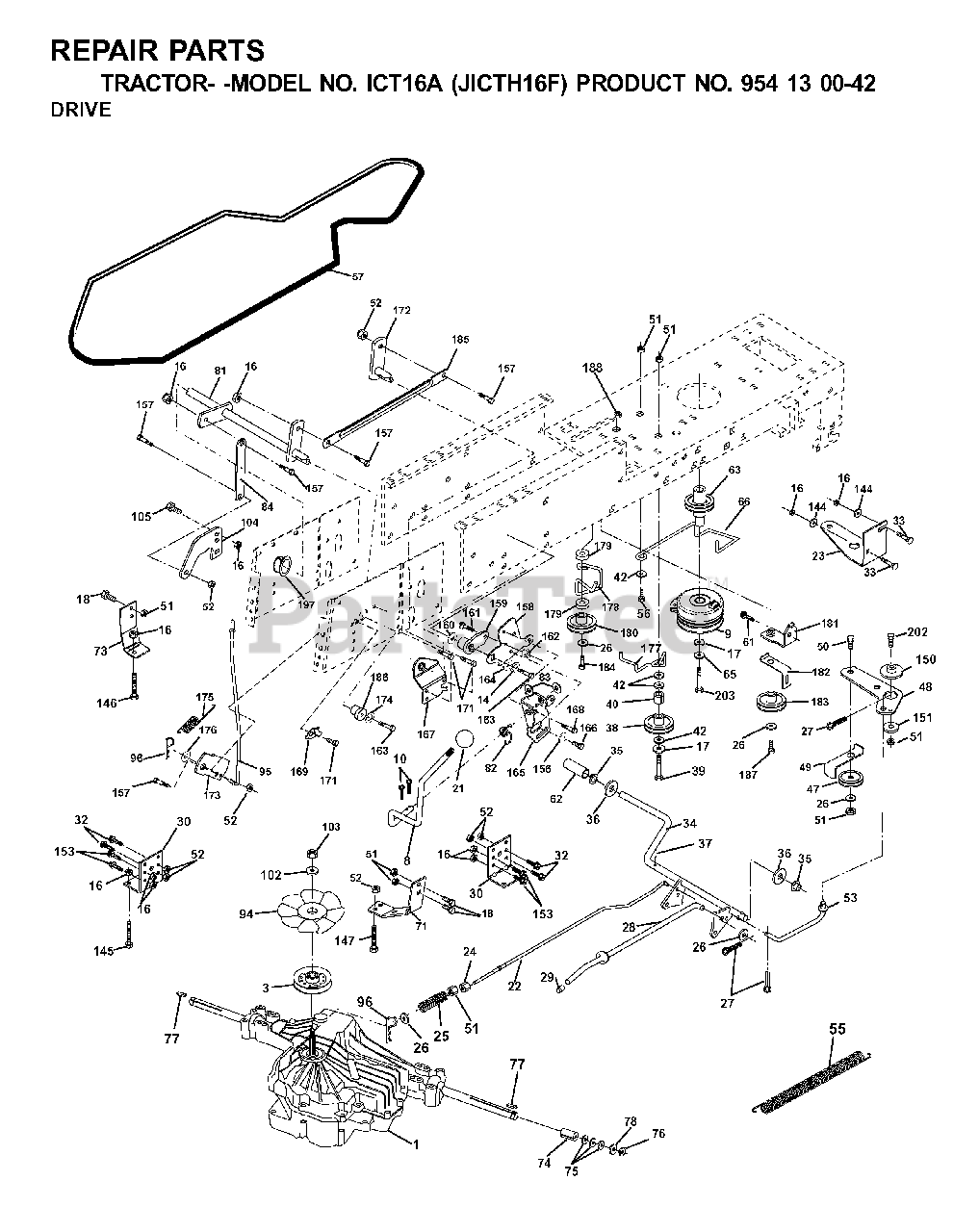

ICT 16 A (954130042-F) - Jonsered Lawn Tractor (2001-02) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

3

Jonsered 532143995

PULLEY, TRANSAXLE

$

$

Not available

8

Jonsered 532165619

ROD SHIFT
(Superseded to 165619)

$16.99

$

Usually ships in 3-10 days

0

9

Jonsered 532175540

No Description Available

$

$

Not available

10

Jonsered 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

18

Jonsered 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

20

Jonsered 532150280

BOLT HEX
(Superseded to 501606501)

$3.49

$

In Stock, Qty 15

0

21

Jonsered 532130564

PISTOL KNOB

$

$

Not available

22

Jonsered 532165688

No Description Available

$

$

Not available

23

Jonsered 532170171

BRACKET
(Superseded to 170171)

$17.99

$

Usually ships in 3-10 days

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 5

0

26

Jonsered 819131316

WASHER

$4.99

$

In Stock, only 3 left!

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

28

Jonsered 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Jonsered 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

30

Jonsered 532169592

BRKT, TRNSXLE MNT 20"
(Superseded to 531149601)

$11.99

$

In Stock, only 2 left!

0

32

Jonsered 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

33

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

34

Jonsered 532165496

SHAFT

$

$

Not available

35

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, Qty 17

0

36

Jonsered 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, only 2 left!

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, Qty 5

0

38

Jonsered 532165936

PULLEY.FLAT

$28.99

$

In Stock, only 2 left!

0

39

Jonsered 874760644

BOLT

$

$

Not available

40

Jonsered 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

42

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

Usually ships in 3-10 days

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

49

Jonsered 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Jonsered 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 17

0

56

Jonsered 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

57

Jonsered 532165632

V-BELT.0650.CRD.TRACTOR

$

$

Not available

61

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Jonsered 532145868

PULLEY, CLUTCH ELECT EVX

$96.99

$

Usually ships in 3-10 days

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 18

0

66

Jonsered 532154778

KEEPER BELT ENGINE
(Superseded to 531151001)

$9.49

$

In Stock, only 2 left!

0

71

Jonsered 532140158

STRAP LH TORQUE
(Superseded to 140158)

$3.49

$

Usually ships in 3-10 days

0

73

Jonsered 532156347

STRAP TORQUE RH HYDRO
(Superseded to 156347)

$2.99

$

Usually ships in 3-10 days

0

74

Jonsered 532121199

SPACER SPLIT

$

$

Not available

75

Jonsered 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Jonsered 812000001

E-RING LT

$3.49

$

In Stock, Qty 18

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

78

Jonsered 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Jonsered 532165585

SHAFT

$

$

Not available

82

Jonsered 532123782

SPRING,TORSION

$

$

Not available

83

Jonsered 819171216

WASHER
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Jonsered 532165629

LINK TRANSAXLE
(Superseded to 165629)

$2.99

$

Usually ships in 3-10 days

0

94

Jonsered 532140462

FAN 7" HYDRO

$13.99

$

In Stock, only 4 left!

0

95

Jonsered 532165935

No Description Available

$

$

Not available

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

102

Jonsered 532141322

WASHER

$7.99

$

Usually ships in 3-10 days

0

103

Jonsered 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, Qty 7

0

104

Jonsered 532140156

CONTROL ARM
(Superseded to 140156)

$

$

Not available

105

Jonsered 871070516

SCREW

$7.99

$

Usually ships in 3-10 days

0

144

Jonsered 819111016

WASHER
(Superseded to 734116301)

$

$

Not available

145

Jonsered 874490540

BOLT
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

146

Jonsered 874490536

BOLT
(Superseded to 583613101)

$

$

Not available

147

Jonsered 874490524

BOLT

$

$

Not available

150

Jonsered 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

153

Jonsered 874760516

BOLT RB
(Superseded to 596580801)

$3.49

$

In Stock, only 1 left!

0

156

Jonsered 532166002

WASHER.SRRTD.5/16
(Superseded to 596218801)

$2.49

$

Usually ships in 3-10 days

0

157

Jonsered 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$3.49

$

In Stock, Qty 8

0

158

Jonsered 532165589

BRACKET
(Superseded to 532437458)

$6.99

$

Usually ships in 3-10 days

0

159

Jonsered 532165494

HUB
(Superseded to 532444304)

$6.99

$

Usually ships in 3-10 days

0

160

Jonsered 819292016

WASHER

$9.49

$

Usually ships in 3-10 days

0

161

Jonsered 872140406

BOLT
(Superseded to 872110407)

$

$

Not available

162

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Jonsered 874780416

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

164

Jonsered 819091010

WASHER

$

$

Not available

165

Jonsered 532165623

RP BRACKET
(Superseded to 531149501)

$5.99

$

Usually ships in 3-10 days

0

166

Jonsered 532166880

SCREW

$

$

Not available

167

Jonsered 532165588

BRACKET
(Superseded to 574988801)

$

$

Not available

168

Jonsered 532165492

BOLT.SHOULDER.5/16-18X

$9.49

$

In Stock, only 2 left!

0

169

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$7.99

$

Usually ships in 3-10 days

0

171

Jonsered 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

172

Jonsered 532165587

SHAFT

$

$

Not available

173

Jonsered 532165934

BRACKET

$

$

Not available

174

Jonsered 810090400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

In Stock, only 1 left!

0

175

Jonsered 532165931

SPRING.BYPASS.CRD

$3.99

$

Usually ships in 3-10 days

0

176

Jonsered 819070816

WASHER
(Superseded to 734114601)

$6.99

$

In Stock, only 2 left!

0

177

Jonsered 532165932

KEEPER

$9.49

$

Usually ships in 3-10 days

0

178

Jonsered 532165933

KEEPER

$

$

Not available

179

Jonsered 532120958

WASHER

$

$

Not available

180

Jonsered 532165630

PULLEY.FLAT.IDLER

$31.99

$

Usually ships in 3-10 days

0

181

Jonsered 532165797

BRACKET

$

$

Not available

182

Jonsered 532165634

KEEPER BELT
(Superseded to 529846301)

$6.99

$

Usually ships in 3-10 days

0

183

Jonsered 532165626

PULLEY.V-IDLER

$37.99

$

In Stock, only 2 left!

0

184

Jonsered 817490644

SCREW.HXWSH.3/8
(Superseded to 596564005)

$7.99

$

Usually ships in 3-10 days

0

185

Jonsered 532165541

LINK

$

$

Not available

186

Jonsered 532165614

HUB

$5.99

$

Usually ships in 3-10 days

0

187

Jonsered 817490620

SCREW
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

188

Jonsered 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

197

Jonsered 532169613

NYLINER SNAP 5/8" ID

$5.99

$

In Stock, Qty 5

0

202

Jonsered 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.49

$

In Stock, only 2 left!
