ICT 19 A (954130068) - Jonsered Lawn Tractor (2002-02) ENGINE Parts Diagram

Lawn Tractor

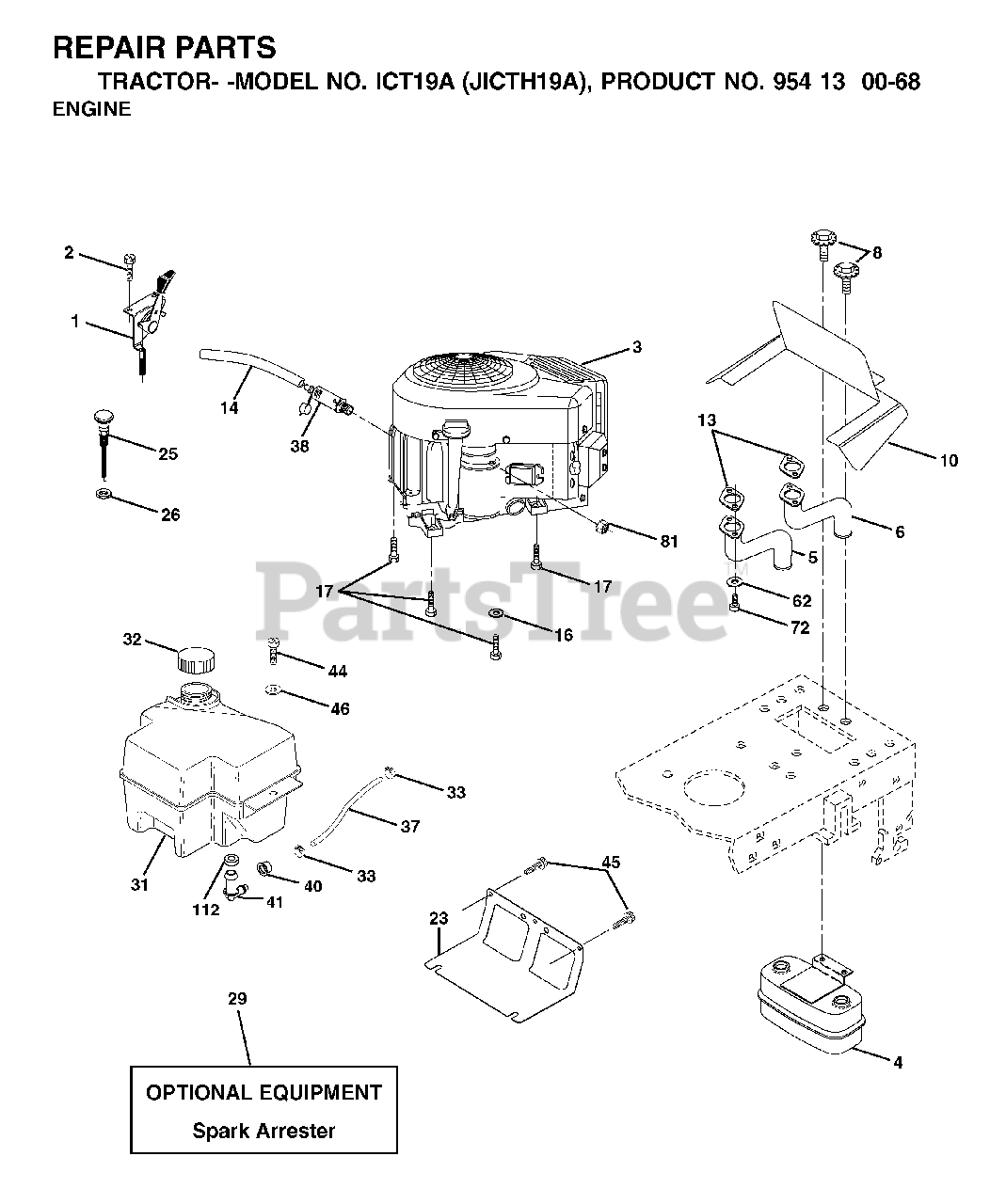

ENGINE Parts Diagram

  • Title

1

Jonsered 532170771

CONTROL, THROTTLE

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

4

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

5

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

6

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$28.99

$

In Stock, only 3 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

10

Jonsered 532162797

SHIELD.BROWNING.B&S
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

13

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

14

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 10

0

16

Jonsered 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

17

Jonsered 817060624

No Description Available

$5.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

25

Jonsered 532145996

CONTROL, CHOKE

$

$

Not available

26

Jonsered 873920600

NUT KEPS 3/8 - 24 UNF

$

$

Not available

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$193.99

$

In Stock, only 1 left!

0

31

Jonsered 532180645

GAS TANK 2GAL

$

$

Not available

32

Jonsered 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

37

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

38

Jonsered 532148315

PLUG, OIL DRAIN EASY
(Superseded to 532181654)

$20.99

$

In Stock, Qty 7

0

40

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 1 left!

0

41

Jonsered 532139277

STEM FUEL TANK

$7.99

$

Usually ships in 3-10 days

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

62

Jonsered 810040500

LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

72

Jonsered 871070512

SCREW
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

112

Jonsered 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 9

0
