IR5002B (80227) - Snapper 16.5" Rear-Tine Tiller, 5hp

16.5" Rear-Tine Tiller, 5hp

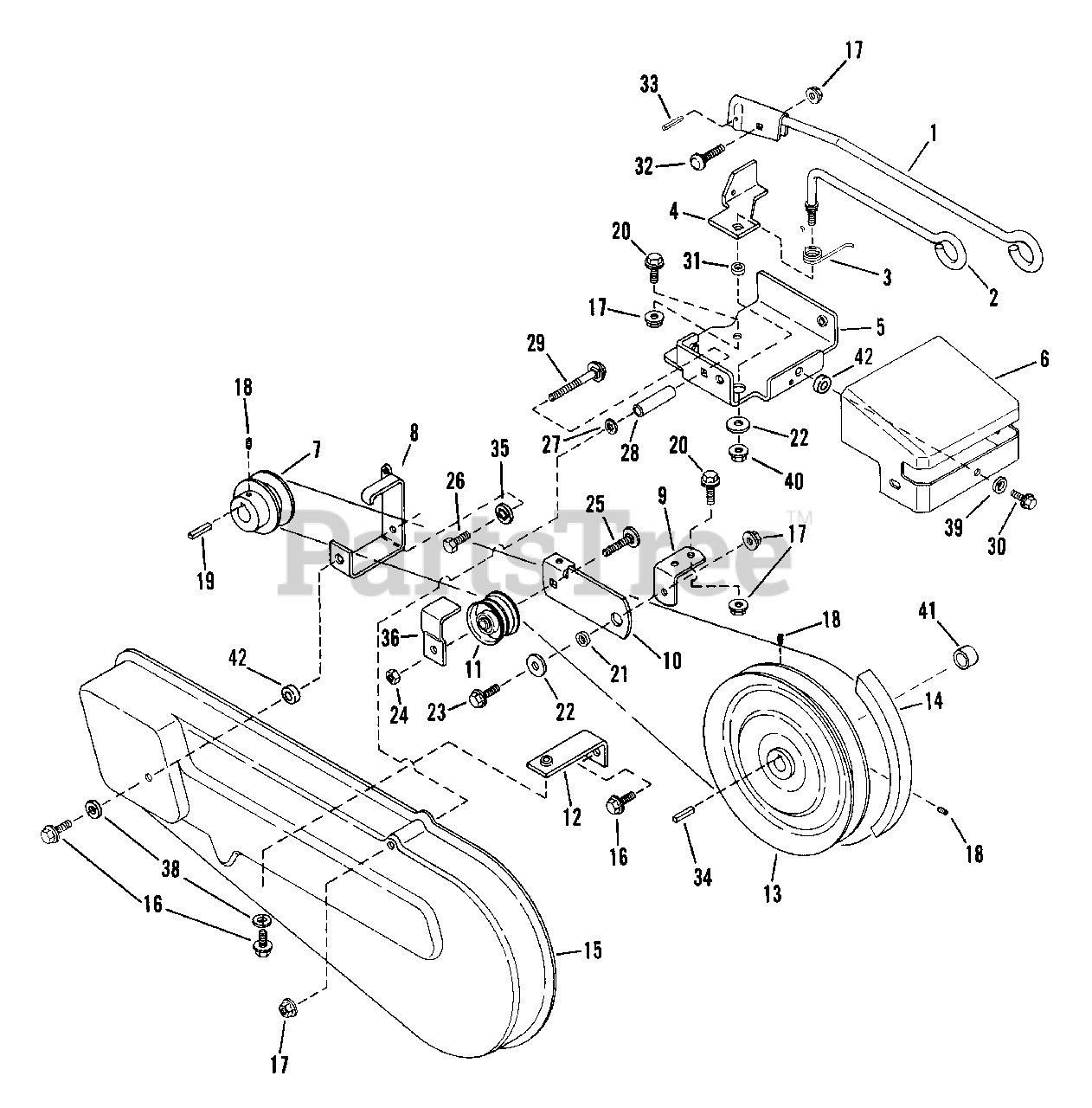

IR5002B (80227) - Snapper 16.5" Rear-Tine Tiller, 5hp > Parts Diagrams (8) > Shift & Drive Components

  • Title
7047884

1

LEVER, Shift

Part# 7047884 (Superseded to 7047884YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $41.31

18924

2

LEVER, Lockout

Part# 18924

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Currently unavailable

7015605

3

SPRING, Interlock

Part# 7015605 (Superseded to 7015605YP)

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.14

32591

4

INTERLOCK, Shift

Part# 32591

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Currently unavailable

7038646

5

PLATE, Shift

Part# 7038646 (Superseded to 7038646YP)

Note: Was 38234 (Series 0 & 1)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $19.12

7038646

5

PLATE, Shift

Part# 7038646 (Superseded to 7038646YP)

Note: (Series 2)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $19.12

7017004

6

COVER, Shift

Part# 7017004 (Superseded to 7017004YP)

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $11.40

7017018

6

COVER, Shift

Part# 7017018 (Superseded to 7017018YP)

Note: 1989 Models & Later.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $11.07

7011809

7

PULLEY, Engine

Part# 7011809 (Superseded to 7011809YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $29.91

7032541

8

GUIDE, Belt

Part# 7032541

OEM Warranty Repair Part for Snapper

Not available

32538

9

BRACKET, Idler Pivot

Part# 32538

Note: (Series 0 & 1)

OEM Warranty Repair Part for Snapper

Currently unavailable

7032843

9

BRACKET, Idler Pivot

Part# 7032843

Note: (Series 2)

OEM Warranty Repair Part for Snapper

Not available

7032846

10

BRACKET, Idler Arm

Part# 7032846 (Superseded to 7032846YP)

Note: Was 32537 (Series 0 & 1)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $20.29

7032846

10

BRACKET, Idler Arm

Part# 7032846 (Superseded to 7032846YP)

Note: (Series 2)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $20.29

7010948

11

PULLEY, Idler

Part# 7010948 (Superseded to 1716615SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $16.09

7032539

12

BRACKET, Belt Cover

Part# 7032539

OEM Warranty Repair Part for Snapper

Currently unavailable

7033962

12

BRACKET, Belt Cover

Part# 7033962 (Superseded to 7033962YP)

Note: Was 32844

OEM Warranty Repair Part for Snapper

Not available

7011194

13

PULLEY, Driven

Part# 7011194

OEM Warranty Repair Part for Snapper

Not available

7015403

14

BELT, Drive

Part# 7015403 (Superseded to 7015403YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $22.98

7016022

15

COVER, Belt

Part# 7016022 (Superseded to 7016022YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $29.85

7090858

16

SCREW, 5/16-18 x 1/2 Self-Tapping

Part# 7090858 (Superseded to 703985)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.12

7091541

16

SCREW, 5/16-18 x 3/4" Self-Tapping (IR 5002B)

Part# 7091541 (Superseded to 703228)

Note: Was 90368

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.79

7091601

17

NUT, 5/16-18 Hex Flange Lock

Part# 7091601 (Superseded to 703409)

Note: Was 90585

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $4.35

7090954

18

SCREW, 5/16-18 x 5/16" Hex Set

Part# 7090954 (Superseded to 7090954YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.40

7010061

19

KEY, 3/16x3/16x1"

Part# 7010061 (Superseded to 7010061SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.12

7090721

20

BOLT, 5/16-18x1/2" Hex Flange Lock

Part# 7090721 (Superseded to 7090721YP)

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7090361

20

SCREW, 5/16-18x5/8" Self-Tapping

Part# 7090361 (Superseded to 703949)

Note: 1989 Models & Later.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.12

7013849

21

SPACER

Part# 7013849 (Superseded to 703970)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.96

7014098

22

WASHER, 11/32 Flat

Part# 7014098 (Superseded to 7014098SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $13.74

7090595

23

BOLT, 5/16-18x3/4" Hex Flange Lock

Part# 7090595 (Superseded to 703354)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $4.13

7091585

24

NUT, 3/8-16 Hex Lock

Part# 7091585 (Superseded to 703347)

Note: Was 90546

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.68

7090964

25

BOLT, 3/8-16x1-1/2" Flat Head Carriage

Part# 7090964

OEM Warranty Repair Part for Snapper

Not available

7090322

26

SCREW, 5/16-24x1/2" Hex Head Cap

Part# 7090322

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.50

7011791

27

RETAINER, 5/16 Bolt

Part# 7011791 (Superseded to 703297)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.01

7013025

28

BUSHING

Part# 7013025 (Superseded to 7013025YP)

Note: (SERIES 0 & 1)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.85

7023851

28

TUBE-CUT

Part# 7023851 (Superseded to 7023851YP)

Note: (SERIES 2)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.08

7090959

29

BOLT, 5/16-18 x 2-1/2" Short Neck Carriage

Part# 7090959 (Superseded to 7090959SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.40

7091122

30

BOLT, 1/4-20x1/2" Self-Tapping

Part# 7091122 (Superseded to 704130)

Note: Was 90539

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.90

7015618

31

SPACER

Part# 7015618

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Currently unavailable

7091303

32

BOLT, 5/16-18x1" Short Neck Carriage

Part# 7091303 (Superseded to 703800)

Note: Was 90383

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.12

7013550

33

PIN,L 3/16x1" Roll

Part# 7013550 (Superseded to 7013550YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7012830

34

KEY, 3/16x3/4" Square

Part# 7012830 (Superseded to 2001022MA)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.46

7090391

35

WASHER, 5/16 Internal Tooth Lock

Part# 7090391 (Superseded to 703587)

Note: 1988 Models Only.

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.34

7032662

36

GUIDE, Idler

Part# 7032662 (Superseded to 7032662YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $19.51

7011762

37

BOOT, Spark Plug (not shown)

Part# 7011762 (Superseded to 7011762YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.85

ENGINE, Briggs & Stratton, 4 HP (not shown)

37

ENGINE, Briggs & Stratton, 4 HP (not shown)

Part# ENGINE, Briggs & Stratton, 4 HP (not shown)

Note: (Series 0 & 1)

Not available

ENGINE, Briggs & Stratton, 4 HP (not shown)

37

ENGINE, Briggs & Stratton, 4 HP (not shown)

Part# ENGINE, Briggs & Stratton, 4 HP (not shown)

Note: (Series 2)

Not available

--

15

ENGINE, Briggs & Stratton, 5 HP (B&S # 135202-0127-01)(IR 5002B)

Part# --

Note: (Not Shown)

Not available

7090188

38

WASHER, 5/16 Flat

Part# 7090188 (Superseded to 703350)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.23

7091294

39

WASHER, 1/4 Flat

Part# 7091294 (Superseded to 703332)

Note: Was 90055

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.57

7090951

40

NUT, 5/16-18 Hex Flange Lock

Part# 7090951 (Superseded to 704001)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.34

7023852

41

SPACER, 5/8 I.D.

Part# 7023852 (Superseded to 7023852YP)

Note: (Series 2)

OEM Warranty Repair Part for Snapper

Not available

7033349

42

BUSHING, Rubber (IR 5002B)

Part# 7033349 (Superseded to 7033349YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.96
