IS 1000Z (5901050) - Ferris IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki (SN: 2530 & Below) Bumper Group - Rear Parts Diagram

IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

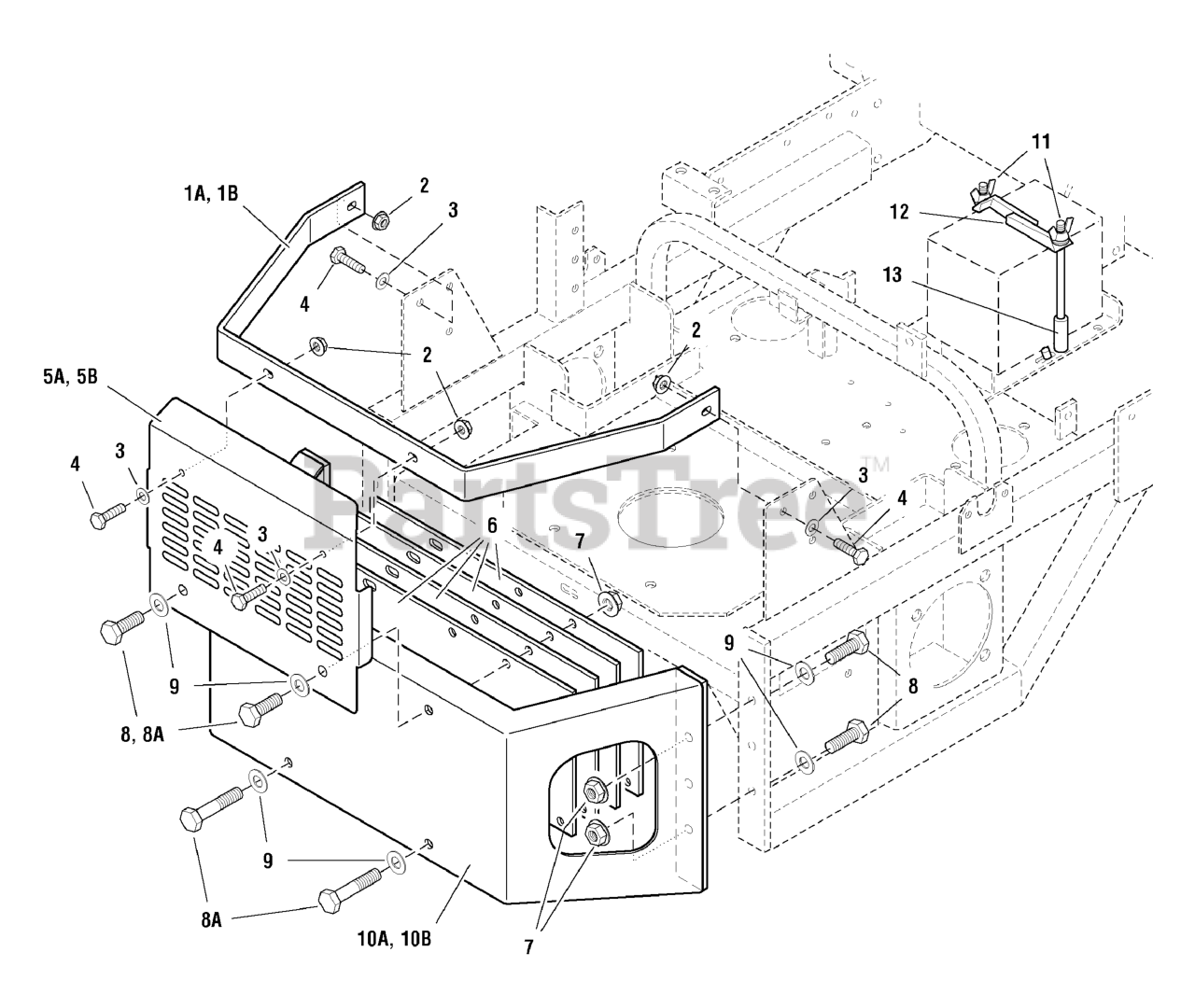

Bumper Group - Rear Parts Diagram

  • Title

1A

Ferris 5047114B

BUMPER BAR

Note: (48" model, S/N: 1905 & below / 52" model, S/N: 1400 & below)

$46.99

$

Usually ships in 2-12 days

0

1B

Ferris 5049142B

BUMPER BAR

Note: (48" model, S/N: 1906 & above / 52" model, S/N: 1401 & above)

$

$

Currently unavailable

2

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

5A

Ferris 5047071B

BUMPER SHIELD

Note: (48" model, S/N: 1905 & below / 52" model, S/N: 1400 & below)

$39.99

$

Usually ships in 2-12 days

0

5B

Ferris 5049147B

BUMPER SHIELD

Note: (48" model, S/N: 1906 & above / 52" model, S/N: 1401 & above)

$17.99

$

Usually ships in 2-12 days

0

6

Ferris 5047485B

COUNTERWEIGHT

Note: (52" model only)

$39.99

$

Usually ships in 2-12 days

0

7

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

Note: (48" model)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

Note: (52" model)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (48" model)

$3.99

$

In Stock, only 4 left!

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (52" model)

$3.99

$

In Stock, only 4 left!

0

8A

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: (52" model only)

$4.49

$

In Stock, Qty 6

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (48" model)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (52" model)

$3.49

$

Usually ships in 2-12 days

0

10A

Ferris 5047115B

BUMPER

Note: (48" model, S/N: 1905 & below / 52" model, S/N: 1400 & below)

$125.99

$

Usually ships in 2-12 days

0

10B

Ferris 5047851B

BUMPER

Note: (48" model, S/N: 1906 & above / 52" model, S/N: 1401 & above)

$182.99

$

Usually ships in 2-12 days

0

11

Ferris 5022596

BATTERY HOLDDOWN BOLT

$6.99

$

Usually ships in 2-12 days

0

12

Ferris 5022595

BATTERY HOLDDOWN
(Superseded to 5022595SM)

$23.99

$

Usually ships in 2-12 days

0

13

Ferris 5050831X3

1/4" Fuel Line, 3" Long

$

$

Not available
