IS 1000Z (5901050) - Ferris IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki (SN: 2530 & Below) Fuel Supply Hose & Tank Replacement Parts Group (48" - S/N: 410 & Below; 52" - S/N: 555 & Below) Parts Diagram

IS1000Z Series 48" Zero-Turn Mower, 21hp Kawasaki

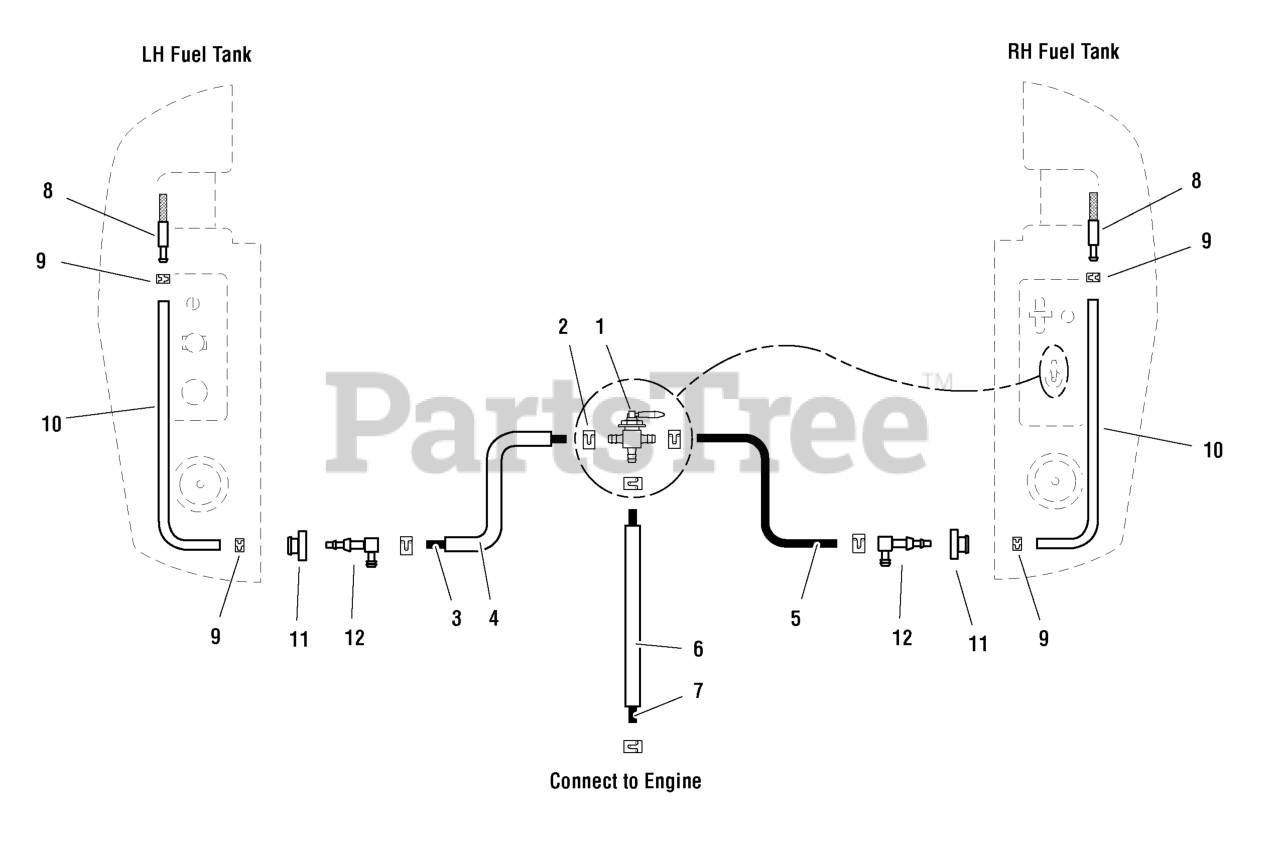

Fuel Supply Hose & Tank Replacement Parts Group (48" - S/N: 410 & Below; 52" - S/N: 555 & Below) Parts Diagram

  • Title

1

Ferris 5022030

VALVE, Fuel Shut Off

$43.99

$

In Stock, only 1 left!

0

2

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5050831X45

1/4" Fuel Line, 45" Long

$

$

Not available

4

Ferris 5050833X43

WIRE LOOM, 43"

$6.99

$

Usually ships in 2-12 days

0

5

Ferris 5050831X6P5

1/4" Fuel Line, 6-1/2" Long

$

$

Not available

6

Ferris 5050833X40

WIRE LOOM, 40"

$

$

Not available

7

Ferris 5050831X42

1/4" Fuel Line, 42" Long

$

$

Not available

8

SEE REF # 10

$

$

Not available

9

SEE REF # 10

$

$

Not available

10

Ferris 5101217

ASSM, FUEL HOSE, 20"

Note: (Includes clamp & filter)

$47.99

$

Usually ships in 2-12 days

0

11

SEE REF # 10

$

$

Not available

12

SEE REF # 10

$

$

Not available
