IS 1500Z (5900578) - Ferris IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Rear-Discharge 44" & 48" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

IS1500Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Rear-Discharge

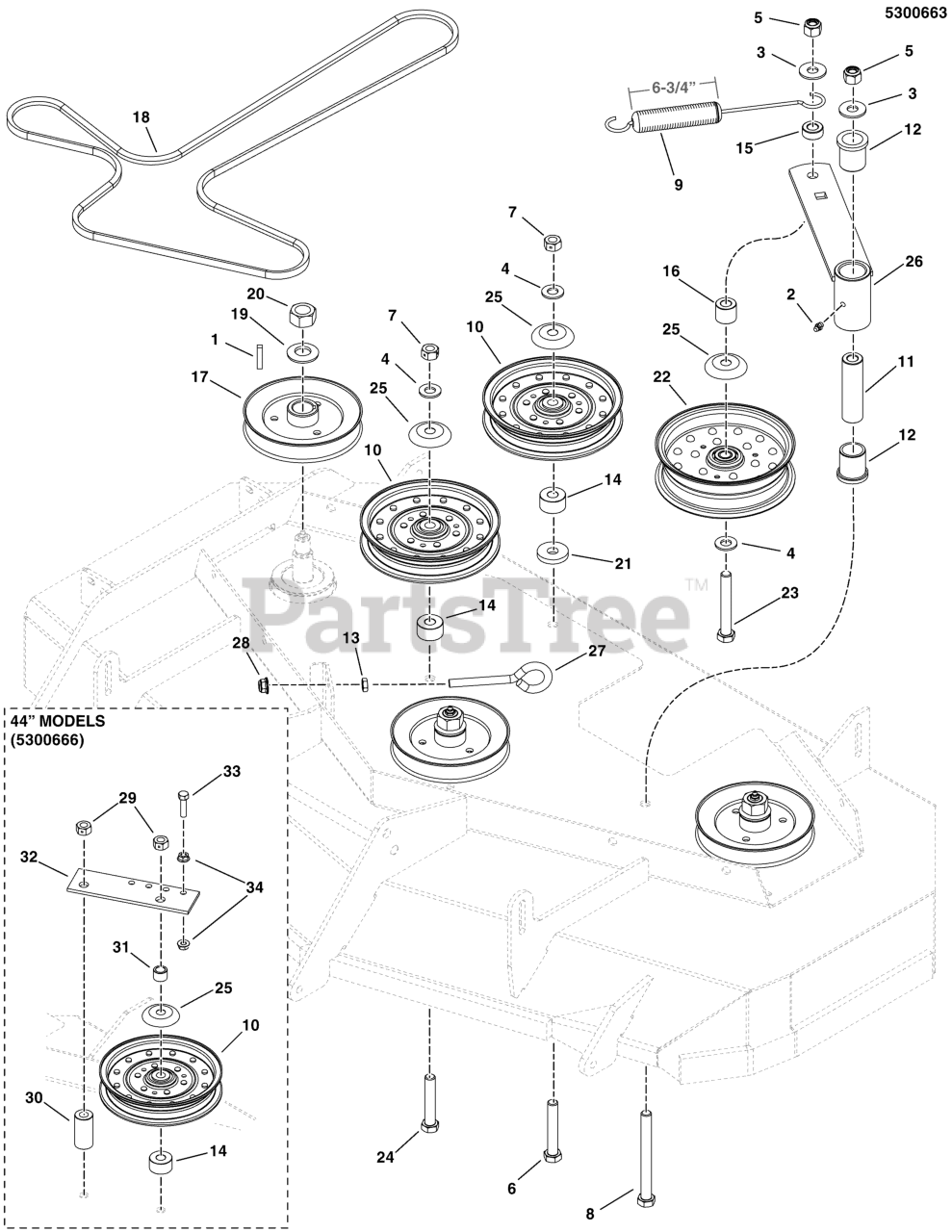

44" & 48" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 2 left!

0

2

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

5

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

6

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, only 1 left!

0

8

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 7

0

9

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

10

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

11

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

Usually ships in 2-12 days

0

12

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

13

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, only 1 left!

0

15

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5044673

SPACER, .52 X 1.00 X .88, PM, CZ
(Superseded to 5044673SM)

$8.99

$

Usually ships in 2-12 days

0

17

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, only 1 left!

0

18a

Ferris 5023496

BELT, BP-SEC, 141.750EL, ARAMID, WRPD
(Superseded to 5023496SM)

Note: (44" Models)

$101.99

$

In Stock, only 1 left!

0

18b

Ferris 5023297

BELT, BP-SEC, 147.40EL, ARAMID, WRPD

Note: (48" Models)

$112.99

$

Usually ships in 2-12 days

0

19

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, only 1 left!

0

22

Ferris 5100529

PULLEY, IDLER, 6.75 OD X 1.62 FACE
(Superseded to 5100529SM)

$76.99

$

In Stock, only 2 left!

0

23

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

Usually ships in 2-12 days

0

24

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

25

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

26

Ferris 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes Bushings & grease fittings.)

$113.99

$

Usually ships in 2-12 days

0

27

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

Usually ships in 2-12 days

0

28

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

29

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, only 1 left!

0

30

Ferris 5043607

SPACER, .50 X 1.00 X 2.00

$

$

Currently unavailable

31

Ferris 5047027

SPACER, .51 X .75 X .56, PM, CZ
(Superseded to 5047027SM)

$5.49

$

Usually ships in 2-12 days

0

32

Ferris 5402555B

PLATE, SPRING ANCHOR - RED

$16.99

$

In Stock, only 1 left!

0

33

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

34

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0
