IS 2000Z (5900619) - Ferris IS2000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Deck Lift Group (S/N: 2000458824 & Below) Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

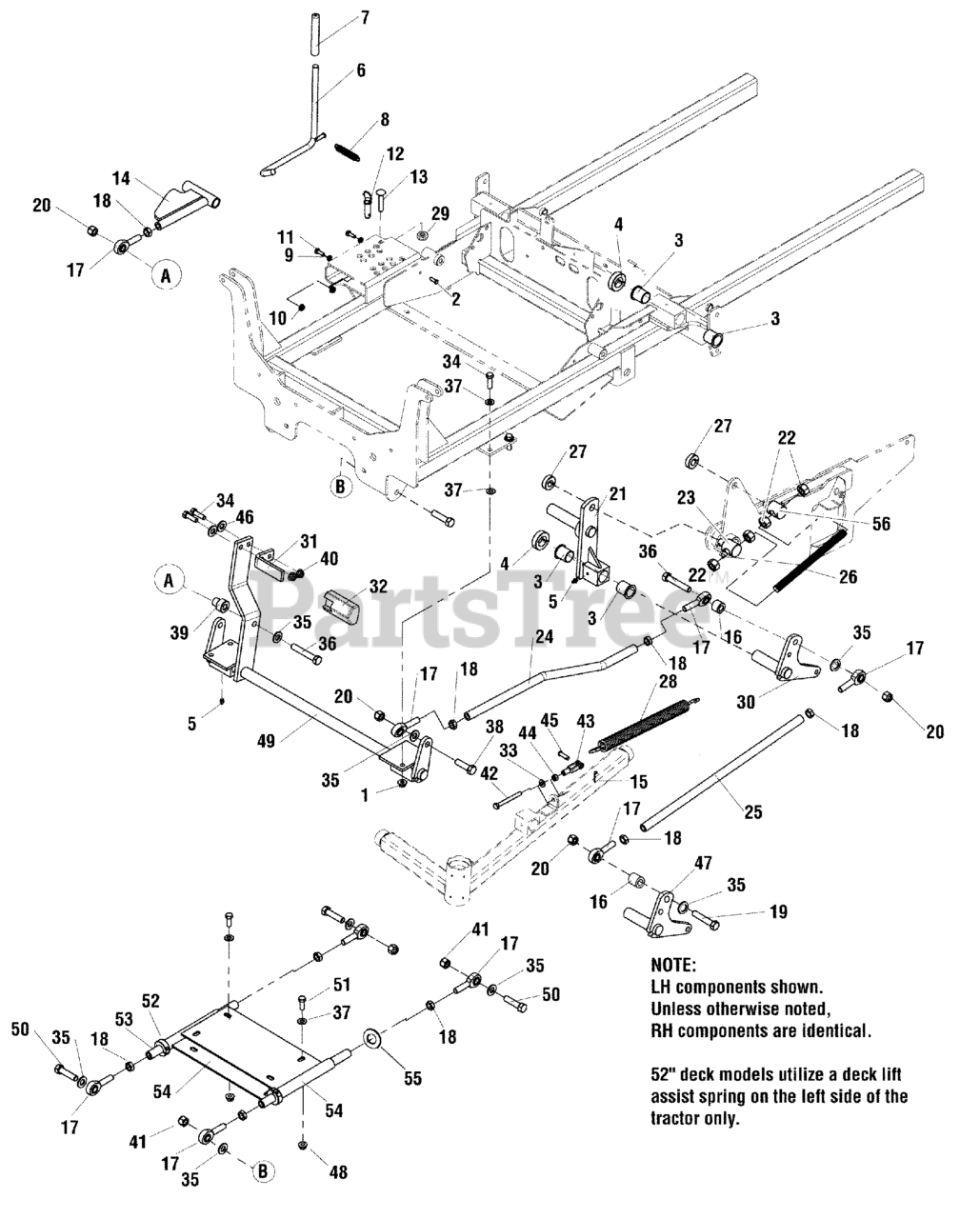

Deck Lift Group (S/N: 2000458824 & Below) Parts Diagram

  • Title
1

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

6

Ferris 5400719A

WELD, ROD DECK LIFT - BLK

$

$

Currently unavailable

7

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

9

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

13

Ferris 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ
(Superseded to 5025146X16SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5400769B

WELD, DECK ADJUST LINK - RED MODEL

$45.99

$

Usually ships in 2-12 days

0

15

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

Note: (*See Footnote)

$3.99

$

In Stock, Qty 20+

0

16

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

17

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

18

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

20

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

21a

Ferris 5400561B

WELD, REAR LIFT - LH - RED

$71.99

$

Usually ships in 2-12 days

0

21b

Ferris 5400562B

WELD, REAR LIFT - RH - RED

Note: (Not Shown)

$71.99

$

Usually ships in 2-12 days

0

22

Ferris 5025040

NUT, Hex, 5/8-11
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5045447

SPRING ROD PIVOT (52" Models Only)
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

24

Ferris 5100149

ROD, DECK LIFT BENT

$

$

Currently unavailable

25

Ferris 5100148

ROD, DECK LIFT OUTER, YZ

$

$

Currently unavailable

26

Ferris 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5020441

COLLAR, 5/8" Split
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

28

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

Note: (*See Footnote)

$49.99

$

In Stock, only 1 left!

0

29

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

30a

Ferris 5400782B

WELD, PIVOT DECK LIFT - LEFT - RED

$39.99

$

Usually ships in 2-12 days

0

30b

Ferris 5400783B

WELD, PIVOT DECK LIFT - RIGHT - RED

Note: (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

31

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

32

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

33

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

Note: (*See Footnote)

$3.99

$

In Stock, Qty 20+

0

34

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

35

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

Usually ships in 2-12 days

0

36

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

37

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

39

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

40

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

41

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

42

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

Note: (*See Footnote)

$3.99

$

In Stock, only 1 left!

0

43

Ferris 5100301

CLEVIS, 5/16-18, 5/16" PIN HOLE, STEEL
(Superseded to 5100301FS)

Note: (*See Footnote)

$11.99

$

Usually ships in 2-12 days

0

44

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

Note: (*See Footnote)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

Note: (*See Footnote)

$4.99

$

Usually ships in 2-12 days

0

46

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

47a

Ferris 5400632B

WELD, PIVOT DECK LIFT - LH - RED

$37.99

$

Usually ships in 2-12 days

0

47b

Ferris 5400651B

WELD, PIVOT DECK LIFT - RH - RED

Note: (Not Shown)

$37.99

$

Usually ships in 2-12 days

0

48

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

49

Ferris 5400634B

WELD, DECK LIFT SHAFT - RED MODEL

$179.99

$

Usually ships in 2-12 days

0

50

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

51

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

52

Ferris 5010114

COLLAR, 3/4" Split
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

53

Ferris 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

$40.99

$

Usually ships in 2-12 days

0

54

Ferris 5400647A

WELD, DECK STABILIZER - BLK

$

$

Currently unavailable

55

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

56a

Ferris 5045856

PIVOT, SPRING ROD

Note: (52" Models)

$

$

Currently unavailable

56b

Ferris 5045447

SPRING ROD PIVOT (52" Models Only)
(Superseded to 5045447SM)

Note: (61" Models)

$25.99

$

Usually ships in 2-12 days

0
