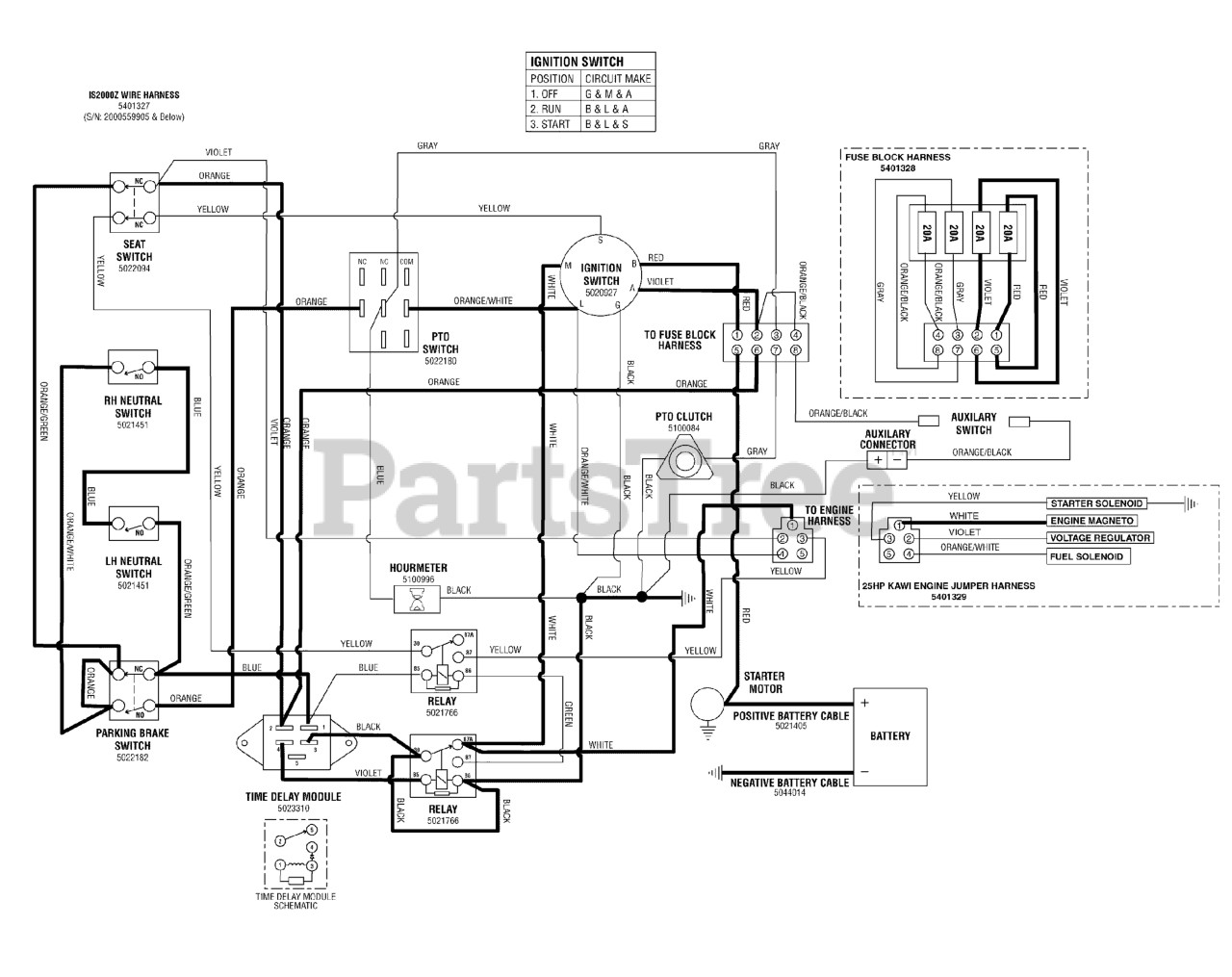

IS 2000Z (5900619) - Ferris IS2000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Electrical Schematic - Ignition Grounding Circuit/Operator Presence - 25HP Kawasaki (S/N: 2000559905 & Below) Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 25hp Kawasaki
