IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge 48" & 52" Mower Deck - Housing, Covers, Spindles & Blades (Side Discharge) Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

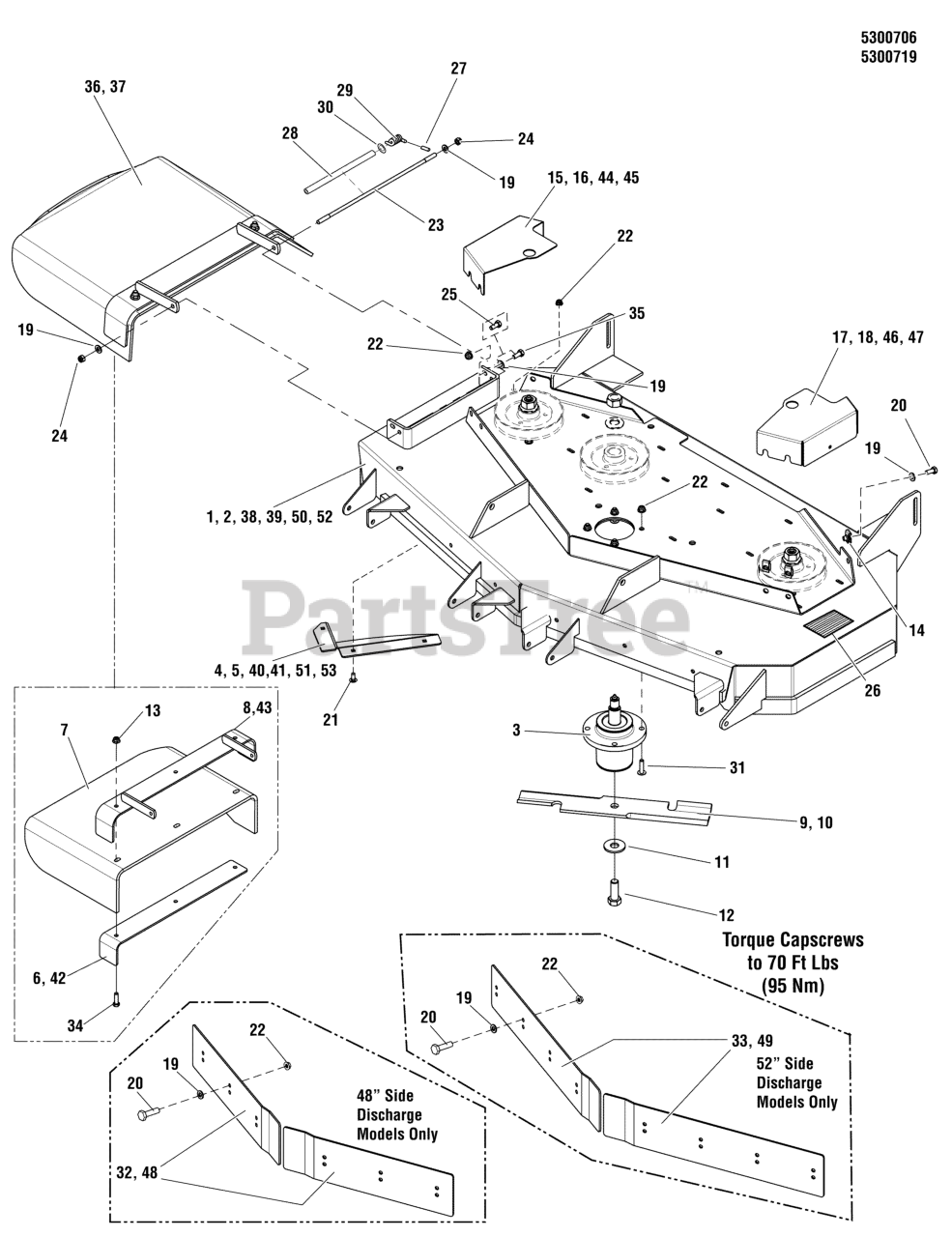

48" & 52" Mower Deck - Housing, Covers, Spindles & Blades (Side Discharge) Parts Diagram

  • Title

1

Ferris 5600114

DECK SHELL W/DECALS, 48 - IS2000YAN -RED

Note: (48" Side Only)

$

$

Currently unavailable

2

Ferris 5600118

DECK SHELL W/DECALS, 52 - IS2000YAN -RED

Note: (52" Side - S/N: 2012612045 & Below Only)

$1880.99

$

Usually ships in 2-12 days

0

3

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

4

Ferris 5401271A

WELD, DISCHARGE BAFFLE, 48" - BLK

Note: (48" Side Only)

$

$

Currently unavailable

5

Ferris 5401254B

WELD, DISCHARGE BAFFLE, 52" - RED MODEL
(Superseded to 5401254BFS)

Note: (52" Side - S/N: 2012612045 & Below Only)

$48.99

$

In Stock, only 2 left!

0

6

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

7

Ferris 5402404

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

8

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

Usually ships in 2-12 days

0

9

Ferris 5023270

BLADE, 16.25", SAND
(Superseded to 5020843ASM)

Note: (48" Side Only)

$24.99

$

Usually ships in 2-12 days

0

10

Ferris 5023271

BLADE, 18", SAND

Note: (52" Side Only)

$

$

Currently unavailable

11

Ferris 5025477

WASHER, 5/8" GRADE 8
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 15

0

12

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

15

Ferris 5401726B

GUARD, 48" DECK, RH - IS2000 YANMAR -RED MODEL
(Superseded to 5401726BFS)

Note: (48" Side Only)

$26.99

$

Usually ships in 2-12 days

0

16

Ferris 5401605B

GUARD, 52" DECK, IS2000 - RH - RED MODEL
(Superseded to 5401605BFS)

Note: (52" Side Only)

$27.99

$

In Stock, only 2 left!

0

17

Ferris 5401727B

GUARD, 48" DECK, LH - IS2000 YANMAR - RED MODEL
(Superseded to 5401727BFS)

Note: (48" Side Only)

$26.99

$

Usually ships in 2-12 days

0

18

Ferris 5401606B

GUARD, 52" DECK, IS2000 - LH - RED MODEL

Note: (52" Side Only)

$22.99

$

Usually ships in 2-12 days

0

19

Ferris 5025155

WASHER, 5/16" SAE

Note: (48" Side Only)

$

$

Currently unavailable

19

Ferris 5025155

WASHER, 5/16" SAE

Note: (52" Side Only)

$

$

Currently unavailable

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (48" Side Only)

$3.99

$

In Stock, Qty 6

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (52" Side Only)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (48" Side Only)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (52" Side Only)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

24

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (48"Side Only)

$3.99

$

In Stock, Qty 6

0

26

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

27

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5050086X8

SPACER, TORSION SPRING,9.63 LG
(Superseded to 5050086X8SM)

$8.99

$

In Stock, only 1 left!

0

29

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

30

Ferris 5025164

WASHER, 5/16" FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5023156

BOLT, 5/16-18 X 1 1/4" FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

32

Ferris 5402452B

BAFFLES. FRONT DISCHARGE, 48 YAN - RED MODEL

Note: (48" Side Only)

$41.99

$

Usually ships in 2-12 days

0

33

Ferris 5402476A

BAFFLES. FRONT DISCHARGE, 52 YAN - BLK

Note: (52" Side Only)

$37.99

$

Usually ships in 2-12 days

0

34

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

Note: (52" Side Only)

$3.49

$

In Stock, only 1 left!

0

36

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (Includes Ref 4 - 6)

$

$

Not available

37

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (Includes Ref 4 - 6)

$

$

Not available

38

Ferris 5600113

DECK SHELL W/DECALS, 48 - IS2000YAN -ORG

Note: (48" Side Only)

$

$

Currently unavailable

39

Ferris 5600117

DECK SHELL W/DECALS, 52 - IS2000YAN -ORG

Note: (52" Side - S/N: 2012612045 & Below Only)

$

$

Currently unavailable

40

Ferris 5401271C

WELD, DISCHARGE BAFFLE, 48" - ORANGE MODEL
(Superseded to 5401271CSM)

Note: (48" Side Only)

$39.99

$

Usually ships in 2-12 days

0

41

Ferris 5401254C

WELD, DISCHARGE BAFFLE, 52" - ORANGE MODEL
(Superseded to 5401254CSM)

Note: (52" Side - S/N: 2012612045 & Below Only)

$45.99

$

Usually ships in 2-12 days

0

42

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

43

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

Usually ships in 2-12 days

0

44

Ferris 5401726C

GUARD, 48" DECK, RH - IS2000 YANMAR - ORANGE MODEL

Note: (48" Side Only)

$

$

Currently unavailable

45

Ferris 5401605C

GUARD, 52" DECK, IS2000 - RH - ORANGE MODEL

Note: (52" Side Only)

$

$

Currently unavailable

46

Ferris 5401727C

GUARD, 48" DECK, LH - IS2000 YANMAR - ORANGE MODEL

Note: (48" Side Only)

$

$

Currently unavailable

47

Ferris 5401606C

GUARD, 52" DECK, IS2000 - LH - ORANGE MODEL

Note: (52" Side Only)

$

$

Currently unavailable

48

Ferris 5402452C

BAFFLES. FRONT DISCHARGE, 48 YAN - ORANGE MODEL

Note: (48" Side Only)

$43.99

$

Usually ships in 2-12 days

0

49

Ferris 5402476A

BAFFLES. FRONT DISCHARGE, 52 YAN - BLK

Note: (52" Side Only)

$37.99

$

Usually ships in 2-12 days

0

50

Ferris 5600155

DECK SHELL W/ DECALS, 52, IS2000YAN - RED MODEL

Note: (52" Side - S/N: 2012612046 & Above Only)

$

$

Currently unavailable

51

Ferris 5403548A

PLATE, DEFLECTOR, 52" - BLK

Note: (52" Side - S/N: 2012612046 & Above Only)

$19.99

$

Usually ships in 2-12 days

0

52

Ferris 5600156

DECK SHELL W/ DECALS, 52, IS2000YAN - ORANGE MODEL

Note: (52" Side - S/N: 2012612046 & Above Only)

$

$

Currently unavailable

53

Ferris 5403548A

PLATE, DEFLECTOR, 52" - BLK

Note: (52" Side - S/N: 2012612046 & Above Only)

$19.99

$

Usually ships in 2-12 days

0
