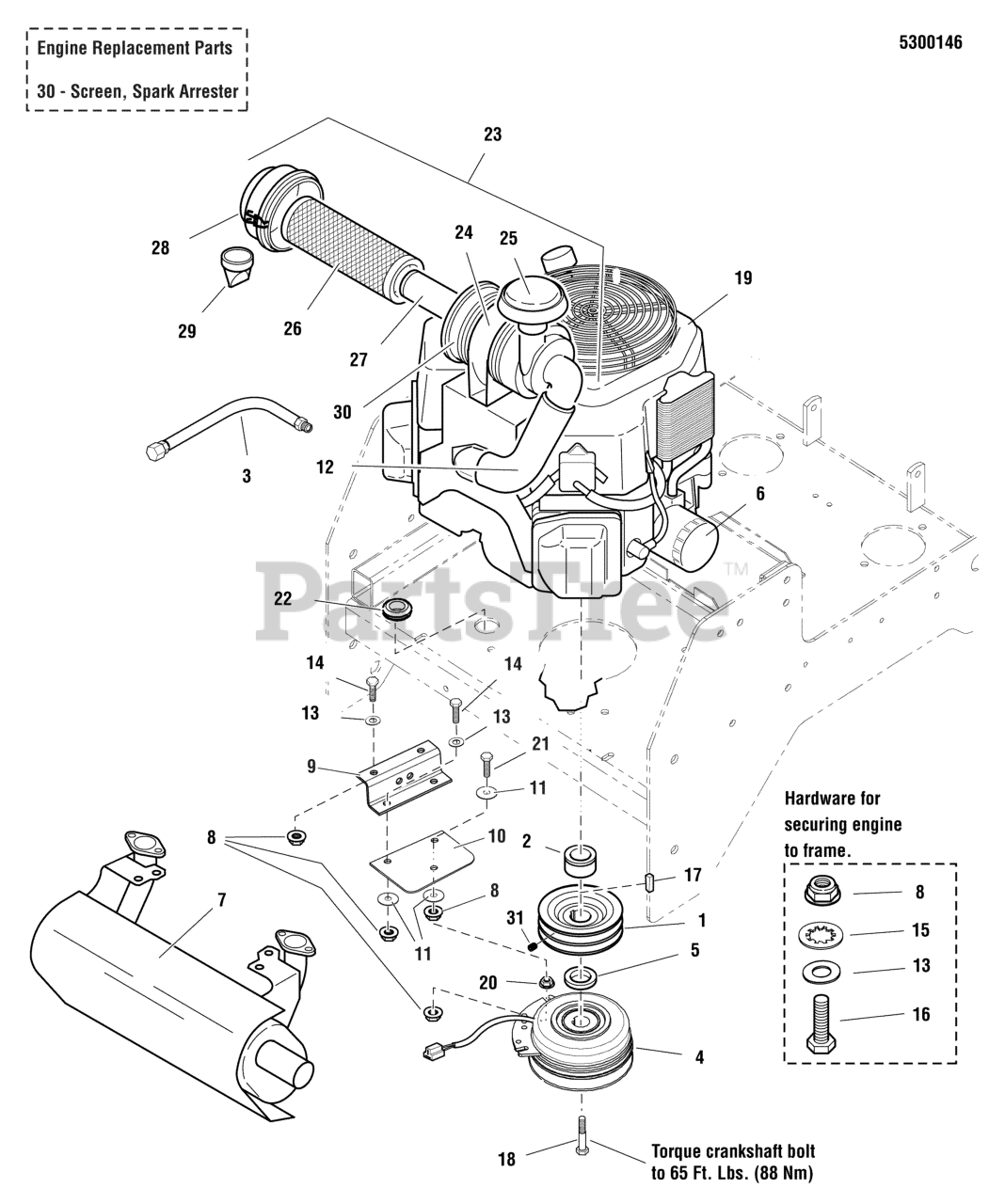

IS 2000Z (5900817) - Ferris IS2000Z Series 61" Zero-Turn Mower, 27hp Kohler Engine & PTO Group - Kohler Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 27hp Kohler

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

Ferris 5047075

PULLEY CRANKSHAFT (DOUBLE A)

$128.99

$

Usually ships in 2-12 days

0

2

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

4

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

Usually ships in 2-12 days

0

5

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

In Stock, only 1 left!

0

6

Ferris 5021144X1

OIL FILTER (12 050 01)

$

$

Not available

7

Ferris 5101275

MUFFLER, KOHLER 21 HP - 27 HP
(Superseded to 5101275SM)

$329.99

$

Usually ships in 2-12 days

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Ferris 5044617

WASHER, CLUTCH ANCHOR
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Ferris 5022892X9

INLET HOSE (25 326 53-S)

$

$

Currently unavailable

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5102864

BOLT, CRANKSHAFT 7/16 X 2 1/2
(Superseded to 5102864YP)

$5.49

$

Usually ships in 2-12 days

0

19

ENGINE, 27HP KOHLER, VERTICAL

$

$

Not available

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5022892X4

KIT, 5.5" HD AIR CLEANER (24 743 22-S)

Note: (Includes Ref Nos. 24 - 30.)

$376.99

$

Usually ships in 2-12 days

0

24

Ferris 5022892X8

HOUSING MOUNT BRACKET (25 126 02-S)

$142.99

$

Usually ships in 2-12 days

0

25

Ferris 5022892X3

RAIN COVER

$80.99

$

Usually ships in 2-12 days

0

26

Ferris 5022892X1

PRIMARY PAPER ELEMENT

$

$

Currently unavailable

27

Ferris 5022892X2

SECONDARY ELEMENT

$

$

Currently unavailable

28

Ferris 5022892X5

END CAP (25 096 06-S)

$112.99

$

Usually ships in 2-12 days

0

29

Ferris 5022892X6

DUST VALVE (24 462 07-S)

$

$

Currently unavailable

30

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

31

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0
