IS 2100Z (5901529) - Ferris IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge 61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge

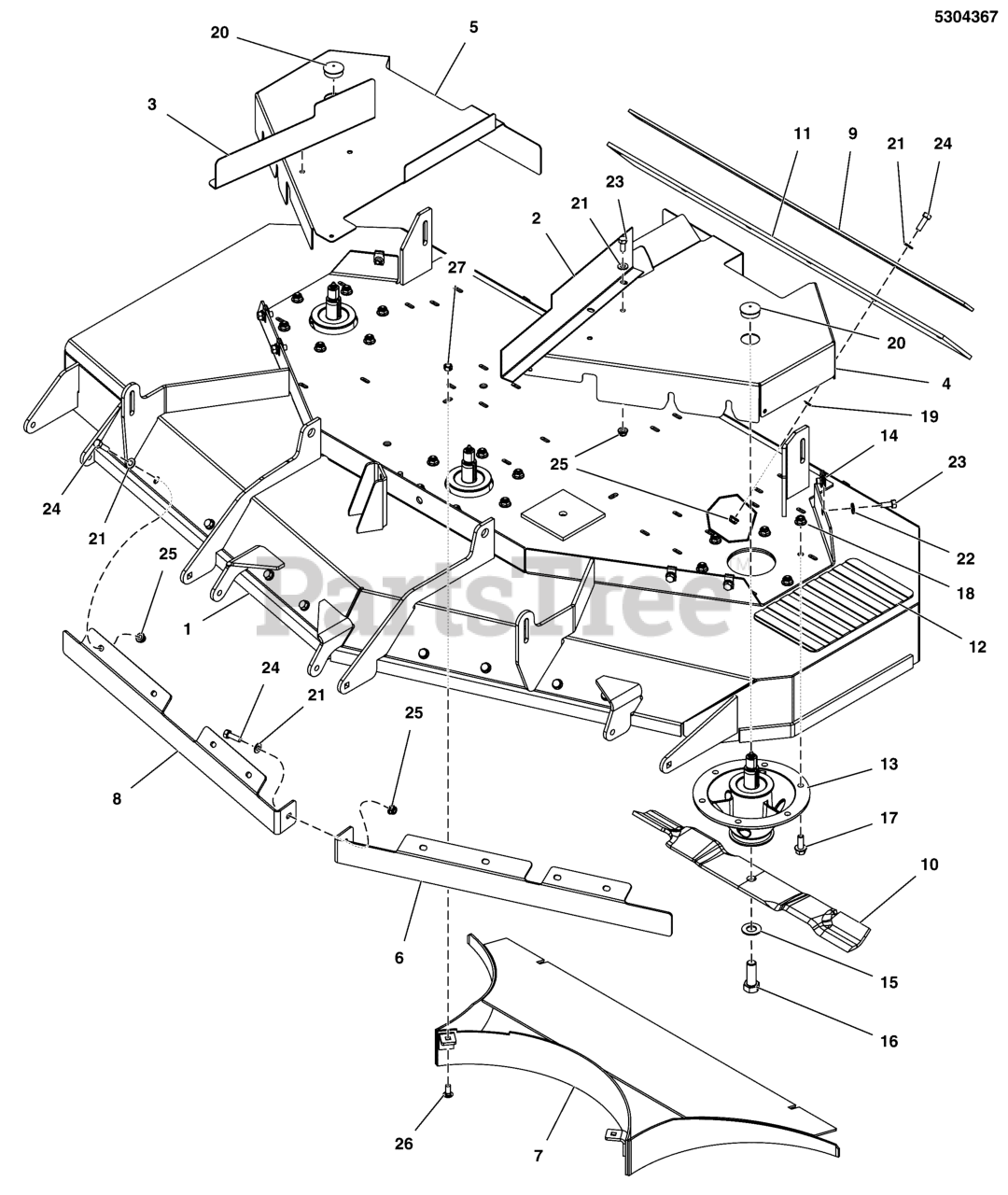

61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5600943

DECK SHELL W/DECALS,61RDCE,2100,5414783B

$

$

Currently unavailable

2

Ferris 5414963B

PLATE, DECK GUARD, SHIELD, 61, LH - RED
(Superseded to 5414963BFS)

$18.99

$

Usually ships in 2-12 days

0

3

Ferris 5414962B

PLATE, DECK GUARD, SHIELD, 61, RH - RED
(Superseded to 5414962BFS)

$17.99

$

Usually ships in 2-12 days

0

4

Ferris 5414961B

PLATE, DECK GUARD, 61, LH - RED

$

$

Currently unavailable

5

Ferris 5414960B

PLATE, DECK GUARD, 61, RH - RED

$

$

Currently unavailable

6

Ferris 5414791B

BAFFLE, BLOWOUT, 61 iCD, LH - RED
(Superseded to 5414791BFS)

$32.99

$

Usually ships in 2-12 days

0

7

Ferris 5414787A

WELD, REAR BAFFLE, 61RD, SHRT - BLK

$234.99

$

Usually ships in 2-12 days

0

8

Ferris 5414758B

BAFFLE, BLOWOUT, 61 ICD, RH - RED
(Superseded to 5414758BFS)

$34.99

$

Usually ships in 2-12 days

0

9

Ferris 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

10

Ferris 5103305S

BLADE SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$86.99

$

Usually ships in 2-12 days

0

11

Ferris 5102015

FLAP, STRIPER, 52 DECK
(Superseded to 5102015YP)

$66.99

$

Usually ships in 2-12 days

0

12

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$16.99

$

In Stock, only 2 left!

0

13

Ferris 5100993

SPINDLE, ASSM, CAST IRON - 8.0
(Superseded to 5100993SM)

$179.99

$

In Stock, only 1 left!

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

15

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$4.49

$

In Stock, Qty 13

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$4.49

$

In Stock, Qty 11

0

23

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0
