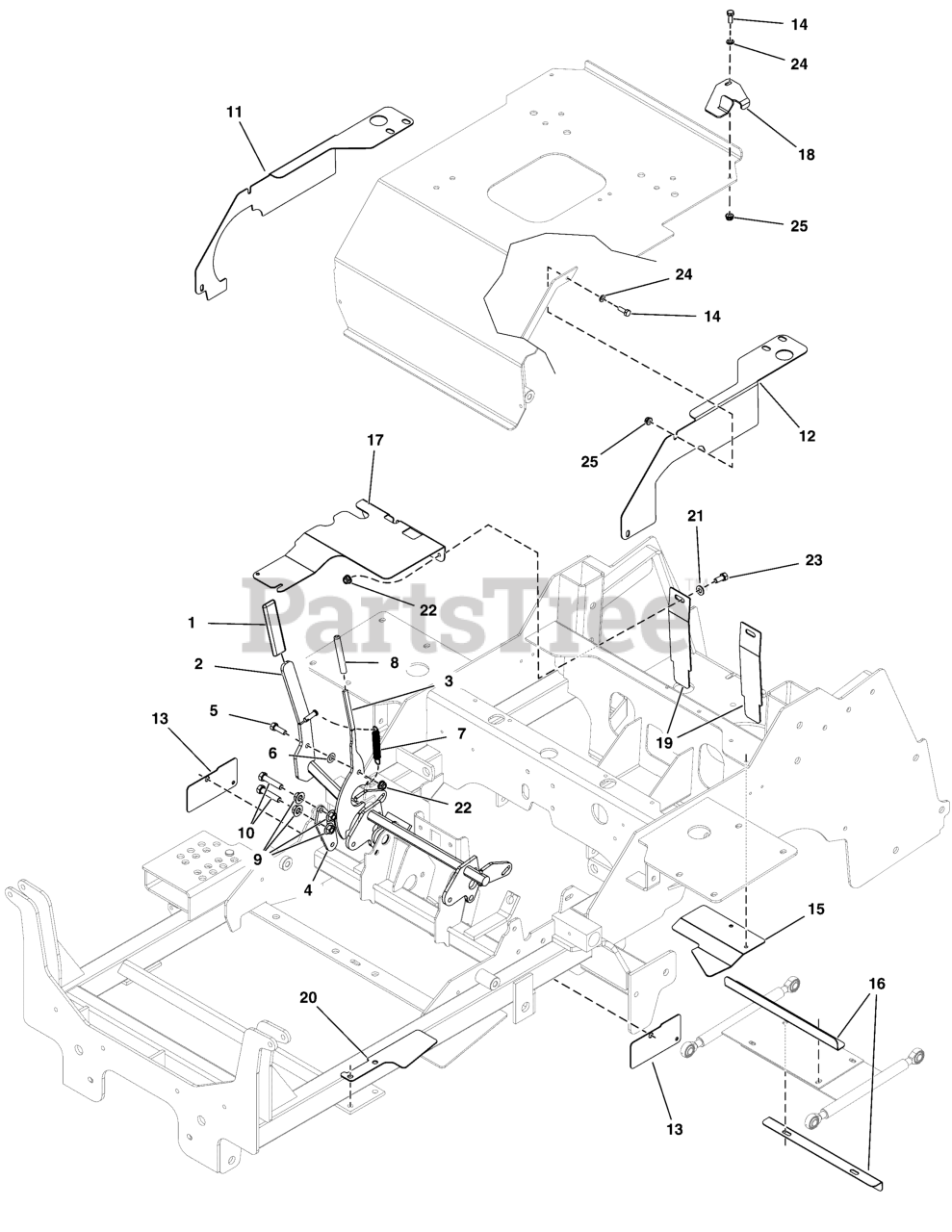

IS 2100Z (5901830) - Ferris IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton CE Guarding - Engine Compartment & Parking Brake Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

CE Guarding - Engine Compartment & Parking Brake Parts Diagram

  • Title

1

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, only 1 left!

0

2

Ferris 5416141A

WELD, HANDLE, BRAKE, IS2100 CE - BLK

$106.99

$

Usually ships in 2-12 days

0

3

Ferris 5414527A

LEVER, BRAKE, IS2600 EU - BLK

$11.99

$

Usually ships in 2-12 days

0

4

Ferris 5414526B

PLATE, PIVOT MOUNT, BRAKE,IS2600 EU, RED
(Superseded to 5414526BFS)

$7.99

$

Usually ships in 2-12 days

0

5

Ferris 1960086

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK
(Superseded to 1960086SM)

$4.99

$

In Stock, only 3 left!

0

6

Ferris 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

7

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

8

Ferris 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

10

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5414947B

PLATE, GUARD, SEAT PLATFORM, RH - RED

$18.99

$

Usually ships in 2-12 days

0

12

Ferris 5414948B

PLATE, GUARD, SEAT PLATFORM, LH - RED

$19.99

$

Usually ships in 2-12 days

0

13

Ferris 5416386B

PLATE, CRADLE GUARD, CE - RED
(Superseded to 5416386BFS)

$6.99

$

Usually ships in 2-12 days

0

14

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

15

Ferris 84008530

SHIELD, Debris

$

$

Currently unavailable

16

Ferris 5414467A

PLATE, GUARD, PULLER BAR,IS2600Z EU, BLK

$9.49

$

Usually ships in 2-12 days

0

17

Ferris 84008528

COVER, Fan

$

$

Currently unavailable

18

Ferris 84008529

LATCH

$

$

Currently unavailable

19

Ferris 5414954A

PLATE, COVER, TRANSMISSION - BLK

$7.99

$

Usually ships in 2-12 days

0

20

Ferris 5413453B

PLATE, DECK SHIELD, FRAME - LH - RED
(Superseded to 5413453BFS)

$7.49

$

Usually ships in 2-12 days

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

24

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0
