IS 2600Z (5901722) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 61" Mower Deck Group - Housing, Covers, Spindles & Blades (Side Discharge) Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

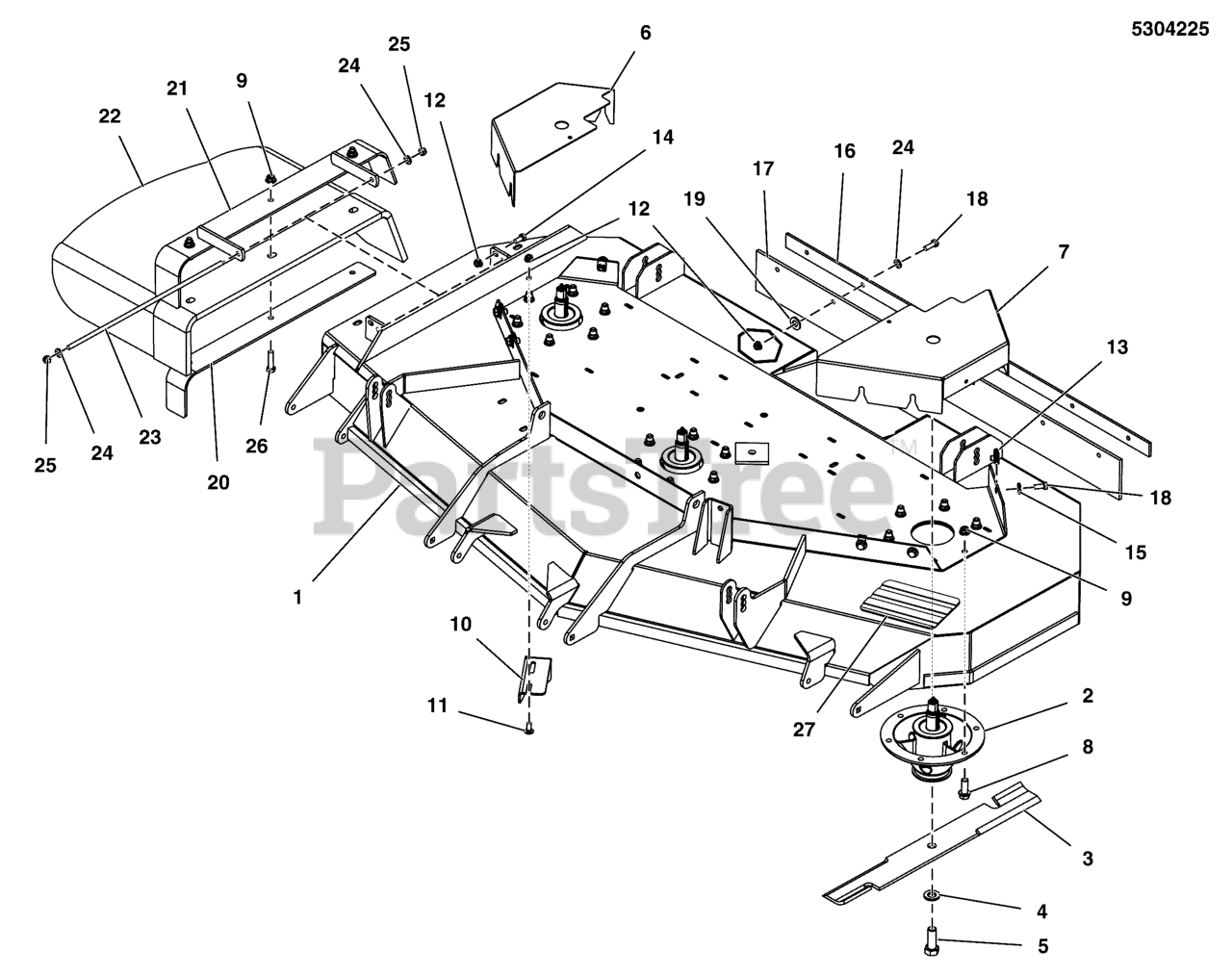

61" Mower Deck Group - Housing, Covers, Spindles & Blades (Side Discharge) Parts Diagram

  • Title

1

Ferris 5600911

DECK SHELL W/ DECALS, 61SD, IS2600Z-DOM (5413818B)

Note: (S/N: 2017954955 & Below)

$2792.99

$

Usually ships in 2-12 days

0

1

Ferris 5601131

DECK SHELL W/DECALS, 2600Z-61 (5422059B)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$

$

Currently unavailable

2

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$179.99

$

In Stock, only 1 left!

0

3

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 Blades)

$83.99

$

In Stock, only 4 left!

0

4

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5400791B

GUARD, 61", RH - RED
(Superseded to 5400791BFS)

$39.99

$

Usually ships in 2-12 days

0

7

Ferris 5414196B

GUARD, 61", LH - RED
(Superseded to 5414196BFS)

$43.99

$

Usually ships in 2-12 days

0

8

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

In Stock, only 1 left!

0

11

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$4.49

$

In Stock, Qty 11

0

16

Ferris 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$40.99

$

Usually ships in 2-12 days

0

17

Ferris 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$95.99

$

Usually ships in 2-12 days

0

18

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

19

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$29.99

$

In Stock, Qty 5

0

21

Ferris 84008171

MOUNT

$92.99

$

Usually ships in 2-12 days

0

22

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

23

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

24

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

25

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

26

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$16.99

$

In Stock, only 2 left!

0
