IS 2600Z (5901930) - Ferris IS2600Z Series 52" Zero-Turn Mower, 24hp Yanmar 52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

IS2600Z Series 52" Zero-Turn Mower, 24hp Yanmar

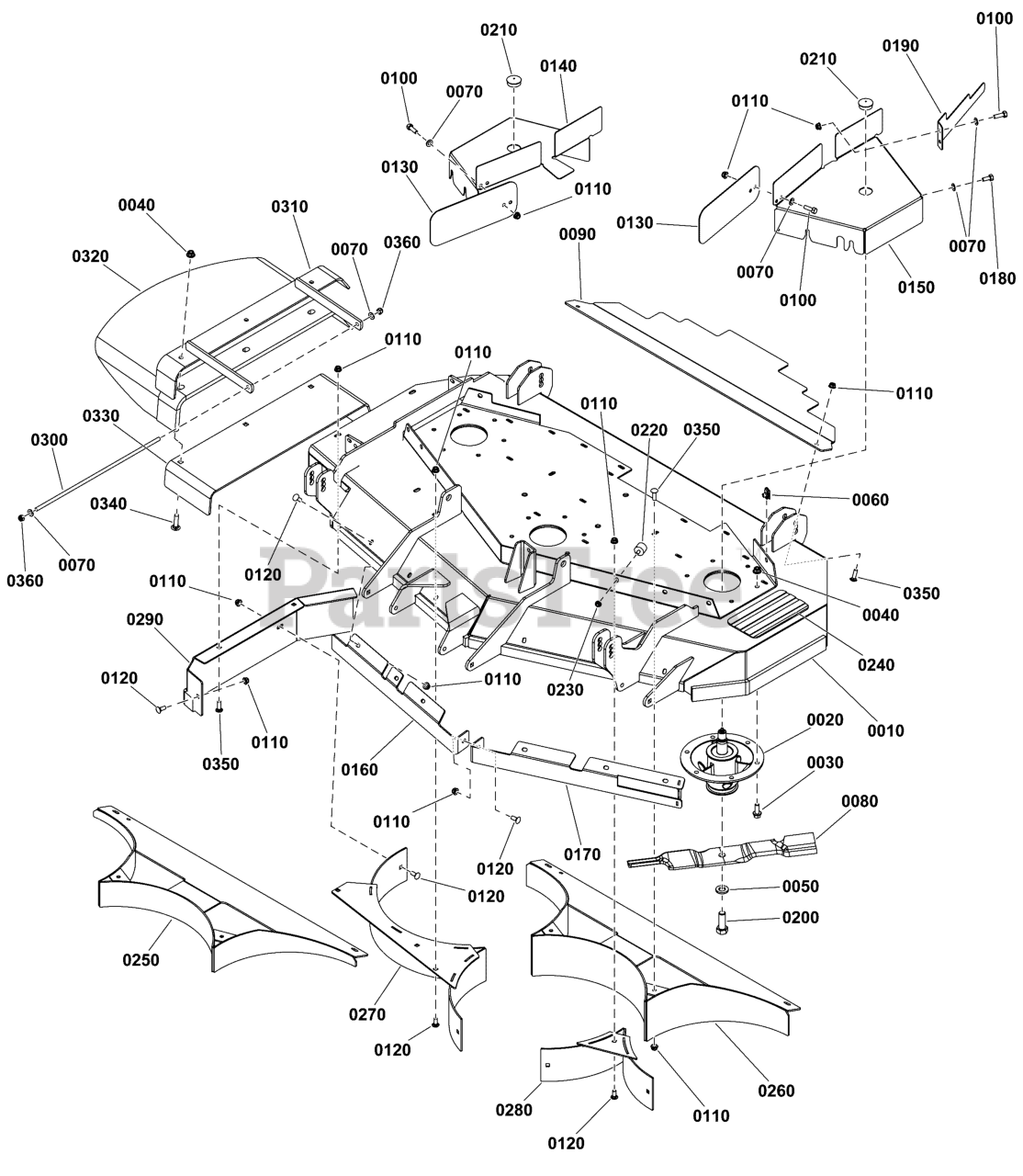

52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601363

DECK SHELL W/DECALS, 52, 3IN1, 5422131B

$

$

Currently unavailable

0020

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$179.99

$

In Stock, only 1 left!

0

0030

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (Torque spindle mounting bolt to 30 ft-lbs (41 Nm)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0050

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0070

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0080

Ferris 5103304S

BLADE SET, MULCH, 52 DECK (SET OF 3)

Note: (Set of 3 blades)

$87.99

$

Usually ships in 2-12 days

0

0090

Ferris 5422146AA

PLATE, REAR DEFLECTOR, 52, 3IN1 - BLK

$

$

Currently unavailable

0100

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

0110

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0130

Ferris 5414514B

PLATE, GUARD, DECK - IS2600Z EU - RED
(Superseded to 5414514BFS)

$11.99

$

Usually ships in 2-12 days

0

0140

Ferris 84007747

PLATE, Guard, Right

$52.99

$

Usually ships in 2-12 days

0

0150

Ferris 5414641B

PLATE, GUARD, DECK, LH, 52 CE - RED
(Superseded to 5414641BFS)

$64.99

$

Usually ships in 2-12 days

0

0160

Ferris 5414590B

BAFFLE, FRONT DISCHARGE RH - RED
(Superseded to 5414590BFS)

$30.99

$

Usually ships in 2-12 days

0

0170

Ferris 5422323B

WELD, BAFFLE, FRONT DISCHARGE, LH - RED

$

$

Currently unavailable

0180

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

0190

Ferris 5414945B

PLATE,DECK BELT GUARD,REAR,LH 52CE - RED
(Superseded to 5414945BFS)

$11.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm)

$4.49

$

Usually ships in 2-12 days

0

0210

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$4.49

$

In Stock, Qty 13

0

0220

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$20.99

$

In Stock, only 1 left!

0

0230

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.99

$

In Stock, only 1 left!

0

0250

Ferris 84008525

BAFFLE, Rear

$

$

Currently unavailable

0260

Ferris 84008524

BAFFLE, Rear

$235.99

$

Usually ships in 2-12 days

0

0270

Ferris 84008519

BAFFLE, Front Discharge Side

$

$

Currently unavailable

0280

Ferris 84008520

BAFFLE, Front Trim Side

$

$

Currently unavailable

0290

Ferris 84008521

PLATE, Blockoff

$

$

Currently unavailable

0300

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0310

Ferris 84008047

FRAME, Chute

$91.99

$

Usually ships in 2-12 days

0

0320

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0330

Ferris 84008077

PLATE, Support

$129.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$4.49

$

In Stock, only 1 left!

0

0350

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0360

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0
