IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3630 & Below) Tires & Wheels Group (S/N: 1730 & below) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

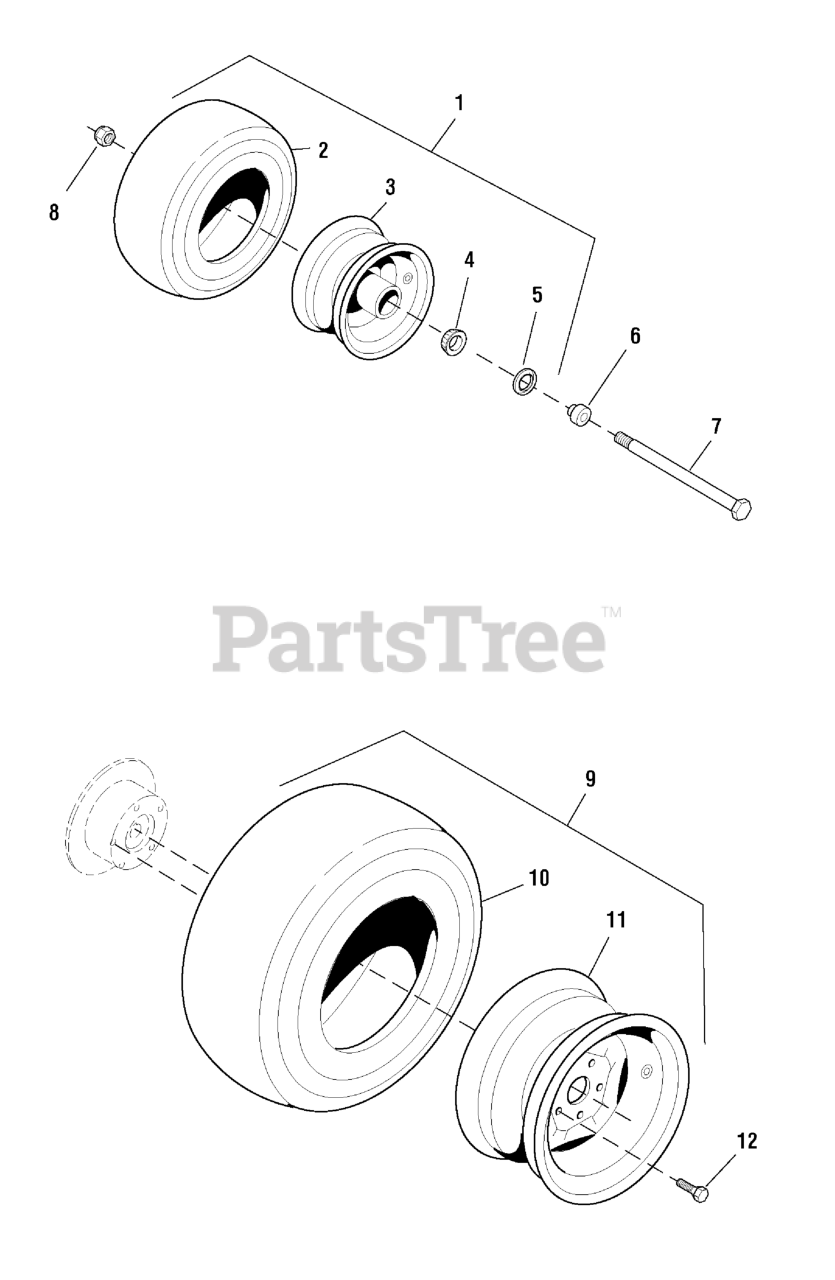

Tires & Wheels Group (S/N: 1730 & below) Parts Diagram

  • Title

1

Ferris 5022631S

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete
(Superseded to 5022631SSM)

Note: (Includes Ref No. 2 - 5 & 13)

$172.99

$

In Stock, only 3 left!

0

2

Ferris 5022029X1

TIRE, Front, 13 x 5.0 x 6

$112.99

$

Usually ships in 2-12 days

0

3

Ferris 5022631SX1

WHEEL ASSEMBLY, for 13 x 5.0 x 6 Tire, Complete
(Superseded to 5022631SX1SM)

Note: (Includes Ref No. 6 & 7)

$105.99

$

Usually ships in 2-12 days

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$13.99

$

In Stock, Qty 20+

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$11.99

$

In Stock, Qty 7

0

7

Ferris 5025017X60

BOLT, 1/2-13 x 7-1/2
(Superseded to 5025488X60FS)

$15.99

$

Usually ships in 2-12 days

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5022396S

WHEEL & TIRE ASSEMBLY, 23 x 10.5 x 12, Complete

Note: (Includes Ref No. 10 & 11)

$

$

Currently unavailable

10

Ferris 5022396X1

TIRE, Rear, 23 x 10.5 x 12
(Superseded to 1722830SM)

$248.99

$

Usually ships in 2-12 days

0

11

Ferris 5022898X2

WHEEL ASSEMBLY, 12 x 8.5
(Superseded to 5023364)

$231.99

$

Usually ships in 2-12 days

0

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$10.99

$

Usually ships in 2-12 days

0

13

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (Not Shown)

$10.99

$

In Stock, only 3 left!

0
