IS 3000Z (5901058) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki 61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 251 & above) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

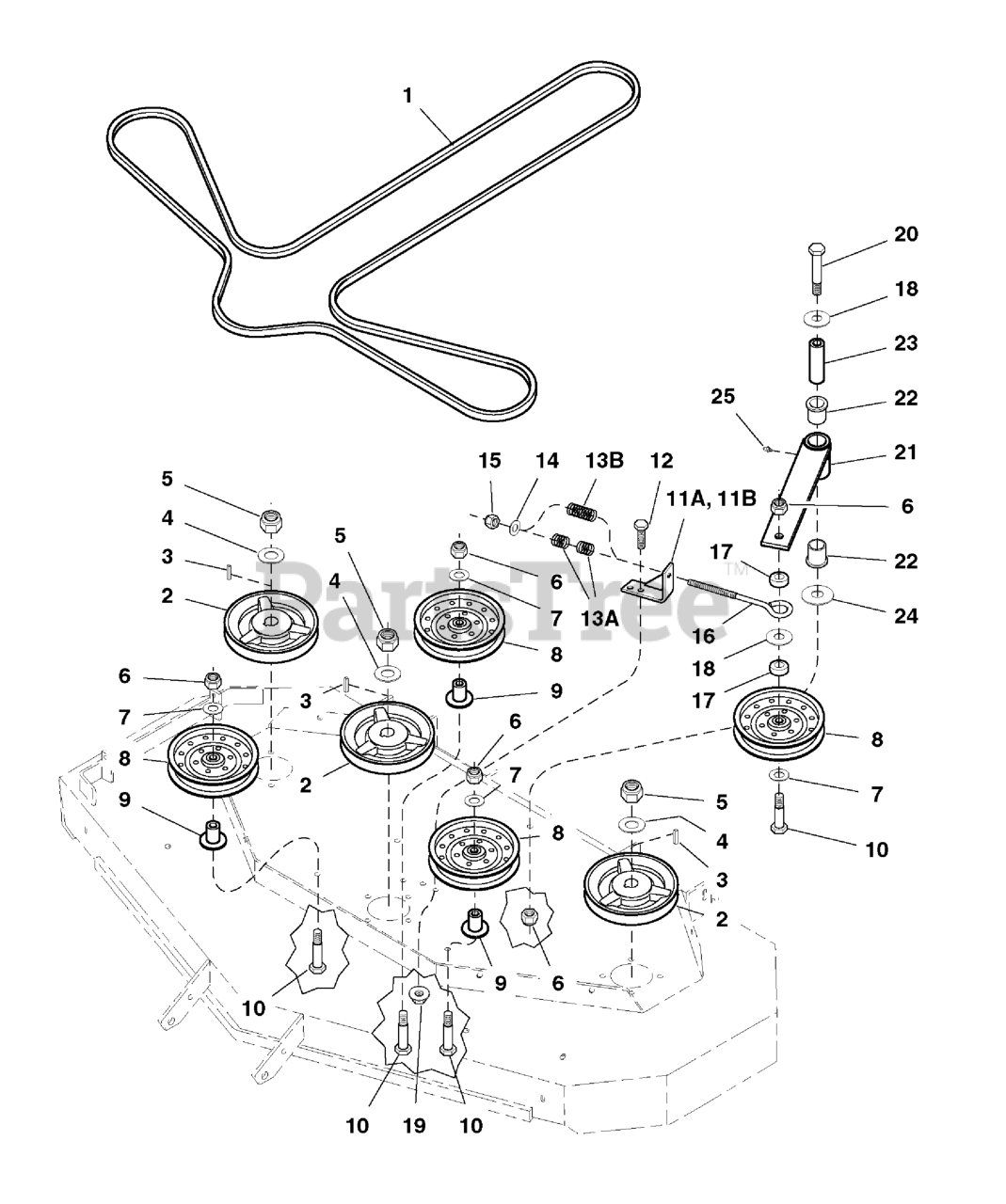

61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 251 & above) Parts Diagram

  • Title

1

Ferris 5103871

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC
(Superseded to 5103671)

$148.99

$

Usually ships in 2-12 days

0

2

Ferris 5046466

SPINDLE PULLEY
(Superseded to 5046466SM)

$124.99

$

Usually ships in 2-12 days

0

3

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

4

Ferris 5025318

WASHER, Spring

$10.99

$

Usually ships in 2-12 days

0

5

Ferris 5025319

NUT, 5/8-18 Hex Nylon Lock
(Superseded to 5025319SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

In Stock, only 3 left!

0

7

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

8

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

9

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 2 left!

0

10

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 6

0

11A

Ferris 5046432B

SPRING ANCHOR
(Superseded to 5046950BFS)

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$26.99

$

Usually ships in 2-12 days

0

11B

Ferris 5046950B

WELD, SPRING ANCHOR
(Superseded to 5046950BFS)

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$26.99

$

Usually ships in 2-12 days

0

12

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

13A

Ferris 5021680

SPRING, Compression
(Superseded to 5021680SM)

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$35.99

$

Usually ships in 2-12 days

0

13B

Ferris 5022788

SPRING, Compression
(Superseded to 5022788SM)

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$38.99

$

In Stock, only 1 left!

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

16

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.99

$

In Stock, Qty 5

0

17

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 3 left!

0

18

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 2 left!

0

19

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

20

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

21

Ferris 5045019B

IDLER ARM
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

22

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

23

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$25.99

$

In Stock, only 2 left!

0

24

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$4.49

$

In Stock, Qty 20+

0

25

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0
