IS 3000Z (5901058) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Pump Drive Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

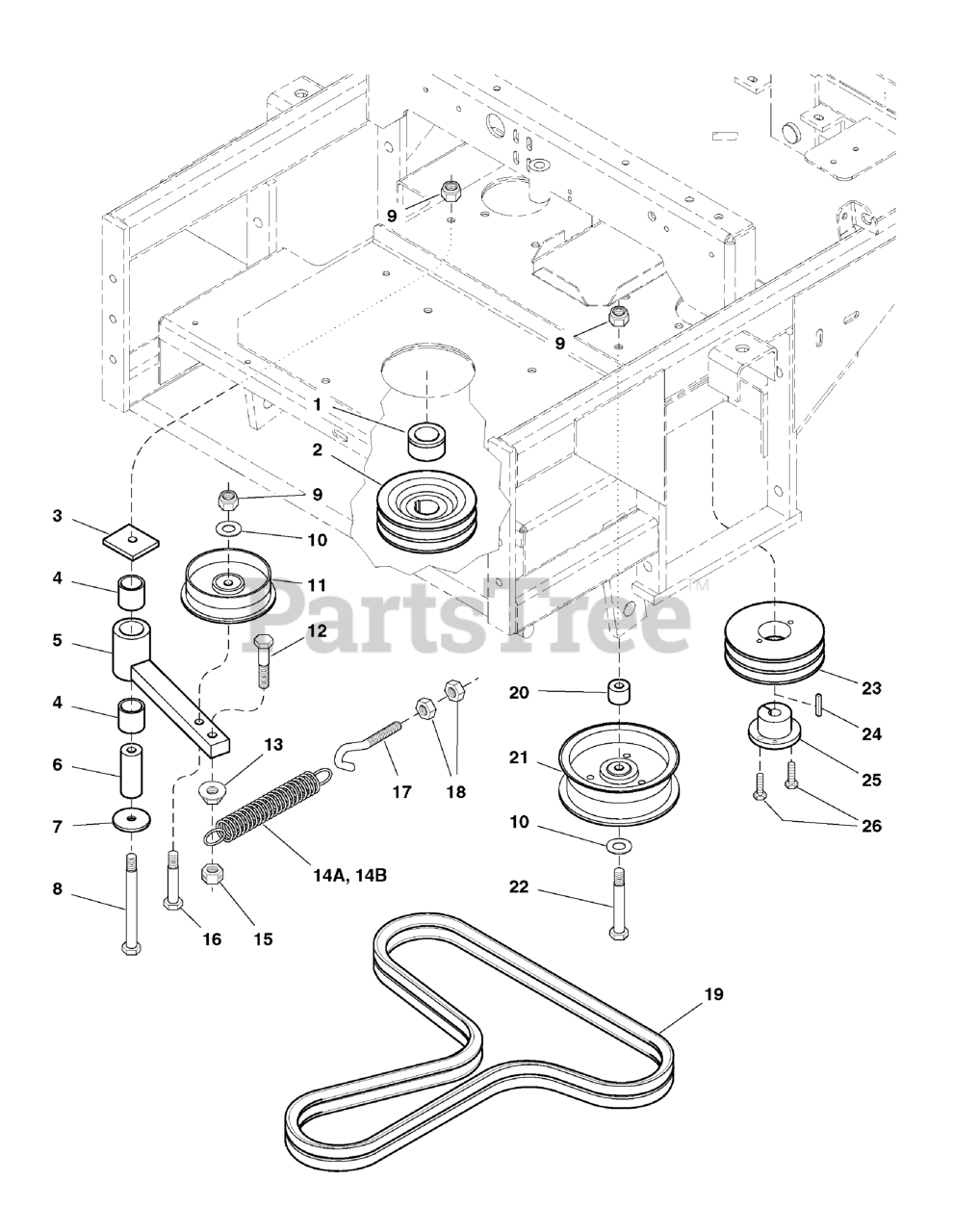

Pump Drive Group Parts Diagram

  • Title

1

Ferris 5047033

SPACER, 1.13 x 1.75 x 1.03
(Superseded to 5047033SM)

$14.99

$

In Stock, only 1 left!

0

2

Ferris 5047075

CRANKSHAFT PULLEY

$128.99

$

Usually ships in 2-12 days

0

3

Ferris 5045090

SPACER, Idler Pivot
(Superseded to 5045090SM)

$9.99

$

Usually ships in 2-12 days

0

4

Ferris 5022157

BUSHING, Brass
(Superseded to 5022157SM)

$12.99

$

In Stock, only 4 left!

0

5

Ferris 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$77.99

$

Usually ships in 2-12 days

0

6

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$28.99

$

In Stock, only 2 left!

0

7

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$4.49

$

In Stock, Qty 9

0

8

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$4.49

$

In Stock, Qty 9

0

9

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 15

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5103808

PULLEY, Idler (Single Flange)

$

$

Currently unavailable

12

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 18

0

13

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

14a

Ferris 5021826

SPRING, Extension

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N 101-1975)

$54.99

$

Usually ships in 2-12 days

0

14b

Ferris 5022847

SPRING, Extension, Swivel End
(Superseded to 5022847SM)

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1976 & above)

$36.99

$

In Stock, only 2 left!

0

15

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, only 4 left!

0

16

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$4.49

$

In Stock, Qty 6

0

17

Ferris 5025321

SCREW HOOK, 3/8-16 x 4-1/4
(Superseded to 5025321SM)

$16.99

$

Usually ships in 2-12 days

0

18

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5022314

BELT, Pump Drive (set of 2)
(Superseded to 5100555SM)

$100.99

$

In Stock, only 1 left!

0

20

Ferris 5046446

SPACER, .39 x 1.00 x .79
(Superseded to 5046446SM)

$7.99

$

In Stock, only 1 left!

0

21

Ferris 5022620

PULLEY, Idler

$

$

Currently unavailable

22

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 20+

0

23

Ferris 5022586

PULLEY, Pump Drive
(Superseded to 5022586SM)

$128.99

$

In Stock, only 2 left!

0

24

Ferris 5023254

KEY, 5MM SQ. x 25MM w/ Round Ends
(Superseded to 5023254SM)

$4.99

$

In Stock, Qty 14

0

25

Ferris 5022587

BUSHING, Tapered Hub
(Superseded to 5022587SM)

$28.99

$

In Stock, Qty 5

0

26

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 16

0
