IS 3000Z (5901058) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki Seat & Mount Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

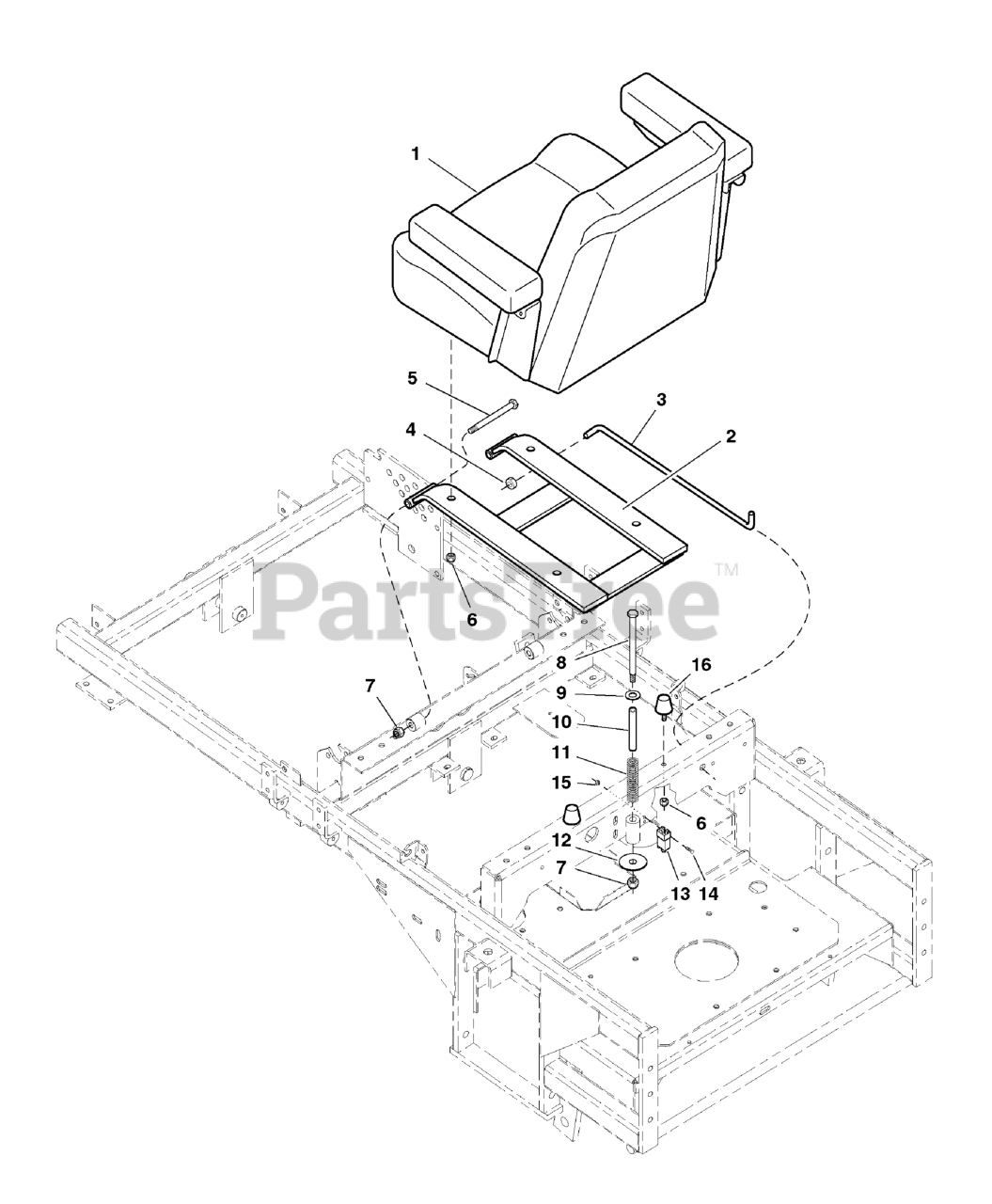

Seat & Mount Group Parts Diagram

  • Title

1

Ferris 5022031

SEAT, GRAY, NO LOGO, CMPT

$

$

Currently unavailable

1

Ferris 5022031X1

CUSHION, Seat, Gray

$245.99

$

Usually ships in 2-12 days

0

1

Ferris 5020930X9

CUSHION, BACK

$248.99

$

Usually ships in 2-12 days

0

1

Ferris 5022440

ARM REST, Black
(Superseded to 5022185)

$72.99

$

Usually ships in 2-12 days

0

2

Ferris 5046394B

SEAT MOUNT

$119.99

$

Usually ships in 2-12 days

0

3

Ferris 5046470

SEAT STOP ROD
(Superseded to 5046470SM)

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.99

$

In Stock, only 3 left!

0

5

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$4.49

$

In Stock, Qty 9

0

6

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0

8

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 8

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5046586

SPACER, .38 x .50 x 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 9

0

11

Ferris 5022798

SPRING, Compression
(Superseded to 5022798SM)

$21.99

$

Usually ships in 2-12 days

0

12

Ferris 5025326

WASHER, 3/8 x 2
(Superseded to 5025326SM)

$4.49

$

In Stock, only 1 left!

0

13

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$18.99

$

In Stock, only 4 left!

0

14

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025029

NUT, #10-24 Hex
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5022612

RUBBER BUMPER
(Superseded to 5022612SM)

$24.99

$

Usually ships in 2-12 days

0

17

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$11.99

$

Usually ships in 2-12 days

0
