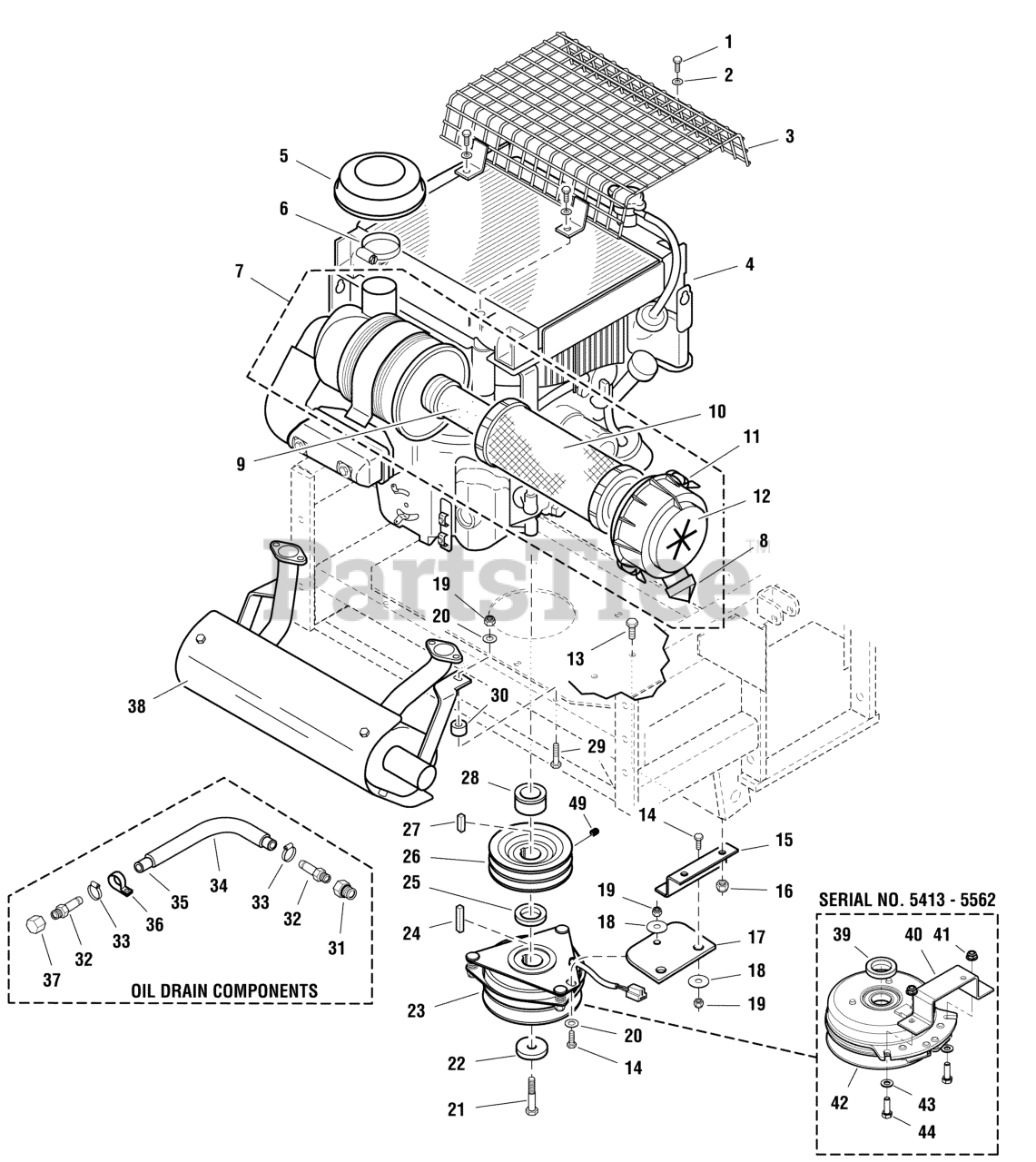

IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Liquid Cooled Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Liquid Cooled Parts Diagram

  • Title

1

Ferris 5023215

BOLT, M6 x 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5061510

RADIATOR PROTECTION SCREEN

$182.99

$

Usually ships in 2-12 days

0

4

ENGINE, Kawasaki (Model FD731V)

Note: (Includes Ref No. 5 - 12)

$

$

Not available

5

Ferris 5023143

RAIN CAP

$

$

Not available

6

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5023139

AIR FILTER ASSEMBLY, Complete
(Superseded to 5023139SM)

Note: (Includes Ref No. 8 - 12)

$272.99

$

Usually ships in 2-12 days

0

8

Ferris 5023144

RUBBER, Dust Valve

$

$

Not available

9

Ferris 5023140

AIR FILTER, Secondary
(Superseded to 5023140SM)

$

$

Not available

10

Ferris 5023141

AIR FILTER, Primary
(Superseded to 5023141SM)

$

$

Not available

11

Ferris 5023147

CLAMP, Cap

$

$

Not available

12

Ferris 5023138

CAP, FIlter Case

$

$

Not available

13

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

15

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

16

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5061502

CRANKSHAFT BOLT, M10 x 65MM
(Superseded to 5102855)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

Usually ships in 2-12 days

0

23

Ferris 5023233

CLUTCH, OGURA, 250 ft lbs - 1.13"
(Superseded to 5023233SM)

$683.99

$

Usually ships in 2-12 days

0

24

Ferris 5050407X3

KEY, 1/4 SQ. X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

25

Ferris 5042945

SPACER, 1.13 x 2.00 x .19

$

$

Currently unavailable

26

Ferris 5047075

CRANKSHAFT PULLEY

$128.99

$

Usually ships in 2-12 days

0

27

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, Qty 9

0

28

Ferris 5047033

SPACER, 1.13 x 1.75 x 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

29

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5046446

SPACER, .39 x 1.00 x .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

31

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

32

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

33

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

34

Ferris 5050862X12

WIRE LOOM, 12"
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5050857X14

HOSE, 14"
(Superseded to 5050857X14YP)

$9.99

$

Usually ships in 2-12 days

0

36

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

38

Ferris 5061314

MUFFLER, KAWASAKI LC
(Superseded to 5061314YP)

$622.99

$

Usually ships in 2-12 days

0

39

Ferris 5100062

SPACER, 1.13 x 1.75 x .32
(Superseded to 5100062YP)

Note: (See Footnote)

$16.99

$

Usually ships in 2-12 days

0

40

Ferris 5400328B

CLUTCH ANCHOR

Note: (See Footnote)

$17.99

$

Usually ships in 2-12 days

0

41

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

Note: (See Footnote)

$3.49

$

Usually ships in 2-12 days

0

42

ELECTRIC CLUTCH

Note: (See Footnote)

$

$

Not available

43

Ferris 5025155

WASHER, 5/16" SAE

Note: (See Footnote)

$

$

Currently unavailable

44

Ferris 5025011X8

BOLT, 5/16-18 x 1"
(Superseded to 5025011X8FS)

Note: (See Footnote)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5023396X1

OIL FILTER, KAWI # 49065-2086

Note: (Not shown)

$

$

Currently unavailable

46

SPRING CLIP, KAWI # 92144-2346

Note: (Not shown)

$

$

Not available

47

SCREEN, BOTTOM, KAWI # 11053-2104-9H

Note: (Not shown)

$

$

Not available

48

SCREEN, TOP, BUBBLE, KAWI # 14037-2146-9H

Note: (Not shown)

$

$

Not available

49

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, only 2 left!

0

50

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

Note: (Not shown - for securing engine to frame.)

$3.99

$

Usually ships in 2-12 days

0
