IS 3000Z (5901059) - Ferris IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Instrument & Control Panel Group - Liquid Cooled Model Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

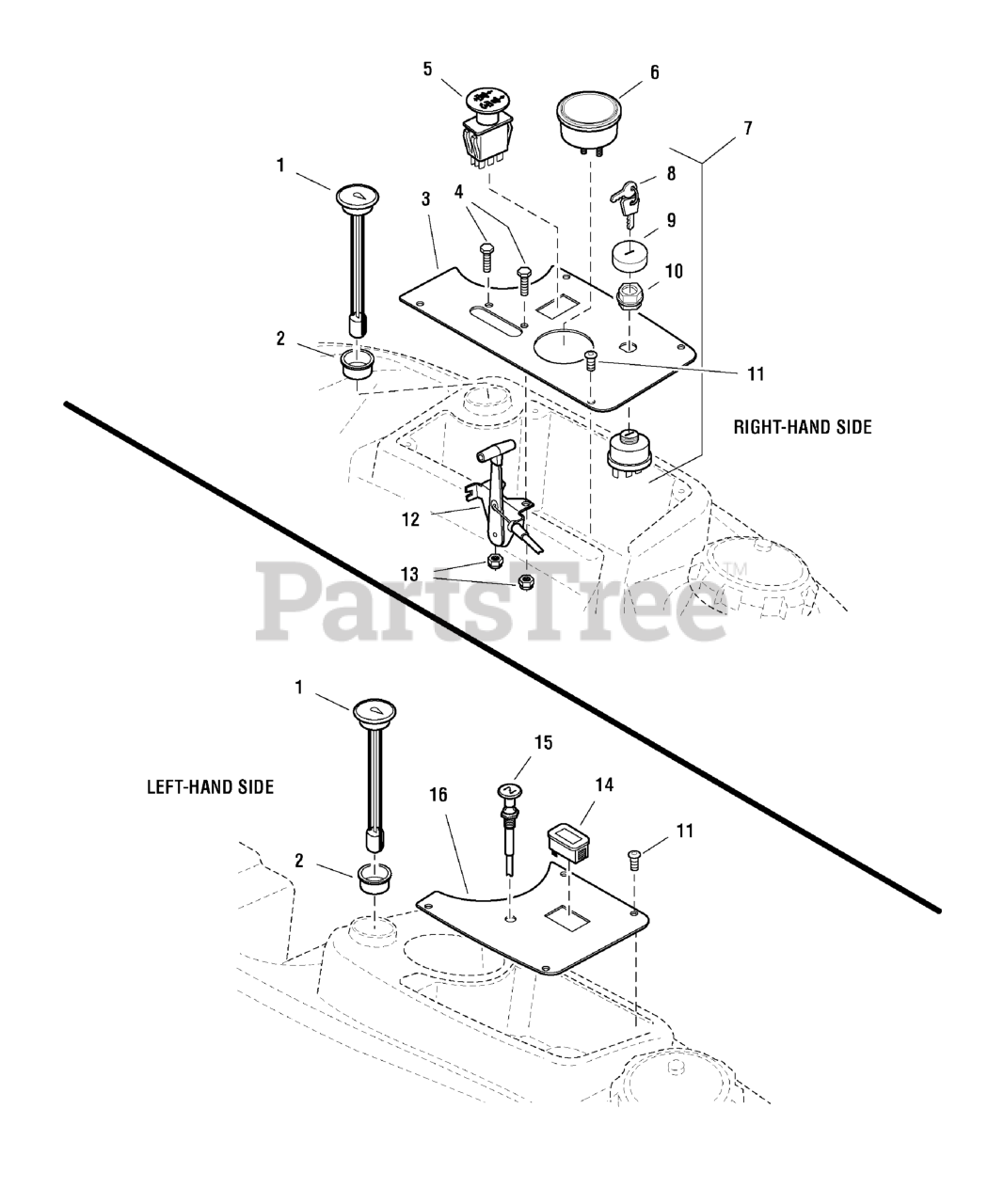

Instrument & Control Panel Group - Liquid Cooled Model Parts Diagram

  • Title

1

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

2

Ferris 5022917X1

GROMMET
(Superseded to 5022917X1SM)

$7.49

$

In Stock, Qty 20+

0

3

Ferris 5061138A

CONTROL PANEL-RH

$9.49

$

Usually ships in 2-12 days

0

4

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 15

0

6

Ferris 5023393

TEMPERATURE GAUGE
(Superseded to 5023393YP)

$76.99

$

Usually ships in 2-12 days

0

7

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 8- 10)

$34.99

$

In Stock, Qty 9

0

8

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

9

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 6

0

10

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

12

Ferris 5021887

CABLE, Throttle, 45"
(Superseded to 5021887SM)

$75.99

$

Usually ships in 2-12 days

0

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

15

Ferris 5102624

CABLE, CHOKE CONTROL, 56", DETENTED

$53.99

$

Usually ships in 2-12 days

0

16

Ferris 5049108A

CONTROL PANEL-LH

$19.99

$

Usually ships in 2-12 days

0
