IS 3000Z (5901060) - Ferris IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 3630 & Below) Decal Group - Safety & Operation Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler

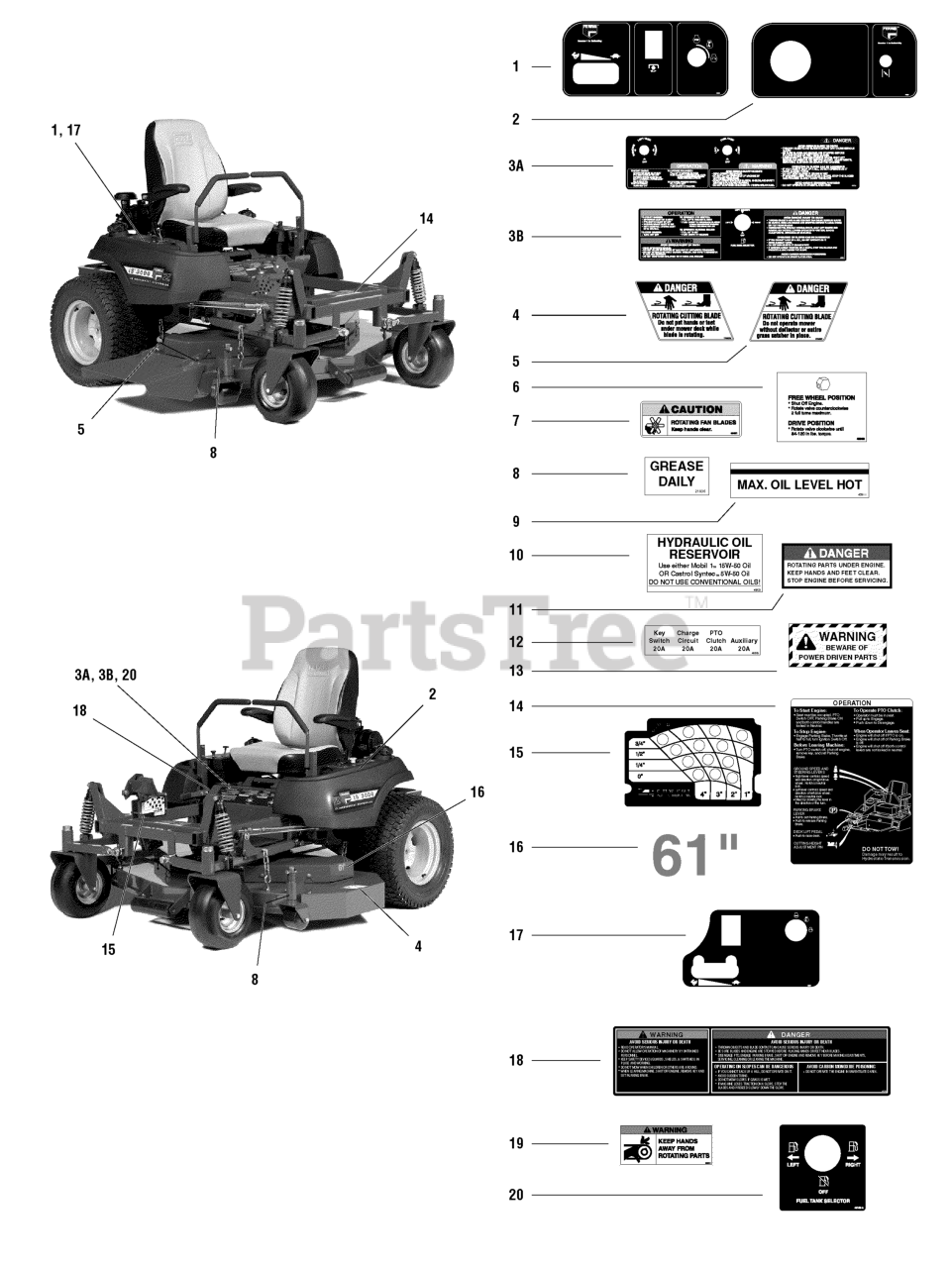

Decal Group - Safety & Operation Parts Diagram

  • Title

1

Ferris 5047861

DECAL, Control Panel-RH

$31.99

$

Usually ships in 2-12 days

0

2

Ferris 5047862

DECAL, Control Panel-LH

$31.99

$

Usually ships in 2-12 days

0

3A

Ferris 5046387

DECAL, Safety/Instruction

Note: (25/61 model, S/N: 101-310 / 27/61 model, S/N: 101-220)

$88.99

$

Usually ships in 2-12 days

0

3B

Ferris 5048151

DECAL, Safety/Instruction

Note: (25/61 model, S/N: 311 & above / 27/61 model, S/N: 221 & above)

$43.99

$

Usually ships in 2-12 days

0

4

Ferris 1704276

DECAL, Danger (Hand Under Deck)
(Superseded to 1704276SM)

$

$

Not available

5

Ferris 1704277

DECAL, Danger (Chute In Place)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 1 left!

0

6

Ferris 5045562

DECAL, Hydro Release Valve

Note: (located to the left of the seat)

$6.99

$

Usually ships in 2-12 days

0

7

Ferris 5046481

DECAL, Caution Fan

Note: (located under the seat)

$

$

Currently unavailable

8

Ferris 5021036

DECAL, Grease Daily
(Superseded to 5021036SM)

$8.99

$

Usually ships in 2-12 days

0

9

Ferris 5045911

DECAL, Max. Oil Level
(Superseded to 5045911SM)

Note: (located on the hydraulic oil reservoir)

$7.99

$

Usually ships in 2-12 days

0

10

Ferris 5045923

DECAL, Oil Reservoir

Note: (located under seat)

$

$

Currently unavailable

11

Ferris 5022143

DECAL, Danger, Rotating

Note: (located on the lower frame rail, behind drive tire)

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5046503

DECAL, Fuse Location
(Superseded to 5046503SM)

Note: (located above fuse block)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5103184

DECAL, Warning
(Superseded to 5103184YP)

Note: (on top of mower deck, old version)

$13.99

$

Usually ships in 2-12 days

0

14

Ferris 5045559

DECAL, Operation

$19.99

$

Usually ships in 2-12 days

0

15

Ferris 5022063

DECAL, Deck Height
(Superseded to 5022063SM)

$49.99

$

Usually ships in 2-12 days

0

16

Ferris 5022813

DECAL, 61"
(Superseded to 5022813SM)

$11.99

$

In Stock, only 2 left!

0

17

Ferris 5049199

DECAL, Control Panel

$45.99

$

Usually ships in 2-12 days

0

18

Ferris 5047171

DECAL, Safety/Instruction

$36.99

$

Usually ships in 2-12 days

0

19

Ferris 5103184

DECAL, Warning
(Superseded to 5103184YP)

Note: (On top of mower deck, new version)

$13.99

$

Usually ships in 2-12 days

0

20

Ferris 5049148

DECAL, Fuel Selector

$11.99

$

Usually ships in 2-12 days

0
