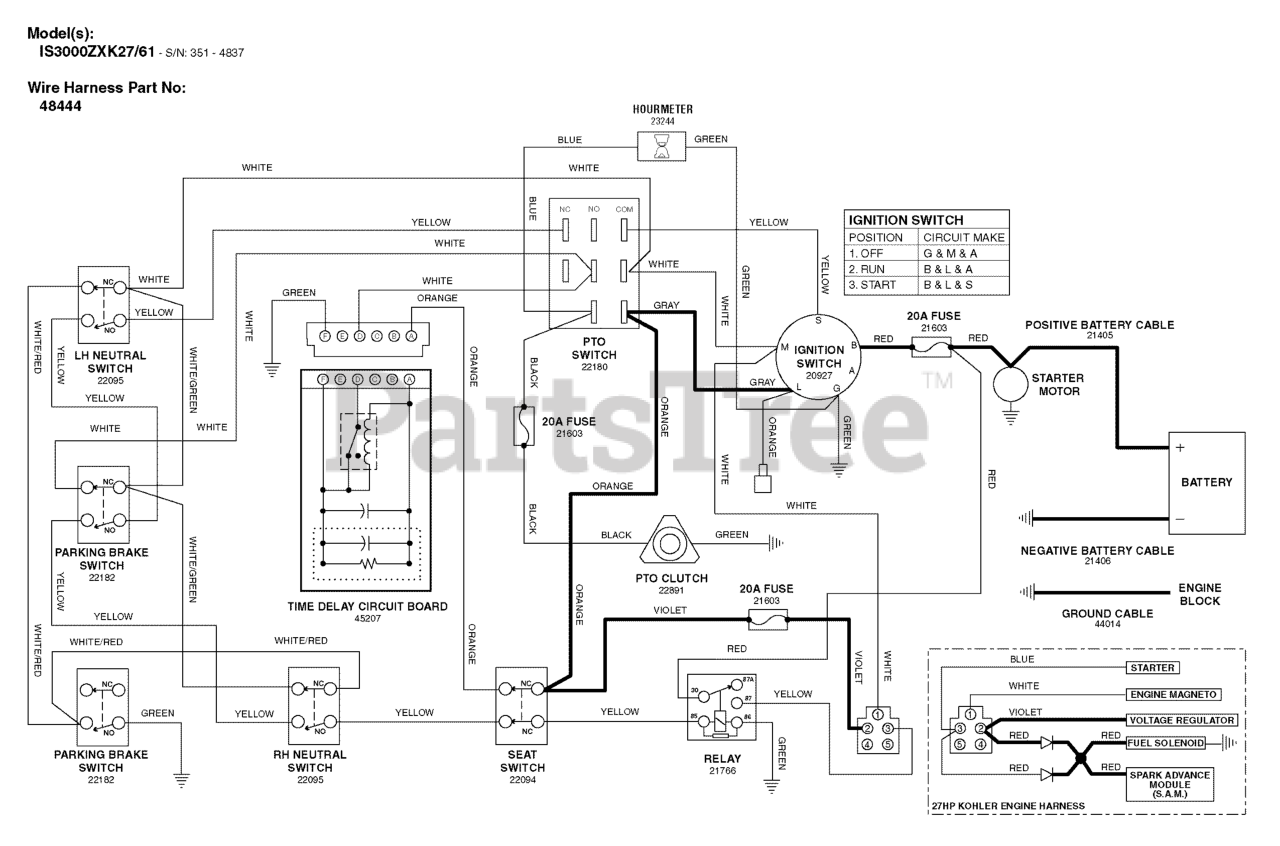

IS 3000Z (5901060) - Ferris IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 3630 & Below) Electrical Schematic - Charging Circuit - Kohler (S/N: 351 - 3630) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler
