IS 3000Z (5901060) - Ferris IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 3630 & Below) Neutral Return Group (Early Models) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler

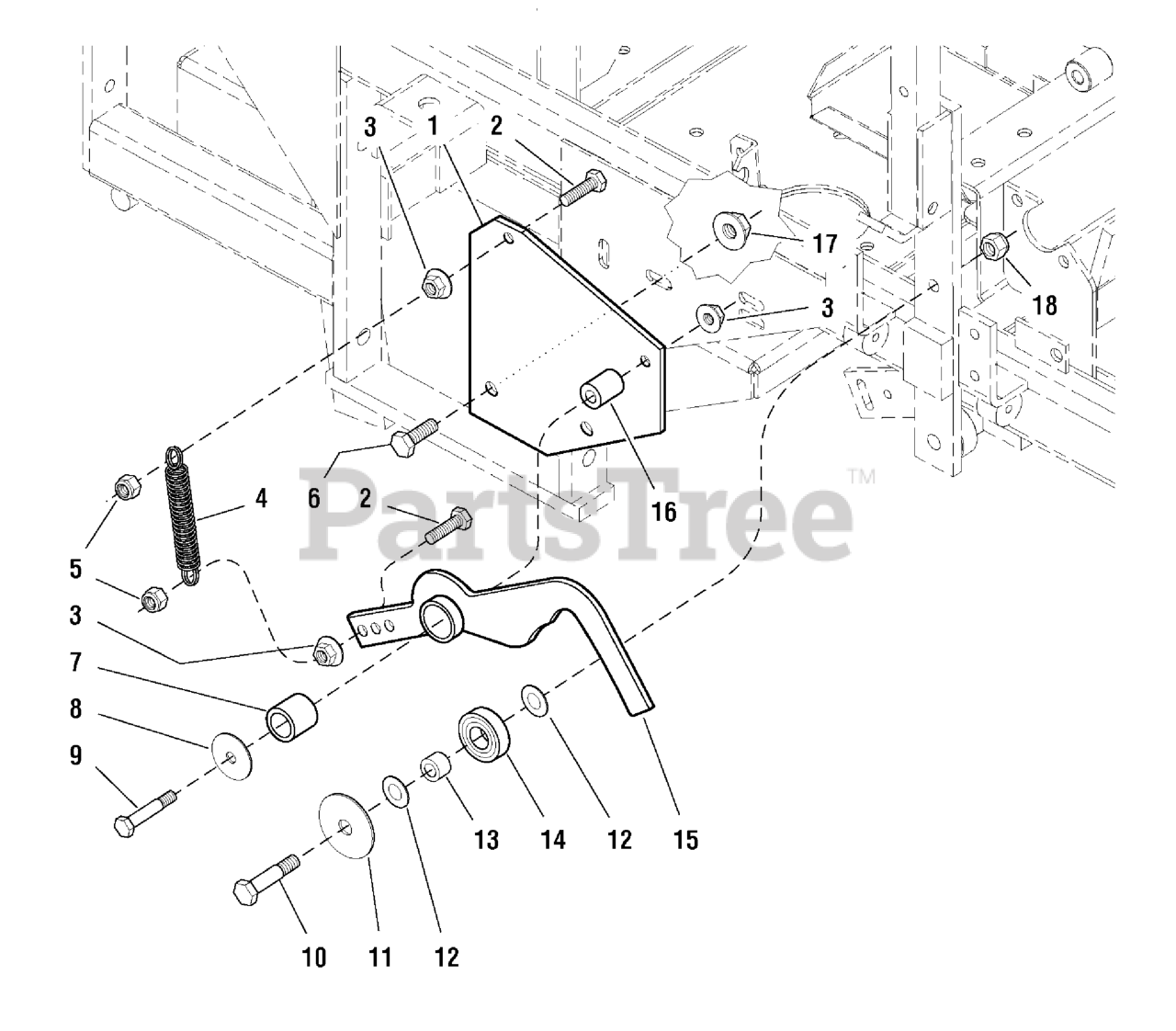

Neutral Return Group (Early Models) Parts Diagram

  • Title

1

Ferris 5046411B

NEUTRAL RETURN MOUNT PLATE

$

$

Currently unavailable

2

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

3

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

5

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

11

Ferris 5025326

WASHER, 3/8 x 2
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

14

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

15

Ferris 5046414B

NEUTRAL RETURN LEVER

$72.99

$

Usually ships in 2-12 days

0

16

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0
