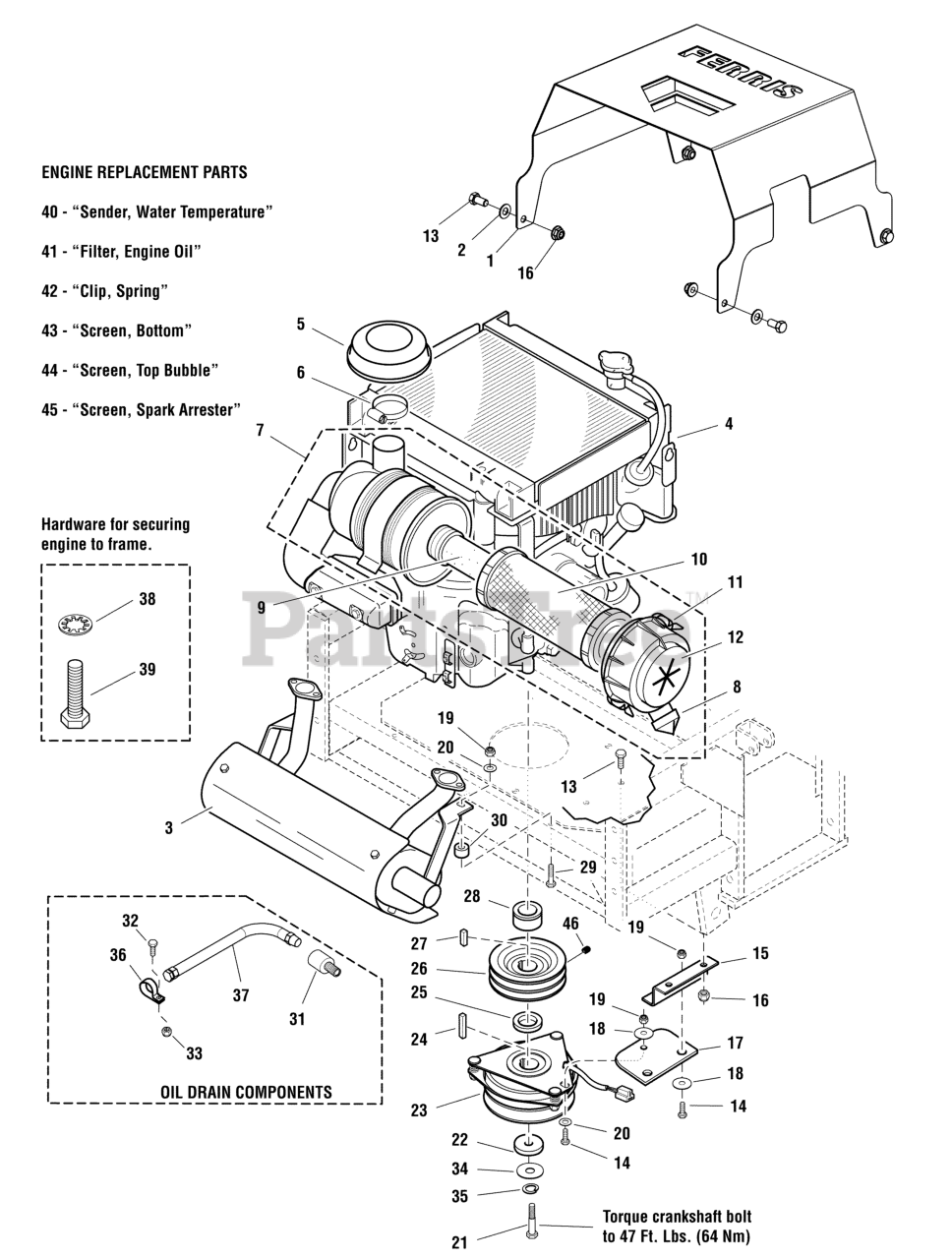

IS 3100Z (5900611) - Ferris IS3100Z Series 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Liquid Cooled Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Liquid Cooled Parts Diagram

  • Title

1

Ferris 5401138B

GUARD, RADIATOR SCREEN PROTECTOR - RED

$

$

Not available

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5061314

MUFFLER, KAWASAKI LC
(Superseded to 5061314YP)

$637.99

$

Usually ships in 2-12 days

0

4

ENGINE, KAWASAKI, LC

$

$

Not available

5

Ferris 5023143

RAIN CAP

$

$

Not available

6

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5023139

AIR FILTER ASSEMBLY, COMPLETE
(Superseded to 5023139SM)

$

$

Not available

8

Ferris 5023144

RUBBER, Dust Valve

$

$

Not available

9

Ferris 5023140

AIR FILTER, SECONDARY
(Superseded to 5023140SM)

$

$

Not available

10

Ferris 5023141

AIR FILTER, PRIMARY
(Superseded to 5023141SM)

$75.99

$

Usually ships in 2-12 days

0

11

Ferris 5023147

CLAMP, CAP

$

$

Not available

12

Ferris 5023138

CAP, FILTER CASE

$

$

Not available

13

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5025011X8

BOLT, 5/16-18 X 3/4
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

15

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$17.99

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

18

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 12

0

19

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5102855

BOLT, CRANKSHAFT, M10 X 65MM

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5101332

SPACER, .406 X 1.88 X .38

$33.99

$

Usually ships in 2-12 days

0

23

Ferris 5023233

CLUTCH, OGURA, 250 ft lbs - 1.13"
(Superseded to 5023233SM)

$724.99

$

Usually ships in 2-12 days

0

24

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

25

Ferris 5042945

SPACER, 1.13 X 2.00 X .19

$

$

Currently unavailable

26

Ferris 5047075

PULLEY, CRANKSHAFT (DOUBLE A)

$128.99

$

Usually ships in 2-12 days

0

27

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 1 left!

0

28

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$14.99

$

In Stock, only 1 left!

0

29

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

30

Ferris 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.99

$

In Stock, only 1 left!

0

31

Ferris 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$16.99

$

In Stock, only 3 left!

0

32

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 11

0

33

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

34

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

35

Ferris 5025336

WASHER, LOCK, 10MM
(Superseded to 5025336YP)

$2.99

$

Usually ships in 2-12 days

0

36

Ferris 5021500

CLAMP, VINYL
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

37

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$20.99

$

In Stock, only 2 left!

0

38

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$4.49

$

Usually ships in 2-12 days

0

39

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

$3.99

$

In Stock, only 2 left!

0

40

Ferris 5023394

SENDER, WATER TEMPERATURE
(Superseded to 5023394YP)

$41.99

$

Usually ships in 2-12 days

0

41

Ferris 5023396X1

OIL FILTER, KAWI # 49065-2086

$

$

Currently unavailable

42

SPRING CLIP, KAWI # 92144-2346

$

$

Not available

43

SCREEN, BOTTOM, KAWI # 11053-2104-9H

$

$

Not available

44

SCREEN, TOP, BUBBLE, KAWI # 14037-2146-9H

$

$

Not available

45

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$89.99

$

Usually ships in 2-12 days

0

46

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.99

$

In Stock, Qty 10

0

47

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0
