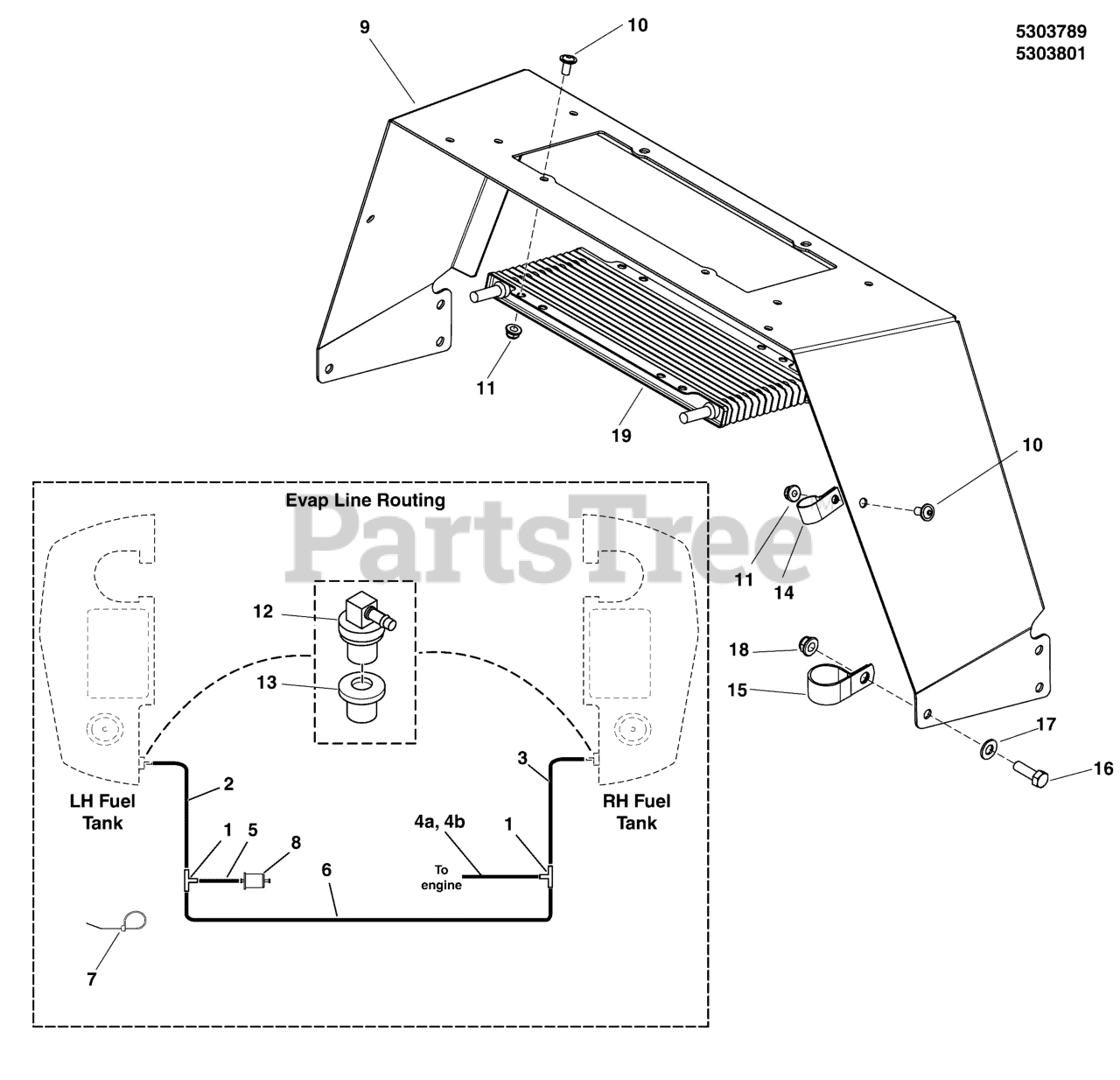

IS 3100Z (5901218) - Ferris IS3100Z Series Zero-Turn Mower, 36hp Briggs & Stratton EVAP Group - S/N : 2016816350 & Above Parts Diagram

IS3100Z Series Zero-Turn Mower, 36hp Briggs & Stratton

EVAP Group - S/N : 2016816350 & Above Parts Diagram

  • Title

1

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 1 left!

0

2

Ferris 7700552X19P5

HOSE, VAPOR, 5MM ID, 19.50 LG

$

$

Currently unavailable

3

Ferris 7700552X30

HOSE, VAPOR, 5MM ID, 30.00 LG
(Superseded to 7700552X32YP)

$10.99

$

In Stock, only 1 left!

0

4a

Ferris 7700552X27

HOSE, VAPOR, 5MM ID, 27.00 LG

Note: (Models equipped with Kawasaki Engines Only)

$

$

Currently unavailable

4b

Ferris 7700552X15

HOSE, VAPOR, 5MM ID, 15.00 LG
(Superseded to 7700552X22YP)

Note: (Models equipped with B&S Engines Only)

$9.49

$

In Stock, only 1 left!

0

5

Ferris 7700552X2

HOSE, VAPOR, 5MM ID, 2.00 LG
(Superseded to 7700552X2YP)

$4.99

$

In Stock, only 1 left!

0

6

Ferris 7700552X3P5

HOSE, VAPOR, 5MM ID, 3.50 LG

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

8

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

9

Ferris 5408179A

MOUNT, OIL COOLER/CARB CANISTER - BLK
(Superseded to 5408179AFS)

$98.99

$

Usually ships in 2-12 days

0

10

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.99

$

In Stock, only 3 left!

0

11

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

12

Ferris 770046

REMOTE VENT ASSEMBLY

Note: (SV)

$17.99

$

In Stock, only 3 left!

0

13

Ferris 209043

GROMMET
(Superseded to 799624)

Note: (SV)

$9.49

$

In Stock, only 1 left!

0

14

Ferris 5101932

CLAMP, VINYL COATED, 5/8 ID
(Superseded to 5101932YP)

$8.49

$

Usually ships in 2-12 days

0

15

Ferris 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

17

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5101721

OIL COOLER, .75 X 11.0 X 24 PLATES
(Superseded to 5101721FS)

$138.99

$

Usually ships in 2-12 days

0
