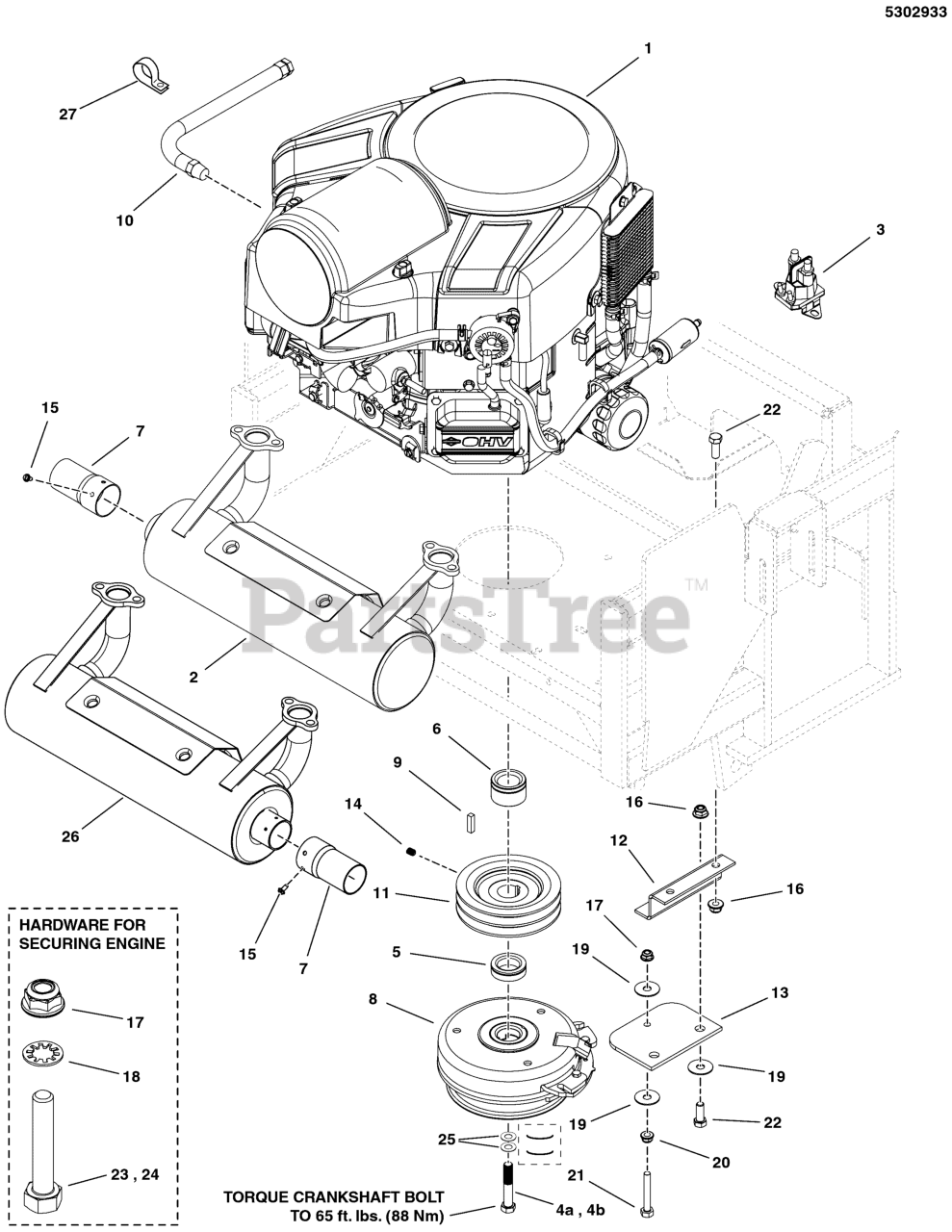

IS 3100Z (5901220) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton - Commercial Turf Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton - Commercial Turf Parts Diagram

  • Title

1

ENGINE, B&S, COMM TURF

$

$

Not available

2

Ferris 5100907

MUFFLER
(Superseded to 5100907SM)

Note: (S/N: 2016292154 & BELOW)

$

$

Not available

3

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

Note: (Models S/N: 2015721281 & Below used a different solenoid and will need the wire ends changed when replacing with a new solenoid.)

$29.99

$

Usually ships in 2-12 days

0

4a

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & ABOVE)

$5.49

$

In Stock, only 1 left!

0

4b

Ferris 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & BELOW)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

$19.99

$

In Stock, only 1 left!

0

6

Ferris 5103626

SPACER, 1.13 X 1.75 X 1.09, PM

$16.99

$

Usually ships in 2-12 days

0

7

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

In Stock, only 1 left!

0

8

Ferris 5105090

CLUTCH,5218-221, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

9

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

11

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

12

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

13

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL
(Superseded to 5025531YP)

$3.49

$

In Stock, only 2 left!

0

15

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 14

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

20

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 5025011X16

BOLT, 5/16-18 X 2, GD5
(Superseded to 5025011X16YP)

Note: (SECURES FRONT LEFT OF ENGINE)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & ABOVE)

$4.49

$

In Stock, only 2 left!

0

26

Ferris 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016292155 & ABOVE)

$222.99

$

In Stock, only 2 left!

0

27

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0
