IS 3100Z (5901284) - Ferris IS3100Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton 72" iCD Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS3100Z Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

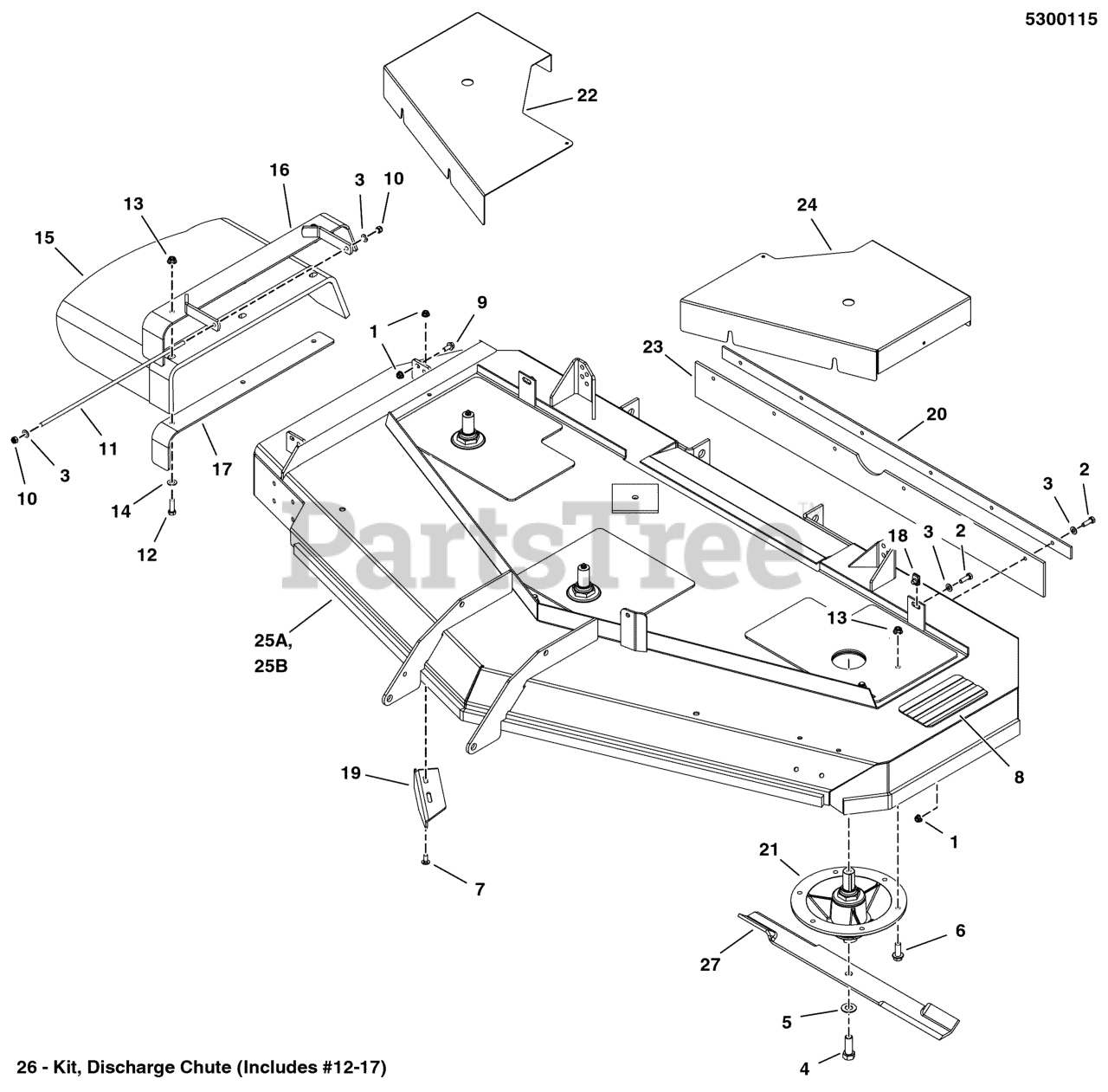

72" iCD Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

6

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

11

Ferris 5103045

ROD, MOUNT, CHUTE, 72, CZ

$15.99

$

Usually ships in 2-12 days

0

12

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

$197.99

$

Usually ships in 2-12 days

0

16

Ferris 5408016A

WELD, FRAME, CHUTE, 72 - BLK

$76.99

$

Usually ships in 2-12 days

0

17

Ferris 5408018A

SUPPORT, DICHARGE CHUTE - BLK
(Superseded to 5408018AFS)

$23.99

$

Usually ships in 2-12 days

0

18

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

19

Ferris 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

20

Ferris 5406164A

PLATE, SUPPORT, 72" - BLK

$34.99

$

Usually ships in 2-12 days

0

21

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$314.99

$

In Stock, only 1 left!

0

21

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$372.99

$

In Stock, only 1 left!

0

22

Ferris 5401136B

GUARD, 72", RH
(Superseded to 5401136BFS)

$78.99

$

Usually ships in 2-12 days

0

23

Ferris 5102621

FLAP, STRIPER, 72
(Superseded to 5102621YP)

$113.99

$

In Stock, only 1 left!

0

24

Ferris 5401695B

GUARD, 72", LH

$70.99

$

Usually ships in 2-12 days

0

25A

Ferris 5600531

DECK SHELL W/ DECALS, 72

$3248.99

$

Usually ships in 2-12 days

0

25B

Ferris 5600533

DECK SHELL W/ DECALS, 72, ANSI-EXP

Note: (ANSI Export)

$3248.99

$

Usually ships in 2-12 days

0

26

Ferris 5600530

KIT, DISCHARGE CHUTE, 72, ZTR

$

$

Not available

27

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

$113.99

$

Usually ships in 2-12 days

0
