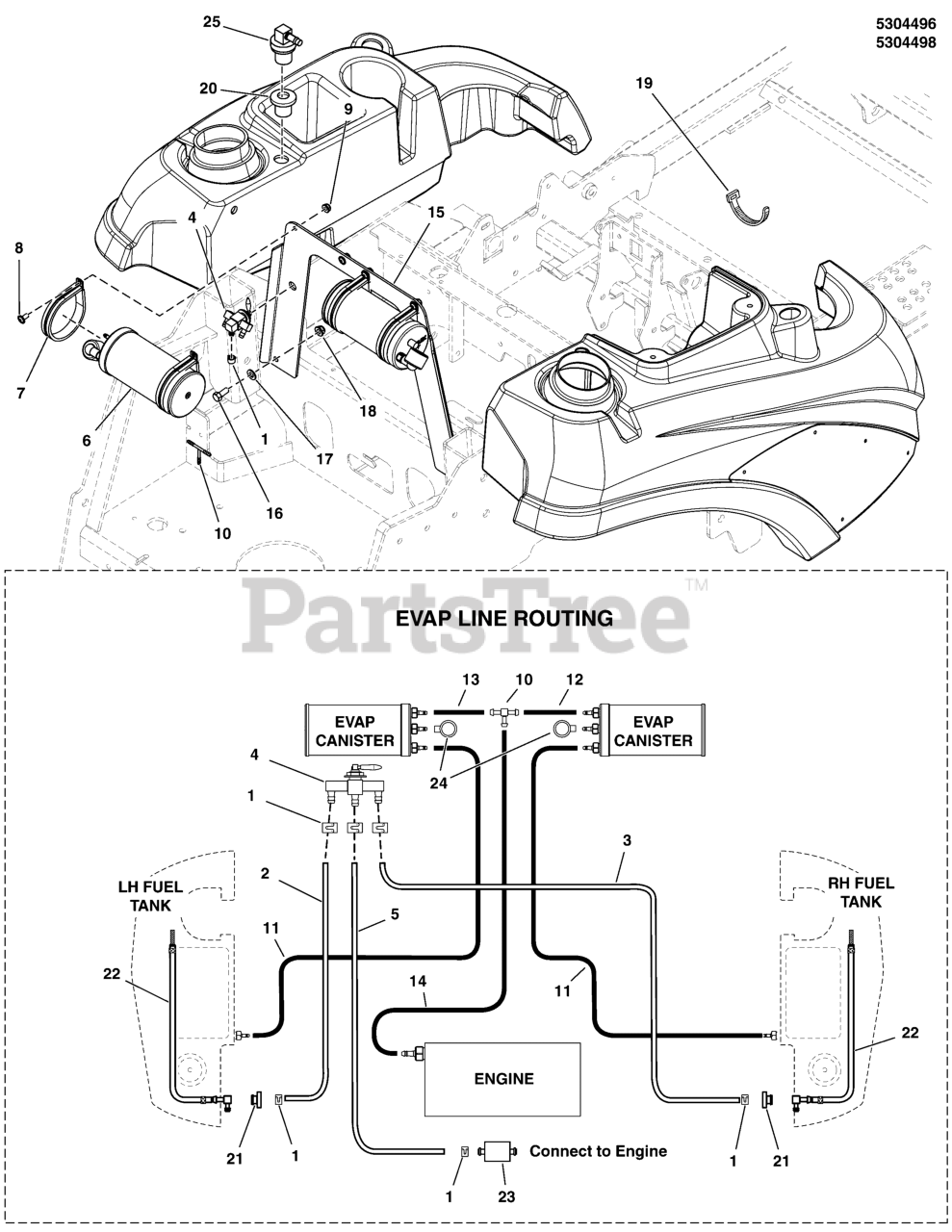

IS 3200Z (5901360) - Ferris IS3200Z Series 72" Zero-Turn Mower, 28hp Briggs & Stratton, CARB Fuel Supply Hose, Tank Replacement Parts & Evap Canister Group - CAL Models Parts Diagram

IS3200Z Series 72" Zero-Turn Mower, 28hp Briggs & Stratton, CARB

Fuel Supply Hose, Tank Replacement Parts & Evap Canister Group - CAL Models Parts Diagram

  • Title

1

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

2

Ferris 5050831X13

HOSE, 1/4" FUEL, 13.00"
(Superseded to 5050831X13FS)

$9.49

$

In Stock, only 1 left!

0

3

Ferris 5050831X26P5

HOSE, 1/4" FUEL, 26.50"

$

$

Currently unavailable

4

Ferris 5023359

VALVE, FUEL SHUT-OFF, 12773
(Superseded to 5023359SM)

$61.99

$

Usually ships in 2-12 days

0

5

Ferris 5050831X23

HOSE, 1/4" FUEL, 23.00"
(Superseded to 5050831X23SM)

$9.99

$

Usually ships in 2-12 days

0

6

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$231.99

$

Usually ships in 2-12 days

0

7

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$8.49

$

Usually ships in 2-12 days

0

8

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

10

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 1 left!

0

11

Ferris 7700552X22

HOSE, VAPOR, 5MM ID, 22.00 LG
(Superseded to 7700552X22YP)

$9.49

$

In Stock, only 1 left!

0

12

Ferris 7700552X5

HOSE, VAPOR, 5MM ID, 5.00 LG
(Superseded to 7700552X5YP)

$5.99

$

Usually ships in 2-12 days

0

13

Ferris 7700552X19

HOSE, VAPOR, 5MM ID, 19.00 LG
(Superseded to 7700552X19FS)

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 7700552X24P5

HOSE, VAPOR, 5MM ID, 24.50 LG

$

$

Currently unavailable

15

Ferris 5411958A

PLATE, MOUNT, CANISTER, IS2100Z - BLK

$56.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

20

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$9.49

$

In Stock, only 1 left!

0

21

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 15

0

22

Ferris 5101144

HOSE ASSEMBLY (SV)

$33.99

$

Usually ships in 2-12 days

0

23

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 1 left!

0

24

Ferris 1752800

DUST FILTER, CANISTER (SV)
(Superseded to 1752800YP)

$15.99

$

In Stock, only 2 left!

0

25

Ferris 770046

REMOTE VENT ASSEMBLY

$17.99

$

In Stock, only 3 left!

0
