IS 3200Z (5901414) - Ferris IS3200Z Series 61" Zero-Turn Mower, 36hp Briggs & Stratton Electrical Group - Briggs & Stratton & Kawasaki Carbureated Models Parts Diagram

IS3200Z Series 61" Zero-Turn Mower, 36hp Briggs & Stratton

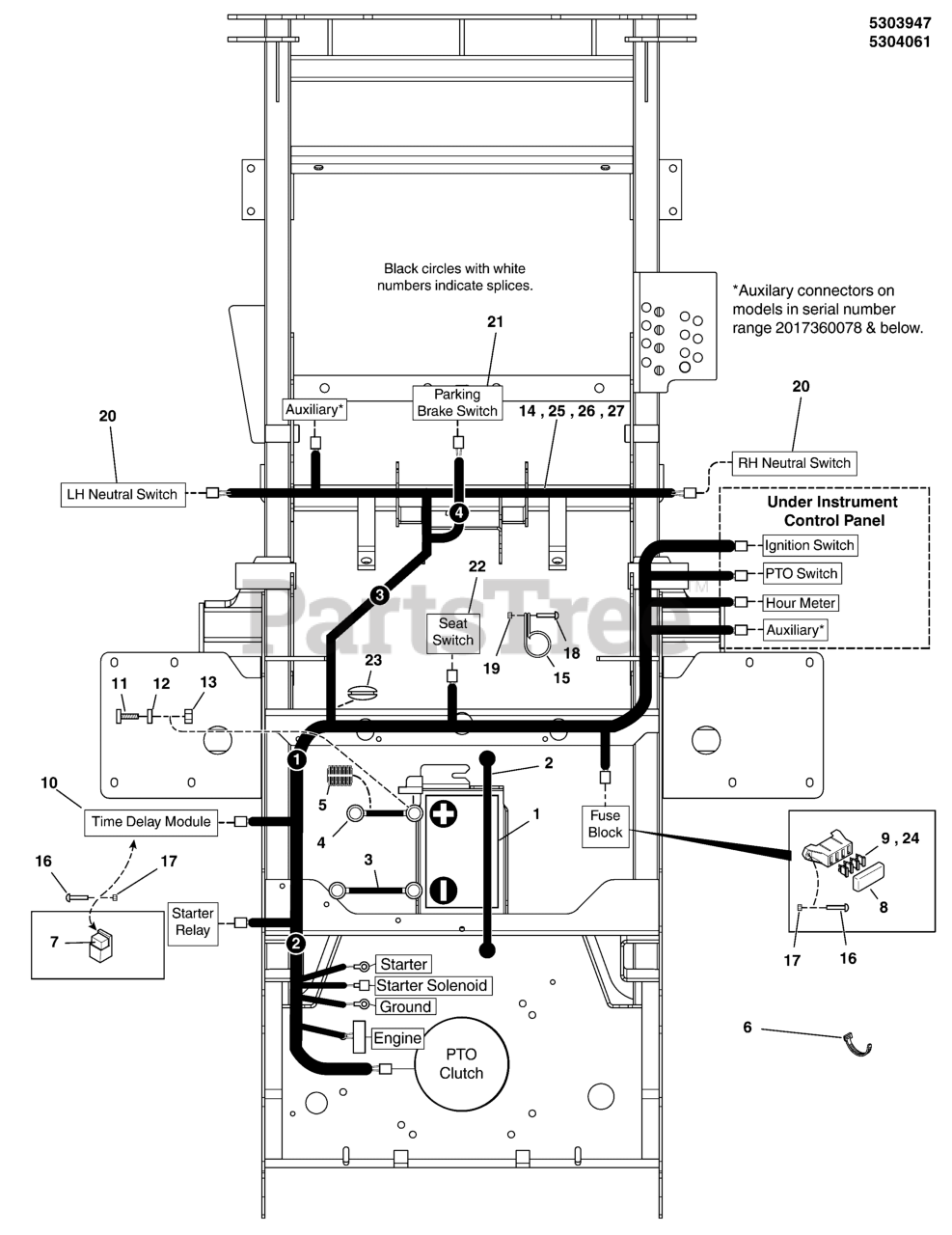

Electrical Group - Briggs & Stratton & Kawasaki Carbureated Models Parts Diagram

  • Title

1

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

2

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$17.99

$

Usually ships in 2-12 days

0

4

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$19.99

$

Usually ships in 2-12 days

0

5

Ferris 5050927X16

WIRE LOOM, 3/8 ID X 16 IN
(Superseded to 5050927X16YP)

$5.49

$

Usually ships in 2-12 days

0

6

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

7

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$25.99

$

Usually ships in 2-12 days

0

8

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.99

$

In Stock, only 2 left!

0

9

Ferris 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

Note: (SV)

$5.49

$

In Stock, only 3 left!

0

10

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$115.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

14

Ferris 5411975

WIRE HARNESS, BV32, IS2100/3100

Note: (B&S Carbureated Models S/N: 2017360078 & Below)

$304.99

$

Usually ships in 2-12 days

0

15

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

16

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

17

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025299X8

SCREW,1/4-20X1,ZINC PHOS & OIL
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5101589

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

$32.99

$

In Stock, only 1 left!

0

22

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$15.99

$

In Stock, only 2 left!

0

23

Ferris 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

24

Ferris 5101935

FUSE, ATO-15 (15 AMP)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5411549

WIRE HARNESS, KAWI FX, IS2100Z

Note: (Kawasaki Carbureated Models S/N: 2017360078 & Below)

$379.99

$

Usually ships in 2-12 days

0

26

Ferris 5414906

WIRE HARNESS, BV32, IS2100/3200

Note: (B&S Carbureated Models S/N: 2017360079 & Above)

$263.99

$

Usually ships in 2-12 days

0

27

Ferris 5414904

WIRE HARNESS, KAWI FX, IS2100Z/IS3200

Note: (Kawasaki Carbureated Models S/N: 2017360079 & Above)

$201.99

$

Usually ships in 2-12 days

0
