IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler 61" Mower Deck - Roller Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

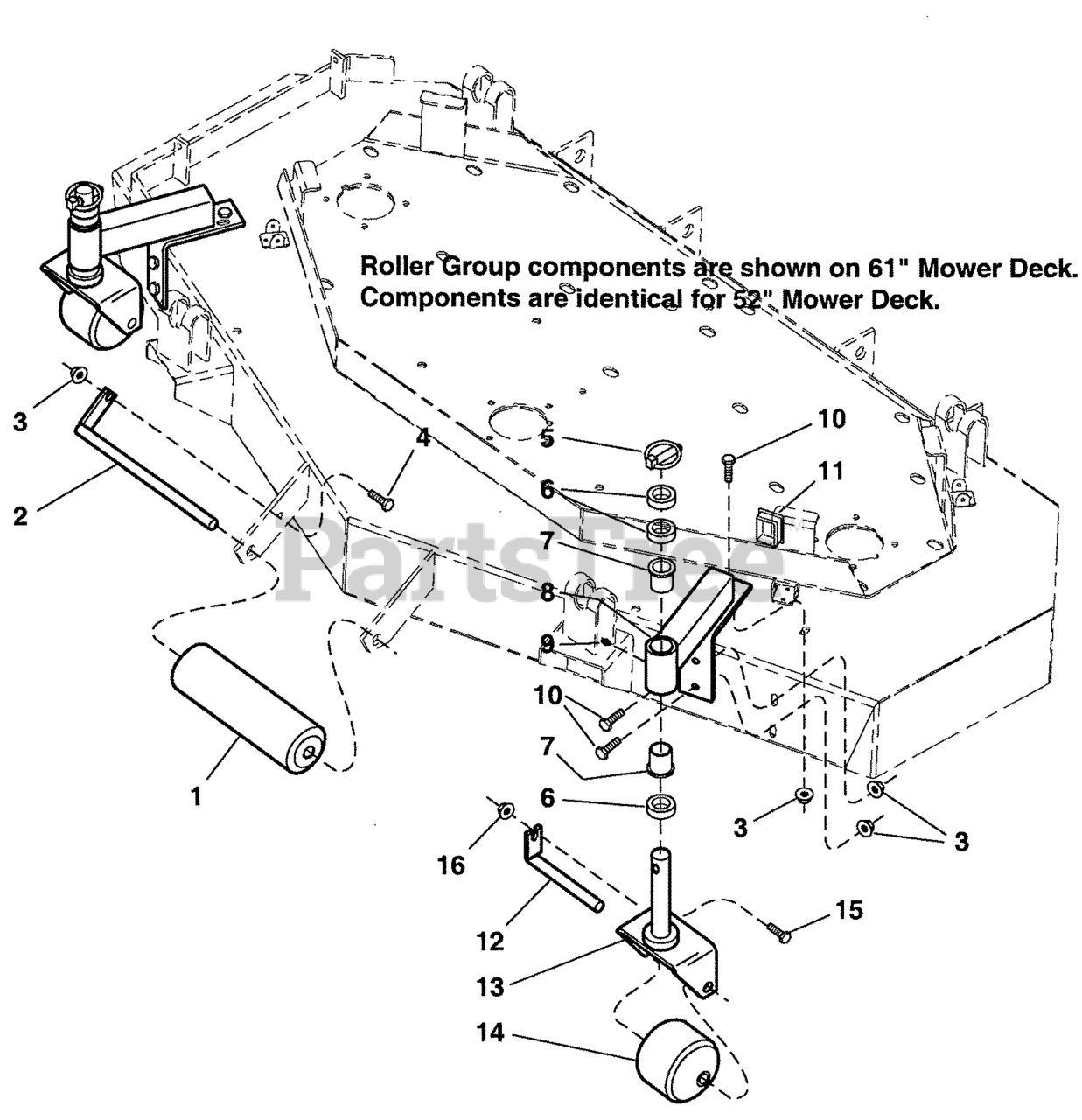

61" Mower Deck - Roller Group Parts Diagram

  • Title

1

Ferris 5020785

ROLLER, Nose
(Superseded to 5020785SM)

$31.99

$

In Stock, Qty 8

0

2

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$47.99

$

In Stock, only 1 left!

0

3

Ferris 5025128

NUT, Hex, Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

4

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

5

Ferris 5020655

LYNCH PIN
(Superseded to 5020655SM)

$10.99

$

In Stock, only 1 left!

0

6

Ferris 5041476

SPACER, Caster
(Superseded to 5041476SM)

$5.99

$

In Stock, Qty 11

0

7

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

8

Ferris 5045185B

CASTER MOUNT ARM
(Superseded to 5060054)

$94.99

$

Usually ships in 2-12 days

0

9

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5022098

CAP, Plastic
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 12

0

12

Ferris 5045034B

CASTER ROLLER PIN
(Superseded to 5045034BFS)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5045188B

CASTER YOKE
(Superseded to 5045188BFS)

$107.99

$

Usually ships in 2-12 days

0

14

Ferris 5022060

ROLLER, Caster
(Superseded to 5022060SM)

$47.99

$

In Stock, only 2 left!

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0
