IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Electrical Group Kohler Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

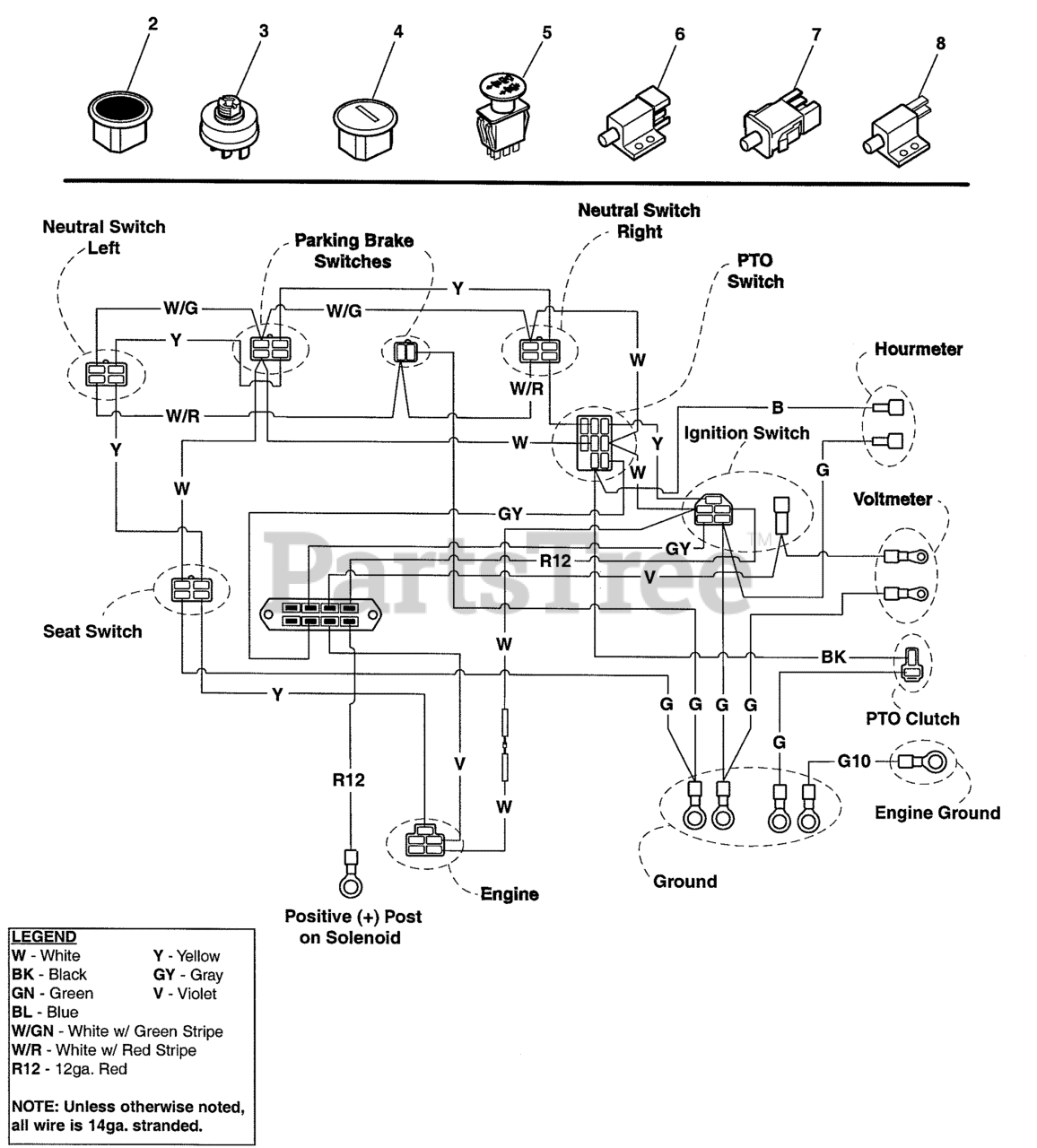

Electrical Group Kohler Parts Diagram

  • Title

1

Ferris 5045807

IS4000Z/K25 Wire Harness

$

$

Currently unavailable

2

Ferris 5022387

VOLTMETER

$53.99

$

Usually ships in 2-12 days

0

3

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 1 left!

0

4

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

5

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 6

0

6

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 6

0

7

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5045759

CABLE, Negative (-) Battery

Note: (not shown)

$

$

Currently unavailable

10

Ferris 5045758

CABLE, Positive (+) Battery

Note: (not shown)

$29.99

$

Usually ships in 2-12 days

0

11

Ferris 5021603

FUSE, 20A
(Superseded to 5021603SM)

Note: (not shown)

$4.99

$

In Stock, only 2 left!

0
