IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Hydraulic Pump & PTO Group Parts Diagram

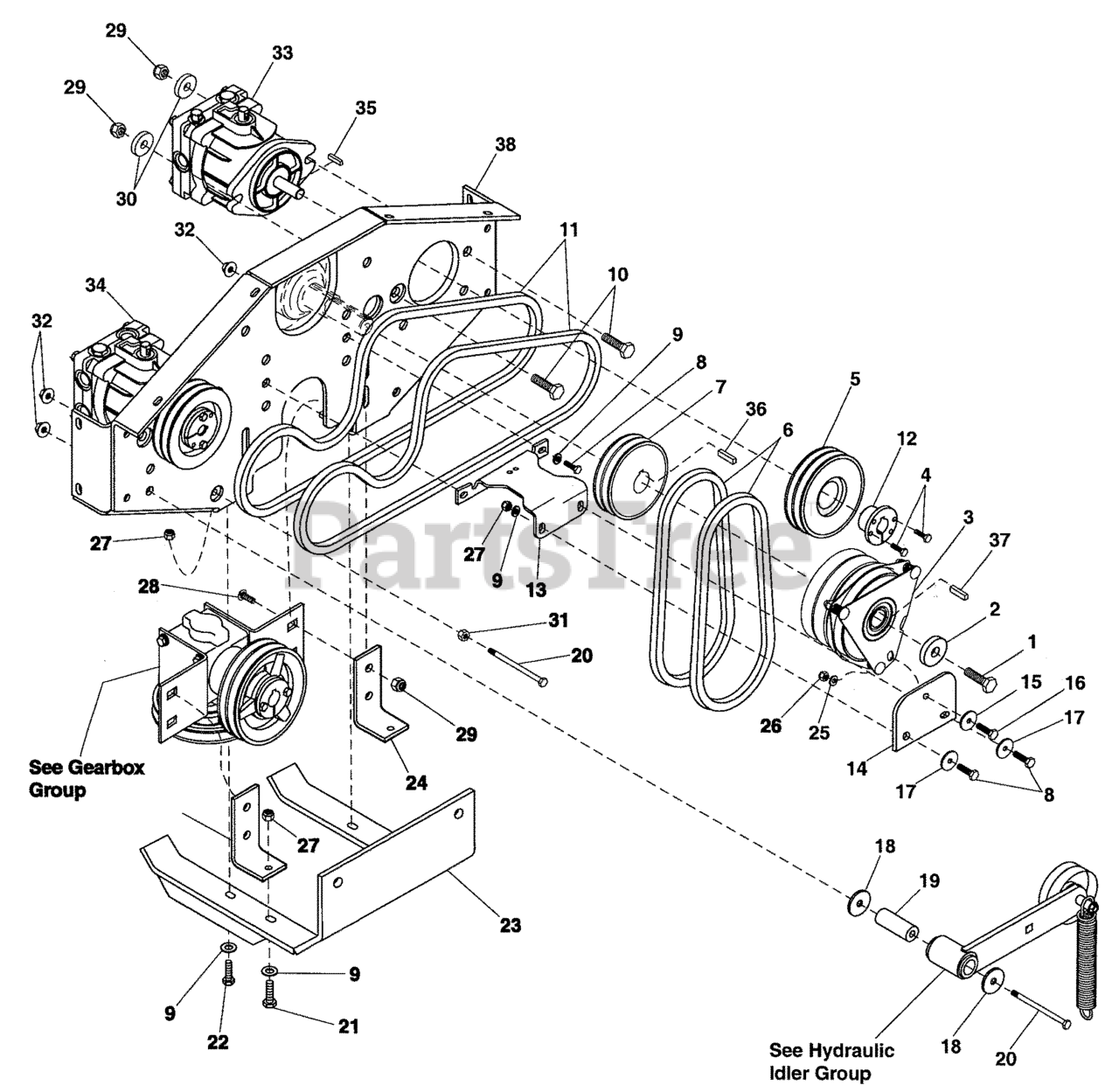

IS4000Z Series Zero-Turn Mower, 25hp Kohler

Hydraulic Pump & PTO Group Parts Diagram

  • Title

1

Ferris 5045289

BOLT, 7/16-20 x 2-1/2
(Superseded to 5102864)

$5.49

$

Usually ships in 2-12 days

0

2

Ferris 5045475

CLUTCH RETAINER
(Superseded to 5045475SM)

$14.99

$

Usually ships in 2-12 days

0

3

Ferris 5600213

KIT, CLUTCH & BOLT

$829.99

$

Usually ships in 2-12 days

0

4

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5022382

PULLEY, Pump
(Superseded to 5022382FS)

$136.99

$

Usually ships in 2-12 days

0

6

Ferris 5022315

BELT, PTO

$56.99

$

Usually ships in 2-12 days

0

7

Ferris 5022380

PULLEY, Crank Shaft

$148.99

$

In Stock, only 2 left!

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5022314

BELT, Hydraulic
(Superseded to 5100555SM)

$98.99

$

In Stock, only 3 left!

0

12

Ferris 5022383

BUSHING, Tapered Hub
(Superseded to 5022383YP)

$27.99

$

Usually ships in 2-12 days

0

13

Ferris 5045707B

ANTI-ROTATION BRACKET

$

$

Currently unavailable

14

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

15

Ferris 5025164

WASHER, Fender, 5/16
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025165

WASHER, Fender, 3/8
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

18

Ferris 5045139

WASHER, Idler Arm Retaining
(Superseded to 5025305SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

Usually ships in 2-12 days

0

20

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

21

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5045771B

SKID PLATE

$

$

Currently unavailable

24

Ferris 5045774B

SPRING MOUNT TAB

$

$

Currently unavailable

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Ferris 5025057

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

28

Ferris 5021824

BOLT, Carriage, 1/2-13 x 1-1/2

$

$

Currently unavailable

29

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

30

Ferris 5044913

WASHER, Frame Retaining
(Superseded to 5044913SM)

$6.99

$

In Stock, only 1 left!

0

31

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025128

NUT, Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

33

Ferris 5022376

PUMP, Hydraulic, Right

$1244.99

$

Usually ships in 2-12 days

0

34

Ferris 5022375

PUMP, Hydraulic, Left

$1244.99

$

Usually ships in 2-12 days

0

35

Ferris 5022156

KEY, 5mm SQ.. x 25mm
(Superseded to 5022156SM)

$5.49

$

Usually ships in 2-12 days

0

36

Ferris 5050407X1

KEY, 1/4 SQ.. x 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5050404X3

KEY, 1/4 SQ.. x 2

$

$

Currently unavailable

38

Ferris 5046036B

PUMP PLATE

$

$

Currently unavailable
