IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Motion Control Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

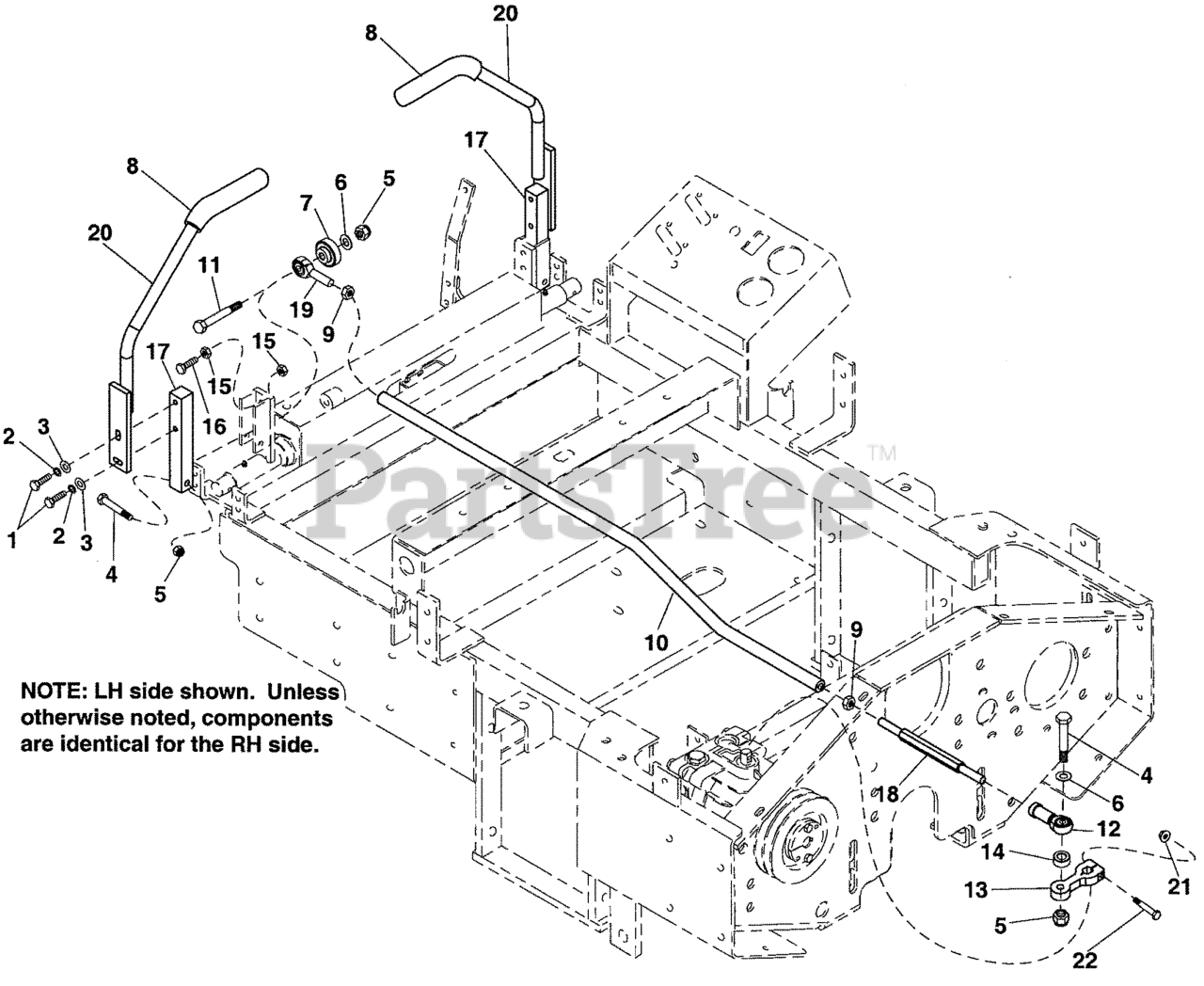

Motion Control Group Parts Diagram

  • Title

1

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

2

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 4 left!

0

5

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5045948

BEARING & INSERT ASSEMBLY
(Superseded to 5045948SM)

$

$

Not available

7

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

7

Ferris 5021879

Insert
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5022068

FOAM GRIP
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5025035

NUT, Hex, 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5045747B

CONTROL ROD

$

$

Currently unavailable

11

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5022392

BALL JOINT, 3/8 L.H., Female
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

13

Ferris 5045863

CONTROL ARM
(Superseded to 5045863FS)

$69.99

$

Usually ships in 2-12 days

0

14

Ferris 5044933

SPACER
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

15

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5045854

CONTROL HANDLE BASE

$

$

Currently unavailable

18

Ferris 5045725

ADJUSTABLE LINK

$45.99

$

Usually ships in 2-12 days

0

19

Ferris 5021124

BALL JOINT, 3/8
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

20

Ferris 5045763B

MOTION CONTROL LEVER

$

$

Currently unavailable

21

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5025010X14

BOLT, 1/4-20 x 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0
