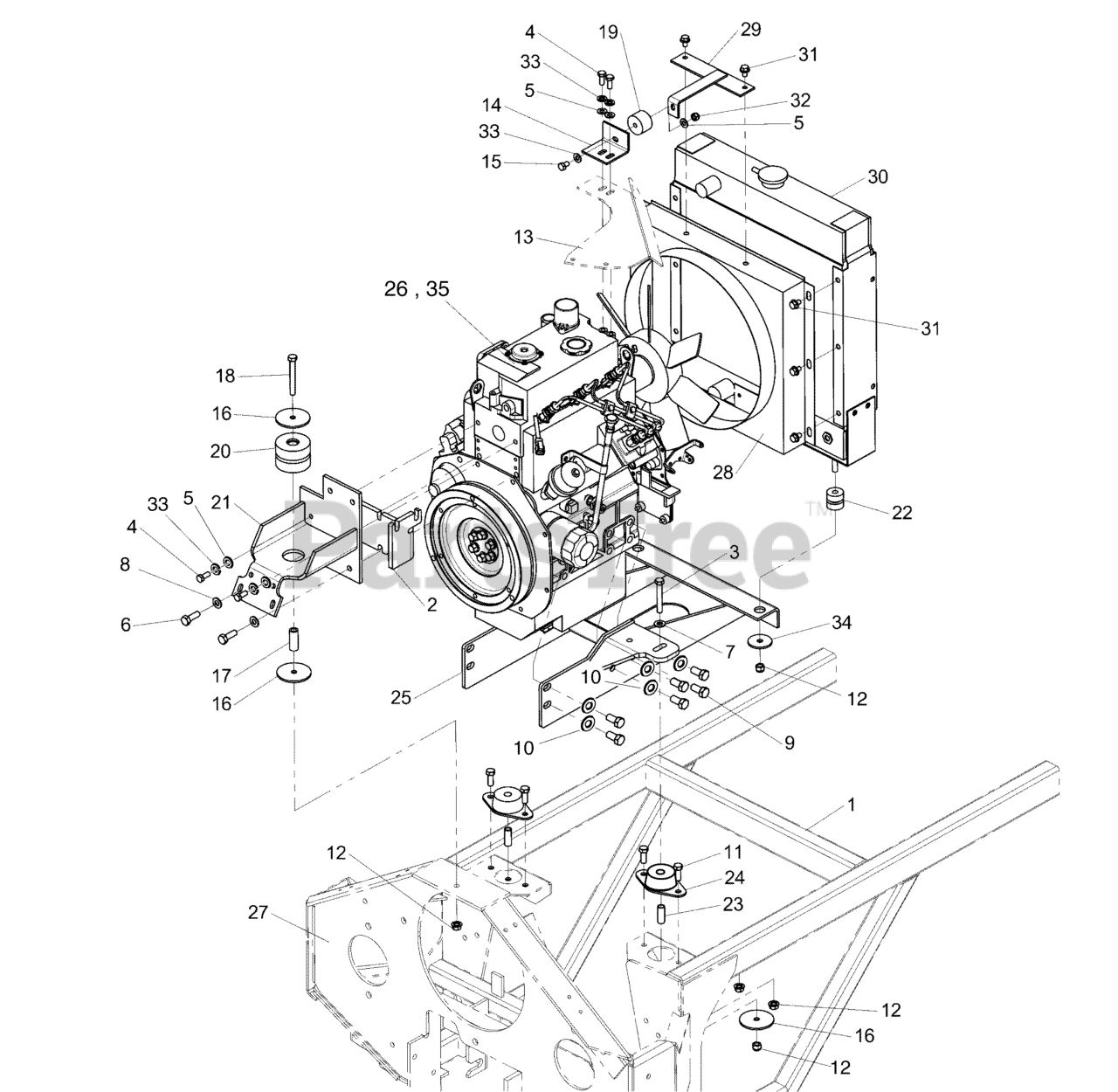

IS 4500Z (5900719) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Engine, Radiator & Mount Group - Diesel Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

Engine, Radiator & Mount Group - Diesel Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

Ferris 5049632B

BRACKET, FUEL FILTER MOUNT

$

$

Currently unavailable

3

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

4

Ferris 5025353

BOLT, M8-1.25 X 30MM, GD8.8 CZ
(Superseded to 5025353SM)

$

$

Not available

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025358

BOLT, M10-1.5 X 30MM GD8.8
(Superseded to 5025358FS)

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025336

WASHER, LOCK, 10MM
(Superseded to 5025336YP)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 1960677

CAPSCREW-HEX HD, M12-1.75 X 25MM
(Superseded to 1960677SM)

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

11

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

AIR FILTER PLATE

Note: (See Engine & Radiator Service Parts Group)

$

$

Not available

14

Ferris 5049625B

MOUNT, RADIATOR, TOP ISO
(Superseded to 5049625BFS)

$37.99

$

Usually ships in 2-12 days

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

16

Ferris 5047381

WASHER, .39 X 2.50 X .125
(Superseded to 5047381FS)

$11.99

$

Usually ships in 2-12 days

0

17

Ferris 5047380

SPACER, .38 X .62 X 1.62
(Superseded to 5047380FS)

$8.49

$

Usually ships in 2-12 days

0

18

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

19

Ferris 5023130

ISO-MOUNT, TOP, DIESEL
(Superseded to 5023130FS)

$32.99

$

Usually ships in 2-12 days

0

20

Ferris 5022897

ISO-MOUNT, REAR, DIESEL (2 piece)
(Superseded to 5022897FS)

$68.99

$

Usually ships in 2-12 days

0

21

Ferris 5049560B

WELD, REAR ISO MOUNT

$

$

Currently unavailable

22

Ferris 5023131

ISO-MOUNT, BOTTOM, DIESEL (2 piece)
(Superseded to 84003075)

$27.99

$

Usually ships in 2-12 days

0

23

Ferris 5061273

SPACER, .38 X .50 X 1.33
(Superseded to 5061273FS)

$7.49

$

Usually ships in 2-12 days

0

24

Ferris 5022896

ISO-MOUNT, ENGINE
(Superseded to 5022896FS)

$56.99

$

Usually ships in 2-12 days

0

25

Ferris 5049484B

WELD RADIATOR SUPPORT

$

$

Currently unavailable

26

ENGINE, CAT DIESEL, Model 3011C

Note: (S/N: CE Models - 2012921393 & Below; USA Models - 2013014056 & Below)

$

$

Not available

27

PUMP PLATE

Note: (See Pump Mount & Drive Group)

$

$

Not available

28

Ferris 5023502

BAFFLE, RADIATOR

$136.99

$

Usually ships in 2-12 days

0

29

Ferris 5061159B

WELD, UPPER RADIATOR

$35.99

$

Usually ships in 2-12 days

0

30

Ferris 5023379

RADIATOR, CAT DIESEL 3011C

$2080.99

$

Usually ships in 2-12 days

0

31

Ferris 5023158

BOLT, 5/16-18 X 1/2" FLANGE, SPEC
(Superseded to 5023158FS)

$5.49

$

Usually ships in 2-12 days

0

32

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

35

ENGINE, CAT DIESEL, TIER 4

Note: (S/N: CE Models - 2012921394 & Above; USA Models - 2013014057 & Above)

$

$

Not available

36

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (not an illustrated part)

$3.49

$

Usually ships in 2-12 days

0
