IS 5000Z (5901071) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Oil Cooler Mount Group (Later Models) Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

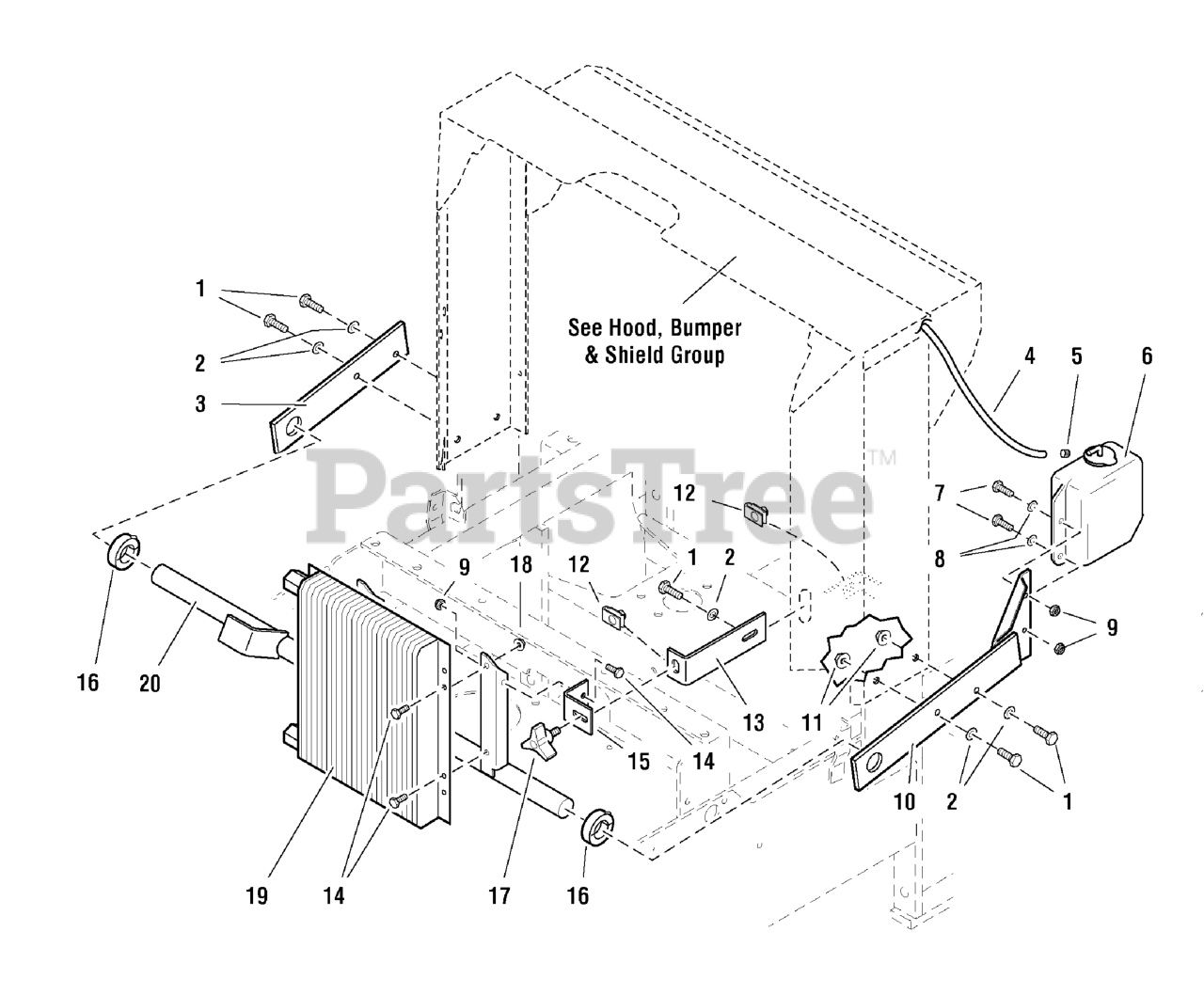

Oil Cooler Mount Group (Later Models) Parts Diagram

  • Title

1

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5048577B

OIL COOLER PIVOT PLATE

$

$

Currently unavailable

4

Ferris 5048582

OVERFLOW HOSE

$

$

Currently unavailable

5

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5022883X34

EXPANSION TANK, Complete

$213.99

$

Usually ships in 2-12 days

0

6

Ferris 5022883X35

CAP

$57.99

$

Usually ships in 2-12 days

0

7

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

10

Ferris 5048570B

OIL COOLER MOUNT PLATE-LH

$

$

Currently unavailable

11

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 4 left!

0

12

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

Usually ships in 2-12 days

0

13

Ferris 5048580B

COOLER PIVOT ANCHOR

$

$

Currently unavailable

14

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.99

$

In Stock, Qty 20+

0

15

Ferris 5048581B

COOLER LOCK BRACKET
(Superseded to 5048581BFS)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$23.99

$

In Stock, Qty 8

0

17

Ferris 5022319

KNOB
(Superseded to 5022319SM)

$8.49

$

In Stock, only 3 left!

0

18

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5022377

OIL COOLER

$165.99

$

Usually ships in 2-12 days

0

20

Ferris 5048562B

OIL COOLER MOUNT

$

$

Currently unavailable
