IS 500Z (5900640) - Ferris IS500Z Series 44" Zero-Turn Mower, 24hp Briggs & Stratton Parking Brake Group Parts Diagram

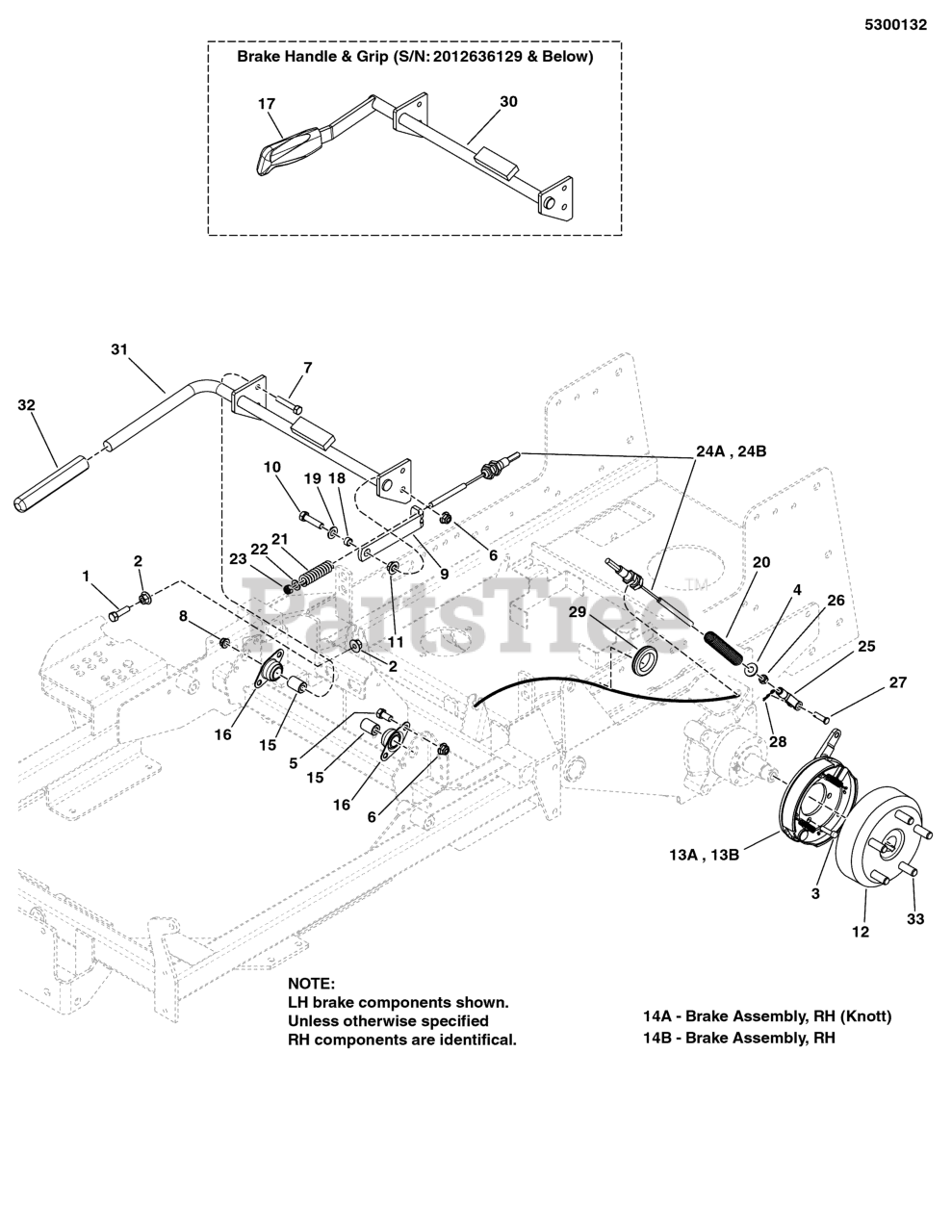

IS500Z Series 44" Zero-Turn Mower, 24hp Briggs & Stratton

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5025011X9

BOLT, 5/16-18 X 1-1/8" GD5
(Superseded to 5025011X9SM)

$4.49

$

In Stock, only 2 left!

0

2

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

3

Ferris 5023490

BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH
(Superseded to 5023490SM)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5061794A

LINK, BRAKE STOP, 6.0 - BLK

$

$

Currently unavailable

10

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

$238.99

$

Usually ships in 2-12 days

0

13a

Ferris 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$175.99

$

Usually ships in 2-12 days

0

13b

Ferris 5023500

BRAKE ASSEMBLY, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$287.99

$

Usually ships in 2-12 days

0

14a

Ferris 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not illustrated - S/N: 2015208612 & Above)

$182.99

$

Usually ships in 2-12 days

0

14b

Ferris 5023501

BRAKE ASSEMBLY, RH

Note: (Not illustrated - S/N: 2015208611 & Below)

$253.99

$

Usually ships in 2-12 days

0

15

Ferris 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.99

$

In Stock, only 3 left!

0

16

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$14.99

$

In Stock, only 3 left!

0

17

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

Note: (S/N: 2012636129 & Below)

$14.99

$

In Stock, only 2 left!

0

18

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

In Stock, only 2 left!

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5023320

SPRING, COMPRESSION
(Superseded to 5023320SM)

$8.99

$

In Stock, only 1 left!

0

21

Ferris 5022361

SPRING, BRAKE
(Superseded to 5022361SM)

$10.99

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 17

0

24a

Ferris 5023324

CABLE, PARKING BRAKE
(Superseded to 5023324SM)

Note: (44" & 52" Models)

$86.99

$

Usually ships in 2-12 days

0

24b

Ferris 5100115

CABLE, PARKING BRAKE
(Superseded to 5100115SM)

Note: (61" Models)

$101.99

$

In Stock, only 1 left!

0

25

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

26

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025213X8

PIN, CLEVIS, 5/16" X 1
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

28

Ferris 5025211

PIN, HAIR, .0585" X 1-1/8"
(Superseded to 5025211SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5021397

GROMMET, 1-1/4
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

30

Ferris 5049831B

WELD, BRAKE SHAFT

Note: (S/N: 2012636129 & Below)

$34.99

$

Usually ships in 2-12 days

0

31

Ferris 5403631A

WELD, BRAKE SHAFT - BLK

Note: (S/N: 2012636130 & Above)

$

$

Currently unavailable

32

Ferris 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

Note: (S/N: 2012636130 & Above)

$7.99

$

In Stock, only 1 left!

0

33

Ferris 5023368X1

STUD, BRAKE HUB

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0
