IS 500Z (5900770) - Ferris IS500Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS500Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

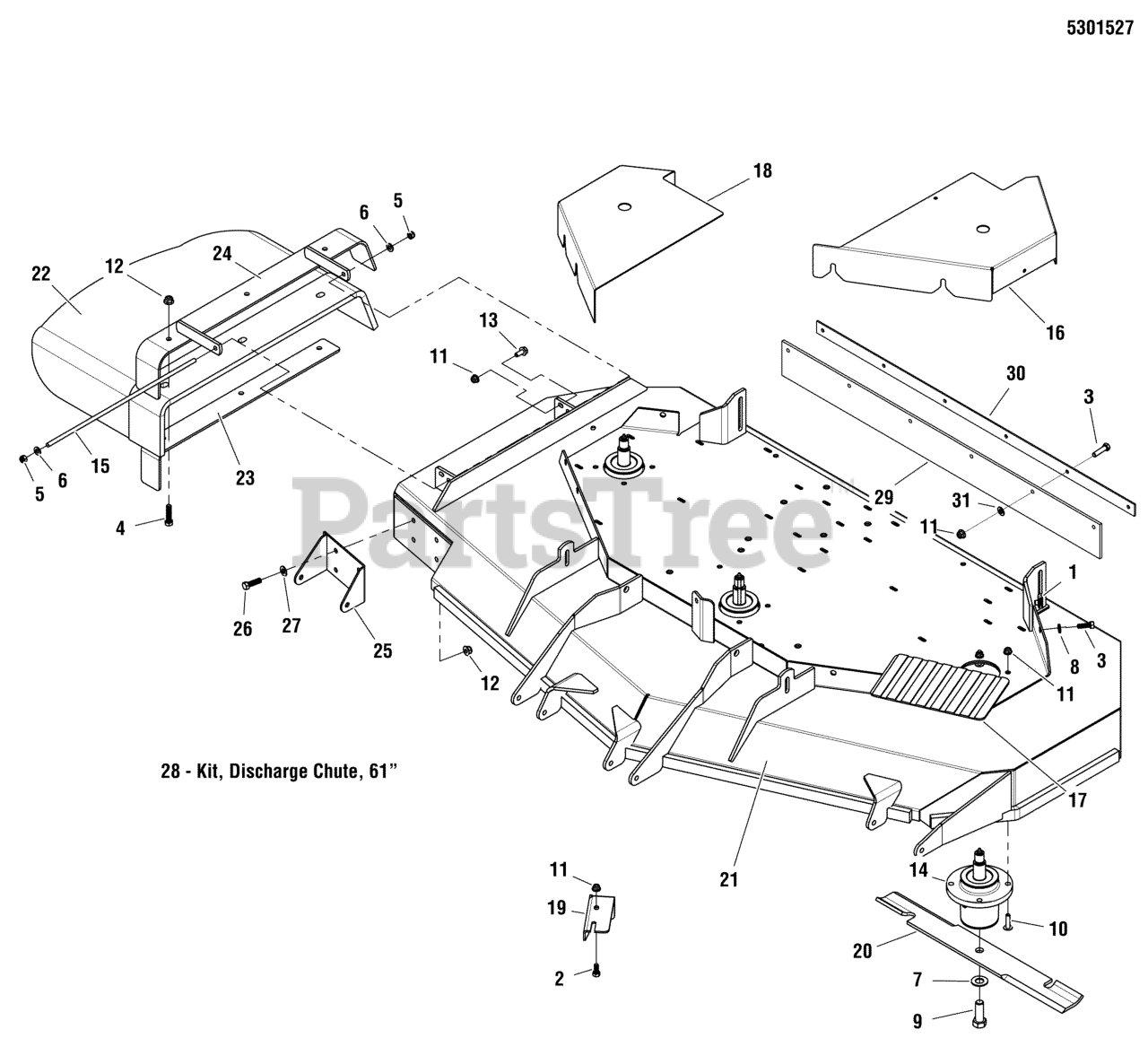

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

2

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

4

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$4.49

$

In Stock, Qty 7

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

14

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

15

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5404483B

GUARD, 61 - LH - RED

$

$

Not available

17

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$16.99

$

In Stock, only 2 left!

0

18

Ferris 5404482B

GUARD, 61 - RH - RED

$

$

Not available

19

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

In Stock, only 1 left!

0

20

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$83.99

$

In Stock, only 4 left!

0

21

Ferris 5600288

DECK SHELL W/ DECALS, 61"

Note: (SV)

$1994.99

$

Usually ships in 2-12 days

0

22

Ferris 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (SV)

$

$

Currently unavailable

23

Ferris 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

$106.99

$

Usually ships in 2-12 days

0

25

Ferris 5408810B

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810BFS)

$46.99

$

Usually ships in 2-12 days

0

26

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

27

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

28

PURCHASE INDIVIDUAL REPLACEMENT PARTS

Note: (SV - Includes Ref Nos 4, 12 & 22-24)

$

$

Not available

29

Ferris 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$95.99

$

Usually ships in 2-12 days

0

30

Ferris 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$40.99

$

Usually ships in 2-12 days

0

31

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0
