IS 5100Z (5900708) - Ferris IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel 61" Mower Deck - Housing, Covers, Spindles & Blades - Side Discharge Parts Diagram

IS5100Z Series 61" Zero-Turn Mower, 33hp Caterpillar Diesel

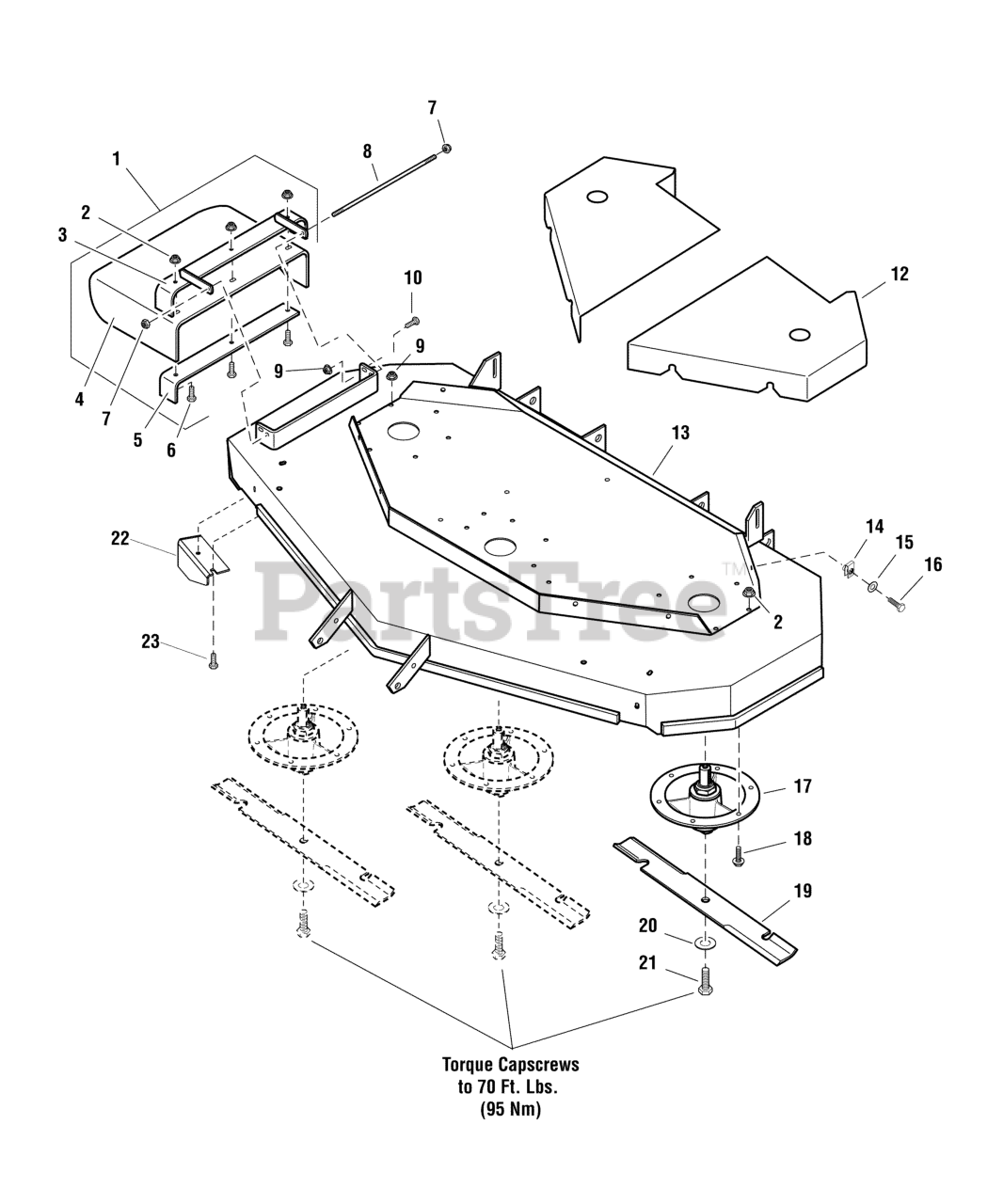

61" Mower Deck - Housing, Covers, Spindles & Blades - Side Discharge Parts Diagram

  • Title

1

PURCHASE INDIVIDUAL REPLACEMENT PARTS

$

$

Not available

2

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5061293B

WELD, FRAME, CHUTE, 61 - RED

$34.99

$

Usually ships in 2-12 days

0

4

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

$197.99

$

Usually ships in 2-12 days

0

5

Ferris 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$46.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, Qty 7

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

8

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5403484B

GUARD, 61" RH - RED

$60.99

$

Usually ships in 2-12 days

0

12

Ferris 5403485B

GUARD, 61" LH - RED

$60.99

$

Usually ships in 2-12 days

0

13

Ferris 5600229

DECK SHELL W/DECALS, 61" - IS5100

$1994.99

$

Usually ships in 2-12 days

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$314.99

$

In Stock, only 1 left!

0

17

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$372.99

$

In Stock, only 2 left!

0

18

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4", FLANGE
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5020842

BLADE, 21
(Superseded to 5020842ASM)

$29.99

$

In Stock, only 4 left!

0

20

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 10

0

21

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

In Stock, only 1 left!

0

23

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0
