IS 6200Z (5902162) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel 72" iCD+ Mower Deck Group - Housing, Covers and Spindles Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

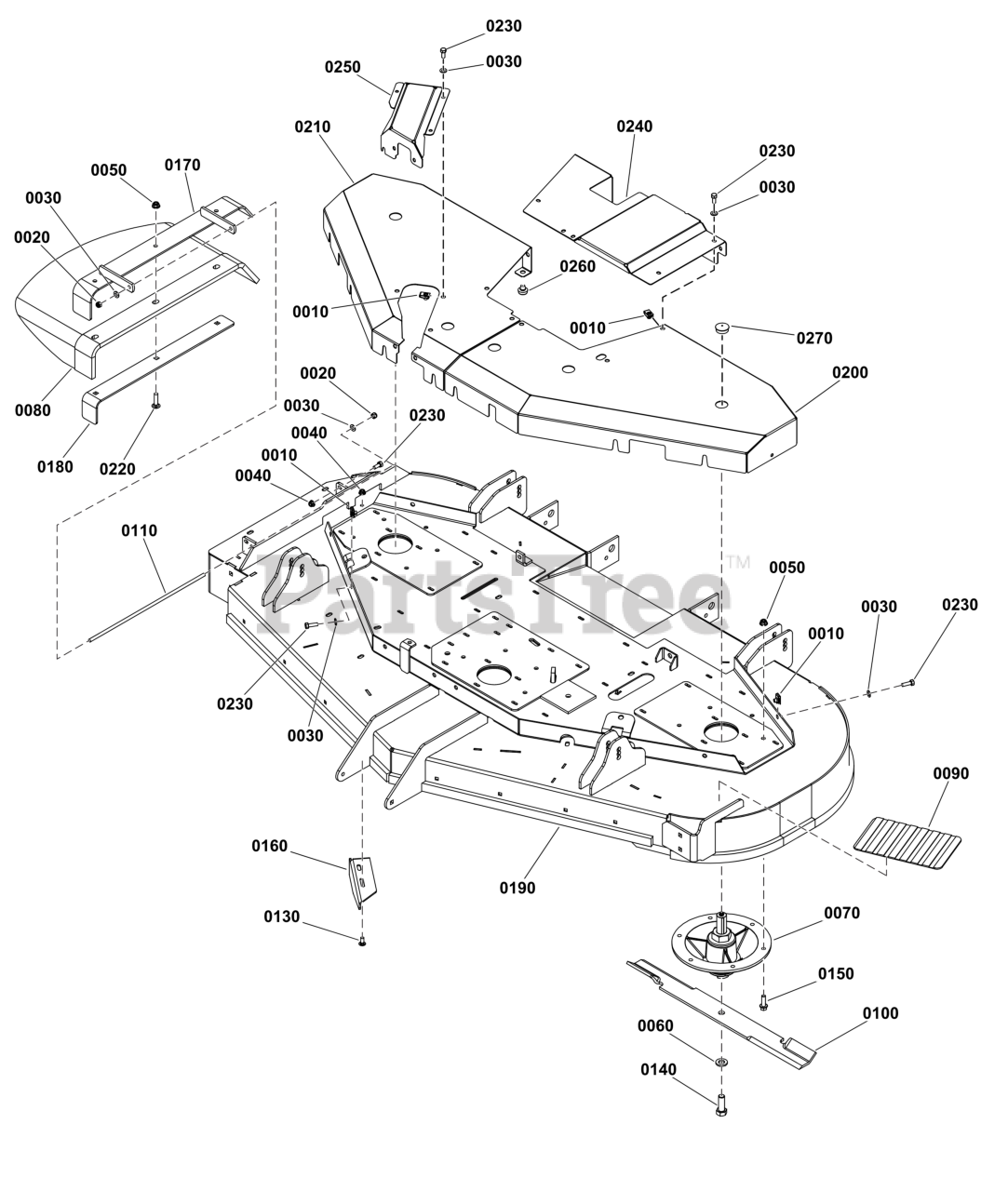

72" iCD+ Mower Deck Group - Housing, Covers and Spindles Parts Diagram

  • Title

0010

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 2 left!

0

0020

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 17

0

0030

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 10

0

0040

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0050

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5025477SM

WASHER, 5/8" YZ

$4.49

$

In Stock, Qty 20+

0

0070

Ferris 84003242

SPINDLE ASSEMBLY

$372.99

$

In Stock, only 2 left!

0

0080

Ferris 84011105

CHUTE, Discharge

$

$

Currently unavailable

0090

Ferris 5101005SM

SAFETY WALK

$16.99

$

In Stock, only 2 left!

0

0100

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

Note: (Set of 3 blades)

$113.99

$

Usually ships in 2-12 days

0

0110

Ferris 5061300FS

ROD
(Superseded to 5061300SM)

$14.99

$

In Stock, only 2 left!

0

0130

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 20+

0

0140

Ferris 770136

BOLT
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm))

$4.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025390X10FS

BOLT

Note: (Torque spindle mounting bolt to 30 ft-lbs (41 Nm))

$2.99

$

Usually ships in 2-12 days

0

0160

Ferris 5407876AYP

DEFLECTOR

$22.99

$

Usually ships in 2-12 days

0

0170

Ferris 84003246

FRAME, CHUTE

$89.99

$

Usually ships in 2-12 days

0

0180

Ferris 84003245

PLATE, SUPPORT

$29.99

$

In Stock, Qty 5

0

0190

DECK SHELL w/Decals

Note: (North American Models)

$

$

Not available

0190

DECK SHELL w/Decals

Note: (Export Models)

$

$

Not available

0200

Ferris 5421676BFS

GUARD, PULLEY

$133.99

$

Usually ships in 2-12 days

0

0210

Ferris 5421677BFS

GUARD, PULLEY

$101.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 2 left!

0

0240

Ferris 5421700BFS

GUARD, PULLEY

$73.99

$

Usually ships in 2-12 days

0

0250

Ferris 5421741BFS

PLATE

$42.99

$

Usually ships in 2-12 days

0

0260

Ferris 197546GS

MOUNT-VIBRATION

$8.49

$

In Stock, Qty 5

0

0270

Ferris 5023484SM

PLUG, PANEL, 1.25 - B

$4.49

$

In Stock, Qty 13

0
