IS 6200Z (5902162) - Ferris IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel Instrument Control Panel Group Parts Diagram

IS6200Z Series 72" Zero-Turn Mower, 48hp Caterpillar Diesel

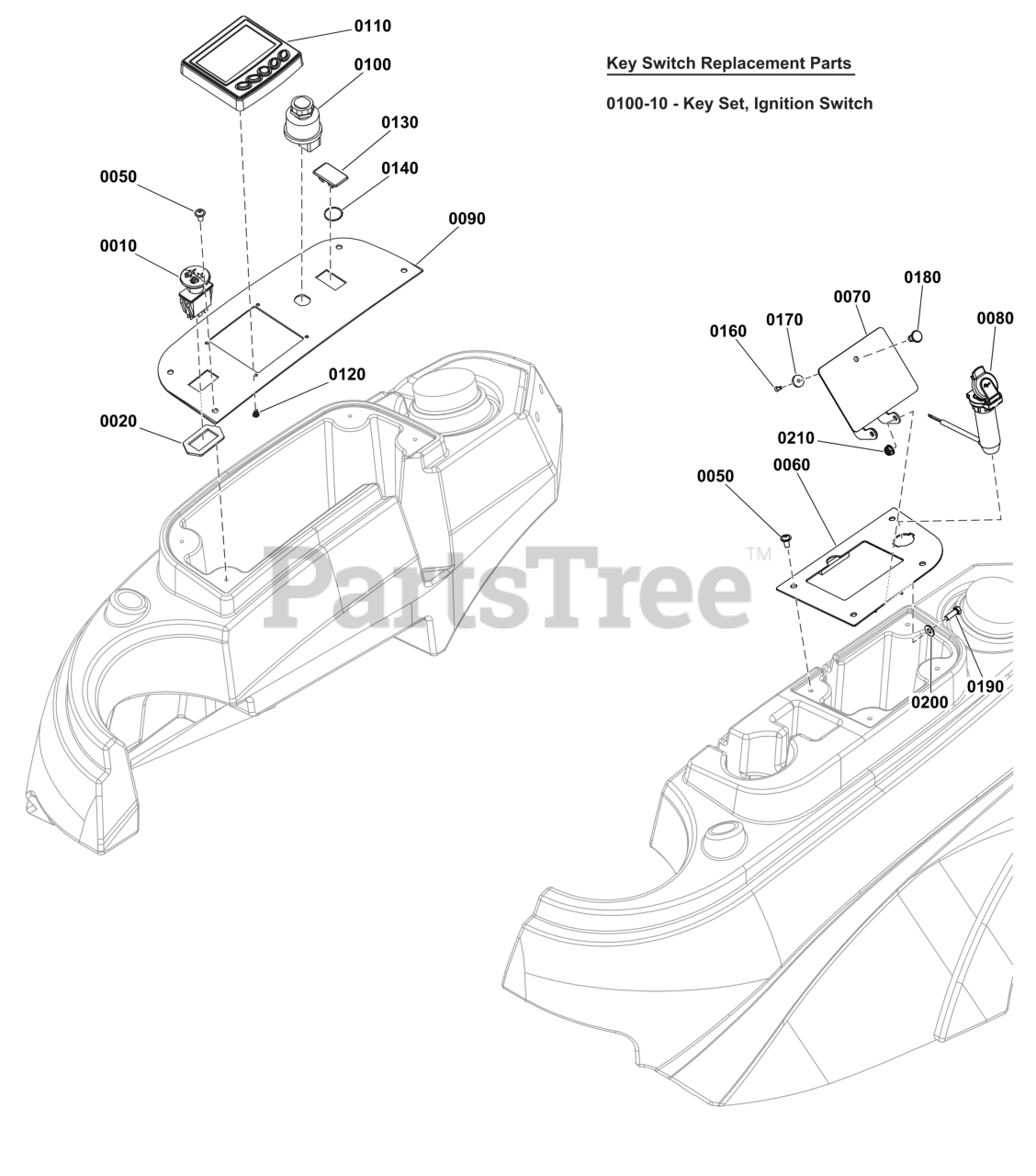

Instrument Control Panel Group Parts Diagram

  • Title

0010

Ferris 1722887SM

SWITCH-PTO PUSH

$35.99

$

In Stock, Qty 20+

0

0020

Ferris 5022222SM

RING, SWITCH RETAINER

$4.49

$

In Stock, only 1 left!

0

0050

Ferris 84002228

SCREW, FLANGE

$2.99

$

In Stock, only 2 left!

0

0060

Ferris 84011529

PANEL, Left

$

$

Currently unavailable

0070

Ferris 5421824AAFS

LID

$37.99

$

Usually ships in 2-12 days

0

0080

Ferris 84008798

USB Port

$

$

Currently unavailable

0090

Ferris 5420860AAFS

PANEL, CONTROL

$16.99

$

Usually ships in 2-12 days

0

0100

Ferris 5102962FS

SWITCH, Ignition

$104.99

$

Usually ships in 2-12 days

0

0100-10

Ferris 5102962X1

KEY SET, Ignition Switch, 3 position (SV)

$36.99

$

Usually ships in 2-12 days

0

0110

Ferris 5109122FS

DISPLAY

Note: (Includes item #0120 quantity 4.)

$1214.99

$

Usually ships in 2-12 days

0

0120

SCREW #8-32 X 5/16",PH, XT TH LOCKWASHER

$

$

Not available

0130

Ferris 1709188SM

PLUG, BLACK PLASTIC

$5.49

$

In Stock, Qty 7

0

0140

Ferris 5022269SM

O-RING, 7/8" ID X 1/1

$3.49

$

Usually ships in 2-12 days

0

0160

SCREW, #6-32 X 3/8, FH, PHILLIPS

$

$

Not available

0170

MAGNET, 6200 COMPARTMENT

$

$

Not available

0180

Ferris 84011528

KNOB

Note: (Includes items #0160 and 0170.)

$

$

Currently unavailable

0190

Ferris 703818

CAPSCREW, 1/4-20X0.5

$

$

Currently unavailable

0200

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0210

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 7

0
