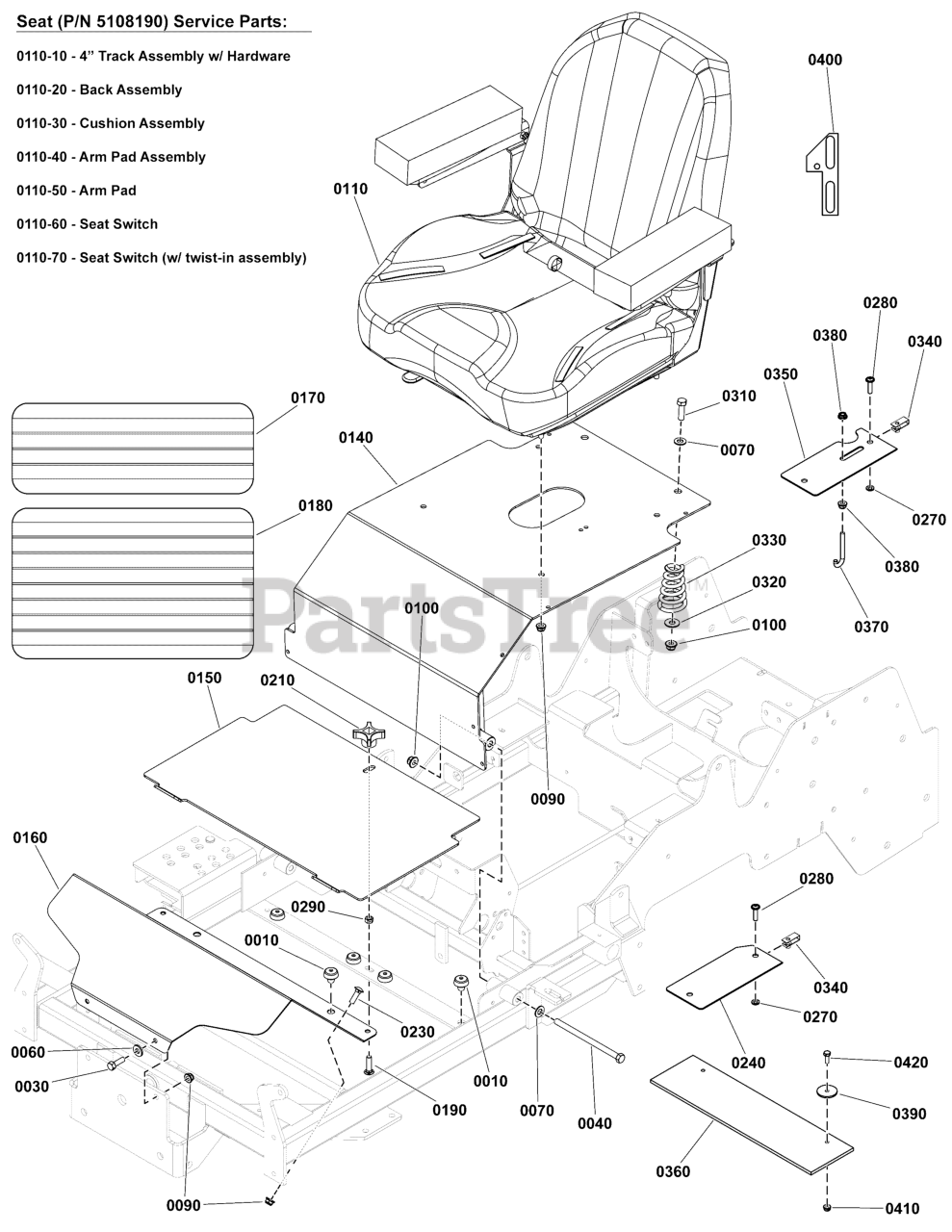

IS 700Z (5901310) - Ferris IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge Seat Mount & Floor Group - CE Models - S/N: 4000875837 and Above Parts Diagram

IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge

Seat Mount & Floor Group - CE Models - S/N: 4000875837 and Above Parts Diagram

  • Title

0010

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0070

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

0110

Ferris 5108190

SEAT, 907, W/ARM REST & SWITCH, NO BEAD
(Superseded to 84003662)

$751.99

$

Usually ships in 2-12 days

0

0110-10

Ferris 5104741X1

4" SL TRACK SET - 9" FLAT - W/HDWR

Note: (SV)

$154.99

$

Usually ships in 2-12 days

0

0110-20

Ferris 5108190X3

BACK ASSEMBLY

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0110-30

Ferris 5108190X4

CUSHION ASSEMBLY

Note: (SV)

$302.99

$

Usually ships in 2-12 days

0

0110-40

Ferris 5108190X2

ARM BRACKET W/PAD & HARDWARE

Note: (SV)

$240.99

$

Usually ships in 2-12 days

0

0110-50

Ferris 5108190X1

ARM PAD ASSEMBLY

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

0110-60

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

Usually ships in 2-12 days

0

0110-70

Ferris 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

0140

Ferris 5601060

ASSM, SEAT PLATE W/DECALS, EXP (5416349B)

$

$

Currently unavailable

0150

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

0160

Ferris 5413492B

PLATE, FLOOR, RIDGID EU - RED

$

$

Currently unavailable

0170

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 2 left!

0

0180

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

In Stock, only 1 left!

0

0210

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0230

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

0240

Ferris 5417101A

PLATE, SEAT BELT GUARD, LH-700 - BLK

$

$

Currently unavailable

0270

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

0290

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0310

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

0320

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 1 left!

0

0330

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

In Stock, only 2 left!

0

0340

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0350

Ferris 5416990A

PLATE, SEAT BELT GUARD, RH-700 - BLK

$

$

Currently unavailable

0360

Ferris 5104173

RUBBER, SEAT GUARD, IS700 CE

$

$

Currently unavailable

0370

Ferris 5025636

J-BOLT, 5/16-18 X 5, CZ
(Superseded to 5025636FS)

$9.99

$

Usually ships in 2-12 days

0

0380

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

0390

Ferris 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

$3.99

$

Usually ships in 2-12 days

0

0400

PLATE, THROTTLE STOP

$

$

Not available

0410

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0420

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0
