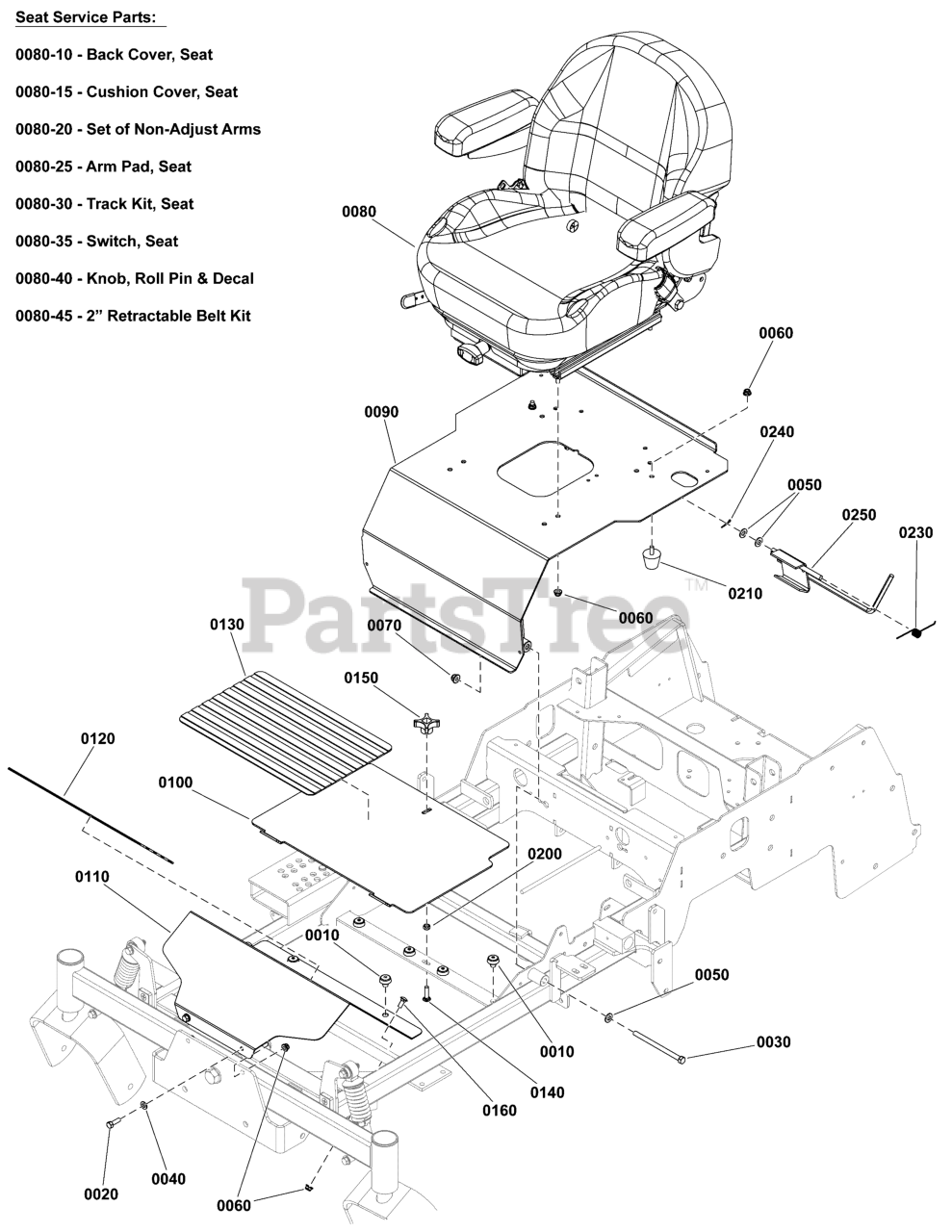

IS 700Z (5902108) - Ferris IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge Seat Mount and Floor Group S/N: 4001827762 and Above Parts Diagram

IS700Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Side-Discharge

Seat Mount and Floor Group S/N: 4001827762 and Above Parts Diagram

  • Title

0010

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$8.49

$

In Stock, Qty 5

0

0020

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

0030

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0050

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0080

Ferris 5109530

SEAT, 110 SUSPENSION, W/ BELTS
(Superseded to 84006403)

$1434.99

$

Usually ships in 2-12 days

0

0080-10

Ferris 84005183

COVER, Back

Note: (SV)

$253.99

$

Usually ships in 2-12 days

0

0080-15

Ferris 84005184

CUSHION, Seat

Note: (SV)

$210.99

$

In Stock, only 1 left!

0

0080-20

Ferris 5108520X5

SET OF NON-ADJUST ARMS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0080-25

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0080-30

Ferris 5108520X1

TRACK KIT, SEAT

Note: (SV)

$165.99

$

Usually ships in 2-12 days

0

0080-35

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0080-40

Ferris 84005187

KNOB, Adjuster

Note: (SV)

$37.99

$

Usually ships in 2-12 days

0

0080-45

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0090

Ferris 5601294

SEAT PLATE W/DECALS, 800, ST LTCH

Note: (USA Models)

$350.99

$

Usually ships in 2-12 days

0

0090

Ferris 5601295

SEAT PLATE W/DECALS, 800, ST LATCH AUS

Note: (Ansi-Export Models)

$512.99

$

Usually ships in 2-12 days

0

0100

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$86.99

$

Usually ships in 2-12 days

0

0110

Ferris 5410297B

PLATE, FLOOR, RIDGID, IS700 - RED
(Superseded to 5410297BFS)

$99.99

$

Usually ships in 2-12 days

0

0120

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$19.99

$

In Stock, only 1 left!

0

0130

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$39.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

In Stock, only 2 left!

0

0150

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$14.99

$

In Stock, only 4 left!

0

0160

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0200

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0210

Ferris 5106763

BUMPER, RUBBER, 5/16-18, 60 DURO
(Superseded to 84003201)

$9.49

$

In Stock, only 3 left!

0

0230

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.99

$

Usually ships in 2-12 days

0

0240

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

0250

Ferris 5420950AA

WELD, SEAT LATCH HOOK, 700/800 - BLK
(Superseded to 84006564)

$55.99

$

Usually ships in 2-12 days

0
