IS Z (5901079) - Ferris ISZ Series 61" Zero-Turn Mower, 25hp Kohler (SN: 2269 & Above) Electrical Group - Kohler Parts Diagram

ISZ Series 61" Zero-Turn Mower, 25hp Kohler

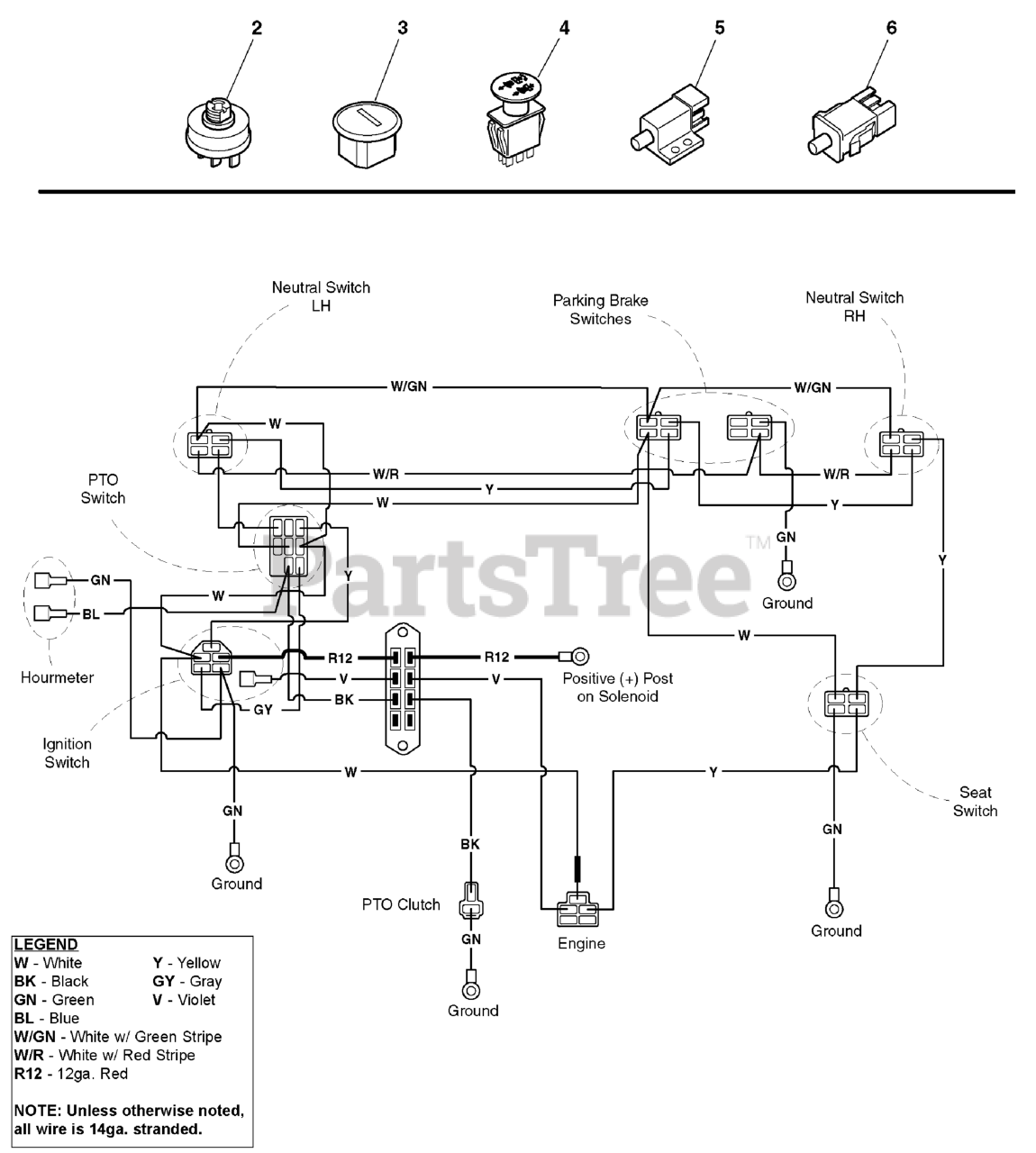

Electrical Group - Kohler Parts Diagram

  • Title

1

Ferris 5045954

ISZ25K Wire Harness

$

$

Currently unavailable

2

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

3

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

4

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

5

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 10

0

6

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

7

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5044876

CABLE, Positive (+) Battery
(Superseded to 5044876SM)

Note: (Not Shown)

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5044014

CABLE, Ground
(Superseded to 5044014SM)

Note: (between engine block & frame, not shown)

$14.99

$

Usually ships in 2-12 days

0

10

Ferris 5021603

FUSE, 20A
(Superseded to 5021603SM)

Note: (Not Shown)

$4.99

$

In Stock, only 2 left!

0
